Brand: Panduit
|
SKU:
FR12USB
Panduit FR12USB | FIBERRUNNER UNDERFLOOR PEDESTAL, FOR 12X4 SYSTEM, BLACK
Regular price
$129.69
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FR12USB | FIBERRUNNER UNDERFLOOR PEDESTAL, FOR 12X4 SYSTEM,...
Regular price
$129.69
Unit price
Description
Description
Panduit FR12USB | FIBERRUNNER UNDERFLOOR PEDESTAL, FOR 12X4 SYSTEM, BLACK

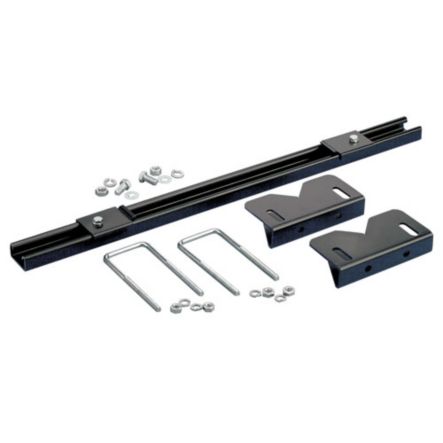

Used to support the 12x4 system by attaching to underfloor pedestals. (Contains all necessary hardware.) Use on pedestals up to 2" in diameter. The pre-assembled slide clamps enable fast assembly to channel. Use 7/16" nut driver on slide clamps.
Specifications
Specifications
Panduit - FR12USB - Product Categories
- Wire Routing, Management & Protection
- Fiber Routing Mounting Brackets & Hardware
Panduit - FR12USB - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FR12USB |
| Item Description | FIBERRUNNER UNDERFLOOR PEDESTAL, FOR 12X4 SYSTEM, BLACK |
| Application | (1) The Fiberrunner 12X4 Routing System is a System of Channel, Fittings and Brackets Designed to Segregate, Route, and Protect Fiber Optic and High PerformanceCopper Cabling, (2) It is Suited for Data Center Applicationswhere Cable is Routed from Distr |
| Product Type | Underfloor Pedestal |
| Sub Brand | FiberRunner |
| Color | Black |
| For Use With | Fast Assembly to Channel |
| Includes | (1) Underfloor Strut Assembly Containing: (1) Underfloor Strut, (2) FiberRunner Strut Clips, (2) 1/4-20 Channel Nut, (2) 1/4 Helical Spring Lockwasher, (2) 1/4-20 x7/8 Hex Head Machine Screw, (2) Underfloor Support Brackets, (2) 3/8-16 Hex Nut, (2) 3/8-16 |
| Material | Steel |
| Number of Pieces | 21 |
| Overall Height (In.) | 1.19 |
| Overall Height (mm) | 30.2 |
| Overall Length (In.) | 24 |
| Overall Length (mm) | 609.6 |
| Overall Width (In.) | 1.62 |
| Overall Width (mm) | 41.1 |
| Standards Met | UL Listed to 2024 Optical Fiber Cable Routing Assemblies, Compliant with the Applicable Tests in Telcordia Gr-63-Core, Network Equipment Building Systems Level 3, LP-CSISPEC-FR |
| System Dimensions | 12x4 |
| Angle | 90° |
| Series Type | 12 x 4 FiberRunner Brackets |
Panduit - FR12USB - Package Information
| UPC | 07498383586 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.2106 |
| Standard. Ctn. Quantity | 0 |
| Standard. Ctn. Volume (cf) | 0.0000 |
Panduit - FR12USB - Videos
| Video 1 | Click to View |
|---|
