Panduit FR24TBE12 | FIBERRUNNER EXISTING THREADED ROD, 24X4 SYSTEM,...
Description
Description
Used to support the 24x4 system by spanning two 1/2" existing threaded rod drops. Can be installed from above or below. Bracket is secured to each threaded rod with two split nuts. The pre-assembled slide clamps enable fast assembly to channel. Use 7/16" nut driver on slide clamps.
Used to support the 24x4 system by spanning two 1/2"; existing threaded rod drops. Can be installed from above or below. Bracket is secured to each threaded rod with two split nuts. The pre-assembled slide clamps enable fast assembly to channel. Use 7/1 6"; nut driver on slide clamps.
Specifications
Specifications
Panduit - FR24TBE12 - Product Categories
- Wire Routing, Management & Protection
- Fiber Routing Mounting Brackets & Hardware
Panduit - FR24TBE12 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FR24TBE12 |
| Item Description | FIBERRUNNER EXISTING THREADED ROD, 24X4 SYSTEM, BLACK |
| Application | The Fiberrunner 24X4 Routing System is a System Of Channel, Fittings, Covers, and Brackets Designed to Route, Manage, and Protect Fiber Optic and High Performance Copper Cabling Above Network Racks and Cabinets Within Data Centers and Service Provider Fac |
| Product Type | Existing Threaded Rod |
| Sub Brand | FiberRunner |
| Color | Black |
| For Use With | Fast Assembly to Channel |

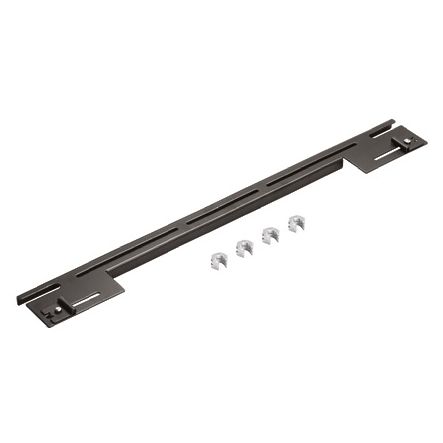

| Includes | (1) Bracket Assembly, (4) 1/2-13 Split Lock Nuts |
| Material | Steel |
| Number of Pieces | 5 |
| Overall Height (In.) | 0.86 |
| Overall Height (mm) | 21.8 |
| Overall Length (In.) | 32 |
| Overall Length (mm) | 812.8 |
| Overall Width (In.) | 3.9 |
| Overall Width (mm) | 99.1 |
| Standards Met | UL Listed to 2024 Optical Fiber Cable Routing Assemblies, Compliant with the Applicable Tests in Telcordia Gr-63-Core, Network Equipment Building Systems Level 3, LP-CSISPEC-FR |
| System Dimensions | 24x4 |
| Angle | 90° |
| Compatible Threaded Rod Size (In.) | 0.5 |
| Compatible Threaded Rod Size (mm) | 12.7 |
| Series Type | 24 x 4 FiberRunner Brackets |
Panduit - FR24TBE12 - Package Information
| UPC | 07498311698 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.1338 |
| Standard. Ctn. Quantity | 0 |
| Standard. Ctn. Volume (cf) | 0.0000 |
