Panduit FR24TBN12M | FIBERRUNNER NEW THREADED ROD, 24X4 SYSTEM, BLACK
Regular price
$237.77
Unit price
Brand: Panduit
|
SKU:
9955637
Regular price
$237.77
Unit price
Description
Description
Panduit FR24TBN12M | FIBERRUNNER NEW THREADED ROD, 24X4 SYSTEM, BLACK

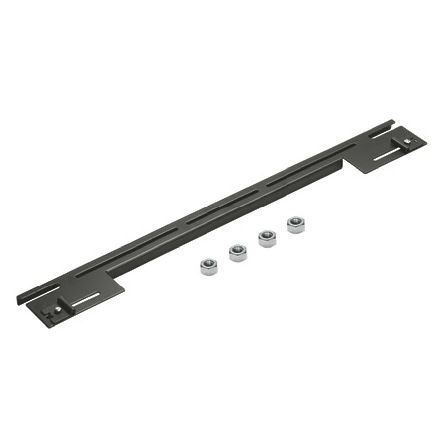

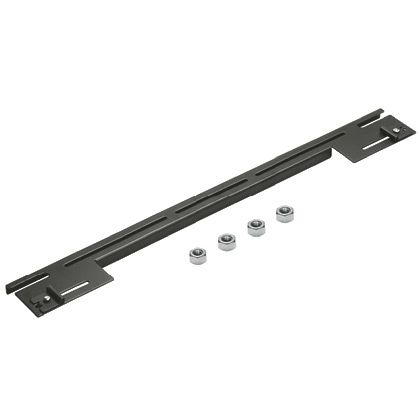

Used to support the 24x4 system from new threaded rod installations. Bracket is secured to threaded rod with two nuts. The pre-assembled slide clamps enable fast assembly to channel. Use 7/16" nut driver on slide clamps.
Panduit FR24TBN12M Bracket, Trapeze, 24x4 For12mm, New Threaded Rod
Specifications
Specifications
Panduit - FR24TBN12M - Product Categories
- Wire Routing, Management & Protection
- Fiber Routing Mounting Brackets & Hardware
Panduit - FR24TBN12M - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FR24TBN12M |
| Item Description | FIBERRUNNER NEW THREADED ROD, 24X4 SYSTEM, BLACK |
| Application | The Fiberrunner 24X4 Routing System is a System Of Channel, Fittings, Covers, and Brackets Designed to Route, Manage, and Protect Fiber Optic and High Performance Copper Cabling Above Network Racks and Cabinets Within Data Centers and Service Provider Fac |
| Product Type | New Threaded Rod |
| Sub Brand | FiberRunner |
| Color | Black |
| For Use With | Fast Assembly to Channel |
| Includes | (1) Bracket Assembly, (4) 1/2 Helical Spring Lockwashers, (4) M12x1.75 Hex Nuts |
| Material | Steel |
| Number of Pieces | 9 |
| Overall Height (In.) | 0.86 |
| Overall Height (mm) | 21.8 |
| Overall Length (In.) | 32 |
| Overall Length (mm) | 812.8 |
| Overall Width (In.) | 3.9 |
| Overall Width (mm) | 99.1 |
| Standards Met | UL Listed to 2024 Optical Fiber Cable Routing Assemblies, Compliant with the Applicable Tests in Telcordia Gr-63-Core, Network Equipment Building Systems Level 3, LP-CSISPEC-FR |
| System Dimensions | 24x4 |
| Angle | 90° |
| Compatible Threaded Rod Size (In.) | 0.5 |
| Compatible Threaded Rod Size (mm) | 12.7 |
| Series Type | 24 x 4 FiberRunner Brackets |
Panduit - FR24TBN12M - Package Information
| UPC | 07498312104 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.1397 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
Panduit - FR24TBN12M - Videos
| Video 1 | Click to View |
|---|
