Brand: Panduit
|
SKU:
378714

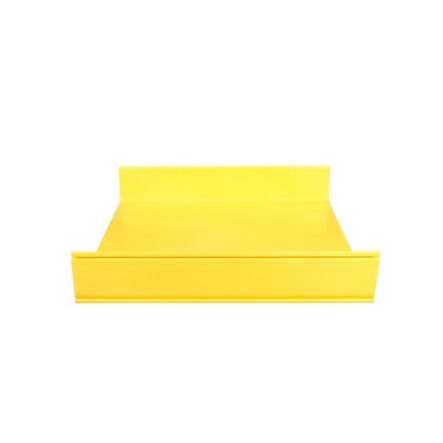

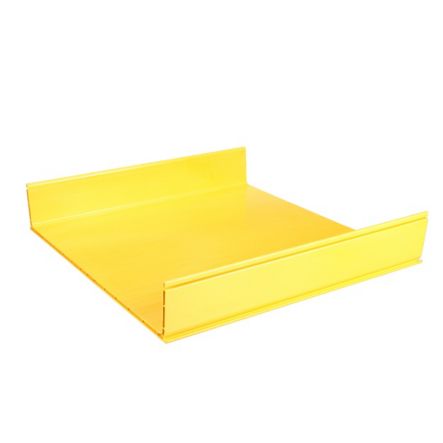

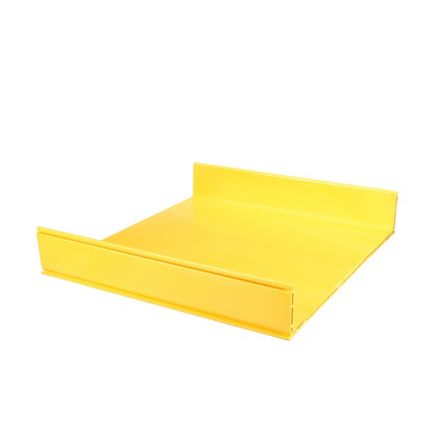

Panduit FR24X4YL10 | FIBERRUNNER CHANNEL, 24X4 SYSTEM, YELLOW
Regular price
$1,262.01
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FR24X4YL10 | FIBERRUNNER CHANNEL, 24X4 SYSTEM, YELLOW
Regular price
$1,262.01
Unit price
Description
Description
Panduit FR24X4YL10 | FIBERRUNNER CHANNEL, 24X4 SYSTEM, YELLOW
Used to carry cables horizontally throughout the system. Use QuikLock Coupler FRBC24X4YL to attach channel and/or fittings.
Panduit - FR24X4YL10 - Features
- Used to carry cables horizontally throughout the system. Use QuikLock(TM) Coupler FRBC24X4YL to attach channel and/or fittings.
- Robust, large capacity 24x4 system ideal for use with large cable counts
- Multiple spillout options provide versatility to mate to various equipment and rack configurations
- QuikLock(TM) couplers and brackets reduce system installation time dramatically
- Channel, covers, fittings and other non-metallic system components made from V-0 flame class rated material
- Compatible with all sizes of PANDUIT(TM) FiberRunner(TM) and PANDUIT(TM) Fiber-Duct(TM) Routing Systems, cable management, and racks
- Compliant with the applicable tests in Telcordia GR-63-CORE Network Equipment Building Systems (NEBS) Level 3
- For other standard colors replace suffix YL (Yellow) with OR (Orange) or BL (Black)
Specifications
Specifications
Panduit - FR24X4YL10 - Product Categories
- Wire Routing, Management & Protection
- Fiber Routing Channel & Covers
Panduit - FR24X4YL10 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FR24X4YL10 |
| Item Description | FIBERRUNNER CHANNEL, 24X4 SYSTEM, YELLOW |
| Application | (1)The Fiber-Runner 24X4Routing Systems are Comprised of Channel, Fittings, and Brackets Designed to Segregate, Route, and Protect Fiber Optic Cable and Copper Cabling.(2) It is Suited for Data Center Applications where Cable is Routed from Distribution |
| Product Type | Channel |
| Channel Material | Rigid PVC |
| Color | Yellow |
| For Use With | FRBC24X4YL,FRCV24YL10 |
| Flammability Rating | 94V-0 |
| Material | PVC |
| Overall Height (In.) | 4.48 |
| Overall Height (mm) | 113.4 |
| Sub Brand | FiberRunner |
| Overall Length (ft.) | 10 |
| Overall Length (m) | 3 |
| Overall Width (In.) | 25.38 |
| Overall Width (mm) | 644.6 |
| Standards Met | UL Listed to 2024A,RoHS Compliant |
| System Dimensions | 24x4 |
| Part Features | Rigid one-piece construction, Channel length, Channel covers, Fitting covers and Cable protection |
Panduit - FR24X4YL10 - Package Information
| UPC | 07498311155 |
|---|---|
| Standard Package Quantity | 10 |
| Standard Package Volume (cf) | 5.0184 |
| Standard Ctn. Quantity | 20 |
| Standard Ctn. Volume (cf) | 10.0369 |
Panduit - FR24X4YL10 - Videos
| Video 1 | Click to View |
|---|---|
| Video 2 | Click to View |
Documents and Downloads
Documents and Downloads
