Panduit FR6ACB12 QL ADJUSTABLE C BRACKET 1/2 INCH
Regular price
$56.14
Unit price
Brand: Panduit
|
SKU:
FR6ACB12
Regular price
$56.14
Unit price
Description
Description

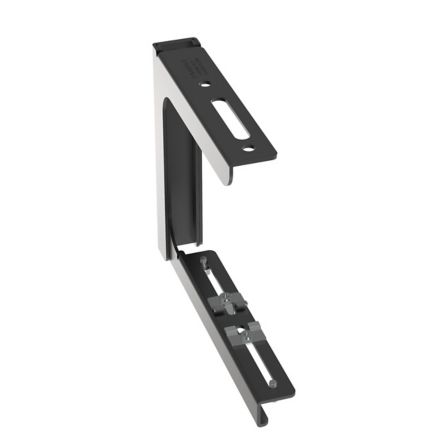

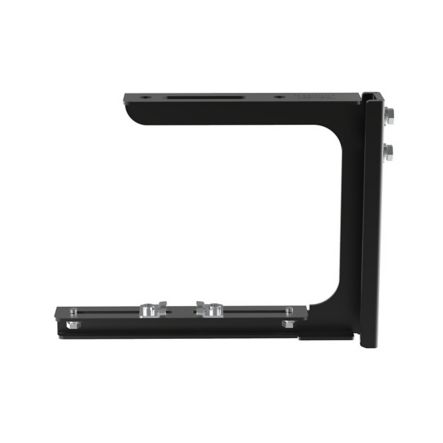

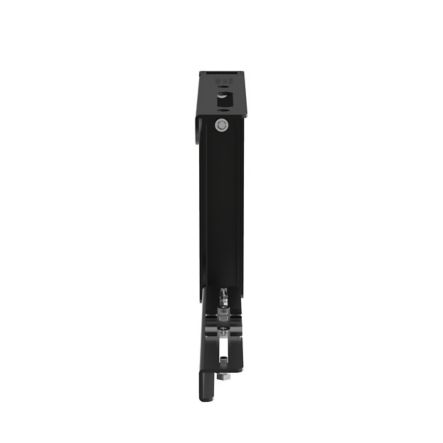

Panduit FR6ACB12 | FiberRunner Adjustable Cabinet Bracket
The FiberRunner QuikLock Adjustable Cabinet Bracket is used in cable routing systems to support the 6x4 or 4x4 systems by attaching to the top of the cabinets. It features two-position height adjustments to accommodate systems with or without a hinged cover. This helps allow runs to be leveled over uneven cabinet heights. It is secured to the cabinet frame with trough bolts (not included). The pre-assembled slide clamps enable fast assembly to the channel.
Specifications
Specifications
Panduit - FR6ACB12 - Product Categories
- Wire Routing, Management & Protection
- Fiber Routing Mounting Brackets & Hardware
Panduit - FR6ACB12 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FR6ACB12 |
| Item Description | FiberRunner Adjustable Cabinet Bracket |
| Application | (1) The Fiberrunner 6X4 Routing System is a System of Channel, Fittings and Brackets Designed to Segregate, Route, and Protect Fiber Optic and High PerformanceCopper Cabling. (2) it is Suited for Data Center Applications |
| Product Type | Top Support Adjustable "C" |
| Sub Brand | FiberRunner |
| Color | Black |
| For Use With | Fast Assembly to Channel |
| Includes | (1) Bracket Assembly, (2) 1/2-13 Heavy Hex Nuts, (2) 1/2 Helical Spring LockWashers |
| Material | Steel |
| Number of Pieces | 5 |
| Overall Height (In.) | 8.72 |
| Overall Height (mm) | 221.5 |
| Overall Length (In.) | 11.24 |
| Overall Length (mm) | 285.5 |
| Overall Width (In.) | 1.66 |
| Overall Width (mm) | 42.2 |
| Standards Met | UL Listed to 2024 Optical Fiber Cable Routing Assemblies Compliant with the Applicable Tests in Telcordia Gr-63-Core Network Equipment Building Systems Level 3, LP-CSISPEC-FR |
| System Dimensions | 4x4, 6x4 |
| Compatible Threaded Rod Size (In.) | 0.5 |
| Compatible Threaded Rod Size (mm) | 12 |
| Series Type | 4 x 4 and 6 x 4 FiberRunner Brackets |
Panduit - FR6ACB12 - Package Information
| UPC | 07498383980 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.3299 |
| Standard. Ctn. Quantity | 0 |
| Standard. Ctn. Volume (cf) | 0.0000 |
Panduit - FR6ACB12 - Videos
| Video 1 | Click to View |
|---|
