Panduit FR6ACB12M | FIBERRUNNER TOP SUPPORT ADJUSTABLE "C"...
Description
Description

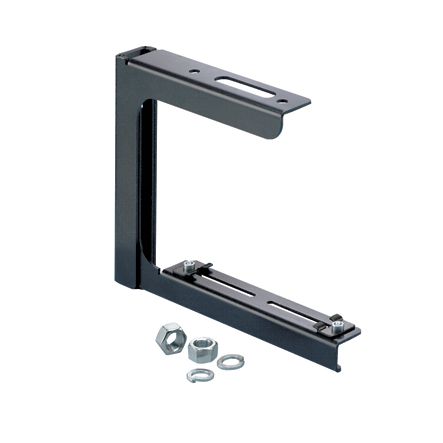

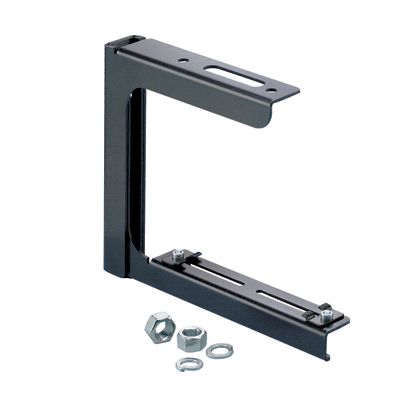

Used to support the 6x4 and 4x4 systems from any new threaded rod extending down directly from the ceiling, grid, or ladder rack system. Two position height adjustments to accommodate system with or without hinged cover. Bracket is secured to threaded rod with two nuts. The pre-assembled slide clamps enable fast assembly to channel. Use 7/16in nut driver on slide clamps, For 12mm threaded rod.
Panduit FiberRunner 4x4 and 6x4 Mounting Brackets - Cable tray sections mounting bracket - wall mountable - FR6ACB12M.
Specifications
Specifications
Panduit - FR6ACB12M - Product Categories
- Wire Routing, Management & Protection
- Fiber Routing Mounting Brackets & Hardware
Panduit - FR6ACB12M - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FR6ACB12M |
| Item Description | FIBERRUNNER TOP SUPPORT ADJUSTABLE "C", BLACK |
| Application | (1) The Fiberrunner 6X4 Routing System is a System of Channel, Fittings and Brackets Designed to Segregate, Route, and Protect Fiber Optic and High PerformanceCopper Cabling. (2) it is Suited for Data Center Applications |
| Product Type | Top Support Adjustable "C" |
| Sub Brand | FiberRunner |
| Color | Black |
| For Use With | Fast Assembly to Channel |
| Includes | (1) Bracket Assembly, (2) M12x1.75 Hex Nuts, (2) 1/2 Helical Spring LockWashers |
| Material | Steel |
| Number of Pieces | 5 |
| Overall Height (In.) | 8.72 |
| Overall Height (mm) | 221.5 |
| Overall Length (In.) | 11.24 |
| Overall Length (mm) | 285.5 |
| Overall Width (In.) | 1.66 |
| Overall Width (mm) | 42.2 |
| Standards Met | UL Listed to 2024 Optical Fiber Cable Routing Assemblies, Compliant with the Applicable Tests in Telcordia Gr-63-Core, Network Equipment Building Systems Level 3, LP-CSISPEC-FR |
| System Dimensions | 4x4, 6x4 |
| Angle | 90° |
| Compatible Threaded Rod Size (In.) | 0.47 |
| Compatible Threaded Rod Size (mm) | 12 |
| Series Type | 4 x 4 and 6 x 4 FiberRunner Brackets |
Panduit - FR6ACB12M - Package Information
| UPC | 07498383981 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.3299 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
Panduit - FR6ACB12M - Videos
| Video 1 | Click to View |
|---|
