Brand: Panduit
|
SKU:
277735

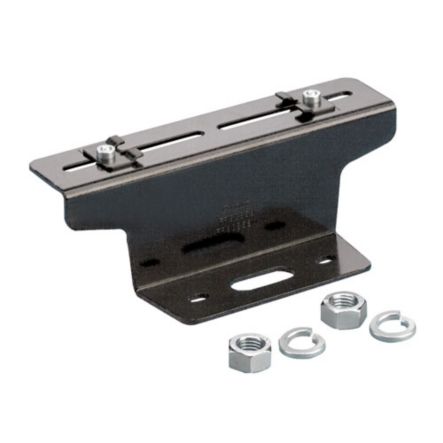

Panduit FR6CS12 Bracket, 1/2"; Threaded Rod Center Support QuikLock for 4"; x 4"; And 6"; x 4"; FiberRunner
Regular price
$66.58
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FR6CS12 Bracket, 1/2"; Threaded Rod Center Support Qui...
Regular price
$66.58
Unit price
Description
Description
Panduit FR6CS12 | FIBERRUNNER CENTER SUPPORT, FOR 1/2" THREADED ROD
Used to support the 6x4 and 4x4 systems from below with new threaded rod. Bracket is secured to threaded rod with two nuts. The pre-assembled slide clamps enable fast assembly to channel. Use 7/16in nut driver on slide clamps. Also can be secured directly to the top of cabinets, For 1/2in threaded rod.
Specifications
Specifications
Panduit - FR6CS12 - Product Categories
- Wire Routing, Management & Protection
- Fiber Routing Mounting Brackets & Hardware
Panduit - FR6CS12 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FR6CS12 |
| Item Description | FIBERRUNNER CENTER SUPPORT, FOR 1/2" THREADED ROD |
| Application | (1) The Fiberrunner 6X4 Routing System is a System of Channel, Fittings and Brackets Designed to Segregate, Route, and Protect Fiber Optic and High PerformanceCopper Cabling. (2) it is Suited for Data Center Applications |
| Product Type | Center Support |
| Sub Brand | FiberRunner |
| Color | Black |
| For Use With | Fast Assembly to Channel |
| Includes | (1) Bracket Assembly, (2) 1/2 Helical Spring Lockwashers, (2) 1/2-13 Heavy Hex Nuts |
| Material | Steel |
| Number of Pieces | 5 |
| Overall Height (In.) | 3 |
| Overall Height (mm) | 76.2 |
| Overall Length (In.) | 4 |
| Overall Length (mm) | 101.6 |
| Overall Width (In.) | 9 |
| Overall Width (mm) | 228.6 |
| Standards Met | UL Listed to 2024 Optical Fiber Cable Routing Assemblies, Compliant with the Applicable Tests in Telcordia Gr-63-Core, Network Equipment Building Systems Level 3, LP-CSISPEC-FR |
| System Dimensions | 4x4, 6x4 |
| Angle | 90° |
| Compatible Threaded Rod Size (In.) | 0.5 |
| Compatible Threaded Rod Size (mm) | 12.7 |
| Series Type | 4 x 4 and 6 x 4 FiberRunner Brackets |
Panduit - FR6CS12 - Package Information
| UPC | 07498383971 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.2003 |
| Standard. Ctn. Quantity | 10 |
| Standard. Ctn. Volume (cf) | 2.0027 |
Panduit - FR6CS12 - Videos
| Video 1 | Click to View |
|---|
Documents and Downloads
