Panduit FR6CS58M | Center Support | UPC - 07498383974
Regular price
$66.58
Unit price
Description
Description

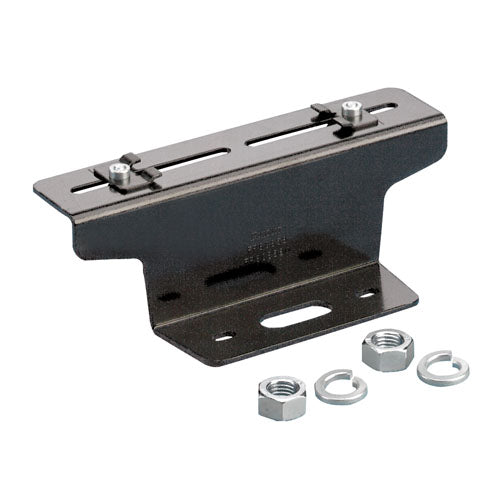

Panduit FiberRunner Center Support Bracket, For Use With: 4 x 4 in, 6 x 4 in FiberRunner Routing System, Steel, Black, 9 in L x 4 in W x 3 in H
Features + Benefits
- Bracket is secured to threaded rod with two nuts
- The pre-assembled slide clamps enable fast assembly to channel
- Use 7/16 in nut driver on slide clamps
Panduit FR6CS58M | Center Support | UPC - 07498383974 Key Specs
| Application | (1) The Fiberrunner 6X4 Routing System is a System of Channel, Fittings and Brackets Designed to Segregate, Route, and Protect Fiber Optic and High Performance Copper Cabling. (2) it is Suited for Data Center Applications |
| Product Type | Center Support |
| Sub Brand | FiberRunner |
| Color | Black |
| For Use With | Fast Assembly to Channel |
| Includes | (1) Bracket Assembly, (2) 5/8 Helical Spring Lockwashers, (2) M16x2 Hex Nuts |
| Material | Steel |
| Number of Pieces | 5 |
| Overall Height (In.) | 3 |
| Overall Height (mm) | 76.2 |
| Overall Length (In.) | 4 |
| Overall Length (mm) | 101.6 |
| Overall Width (In.) | 9 |
| Overall Width (mm) | 228.6 |
| Standards Met | UL Listed to 2024A Optical Fiber Cable Routing Assemblies Compliant with the Applicable Tests in Telcordia Gr-63-Core Network Equipment Building Systems Level 3, LP-CSISPEC-FR |
| System Dimensions | 4x4/6x4 |
| Angle | 90° |
| Compatible Threaded Rod Size (In.) | 0.63 |
| Compatible Threaded Rod Size (mm) | 16 |
| Series Type | 4 x 4 and 6 x 4 FiberRunner Brackets |
Panduit FR6CS58M | Center Support | UPC - 07498383974 Data Sheets
| Application Guides | FiberRunner Cable Routing System: SA-FRCB02 | Download and View |
| Catalog Cut Sheets | Catalog Cut Sheet - FR6TRBE12 Product Page | Download and View |
| Certifications | Third Party Certifications/Reports - FiberRunner 4x4 and 6x4 | Download and View |
Panduit FR6CS58M | Center Support | UPC - 07498383974 Environmental Information
| Panduit's RoHS Statement | Download and View |
