Brand: Panduit
|
SKU:
224994
Panduit FR6TRBE12 Bracket, Existing 1/2"; Threaded Rod QuikLock for 4"; x 4"; And 6"; x 4"; FiberRunner
Regular price
$66.58
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FR6TRBE12 Bracket, Existing 1/2"; Threaded Rod QuikLoc...
Regular price
$66.58
Unit price
Description
Description

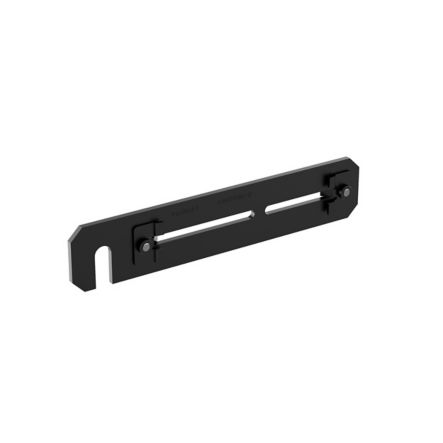

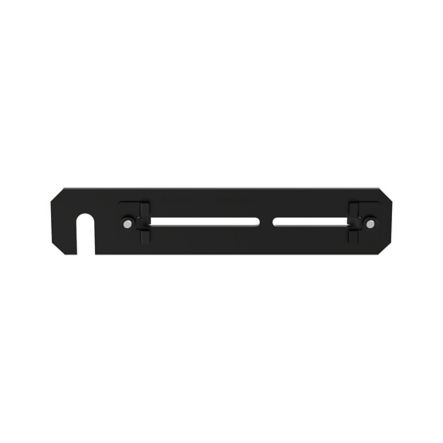

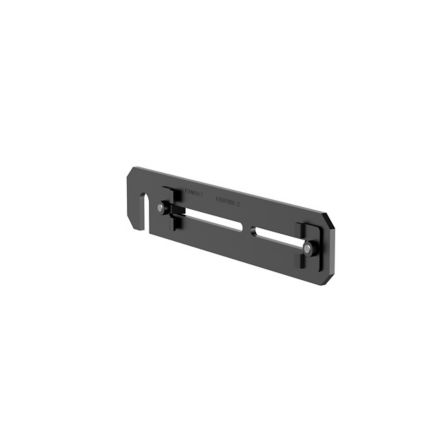

Panduit FR6TRBE12 | FiberRunner Existing Threaded Rod Bracket
The FiberRunner QuikLock Existing Threaded Rod Bracket is used to support the 6x4 and 4x4 systems from an existing threaded rod installation. It can be secured to a threaded rod with two split nuts. It is used for a 0.5 inch threaded rod. The pre-assembled slide clamps enable fast assembly to the channel.
Specifications
Specifications
Panduit - FR6TRBE12 - Product Categories
- Wire Routing, Management & Protection
- Fiber Routing Mounting Brackets & Hardware
Panduit - FR6TRBE12 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FR6TRBE12 |
| Item Description | FiberRunner Existing Threaded Rod Bracket |
| Application | (1) The Fiberrunner 6X4 Routing System is a System of Channel, Fittings and Brackets Designed to Segregate, Route, and Protect Fiber Optic and High PerformanceCopper Cabling. (2) it is Suited for Data Center Applications |
| Product Type | Existing Threaded Rod |
| Sub Brand | FiberRunner |
| Color | Black |
| For Use With | Fast Assembly to Channel |
| Includes | (1) Bracket Assembly, (2) 1/2-13 Split Lock Nuts |
| Material | Steel |
| Number of Pieces | 3 |
| Overall Height (In.) | 0.4 |
| Overall Height (mm) | 10.2 |
| Overall Length (In.) | 10 |
| Overall Length (mm) | 254 |
| Overall Width (In.) | 2 |
| Overall Width (mm) | 50.8 |
| Standards Met | UL Listed to 2024 Optical Fiber Cable Routing Assemblies Compliant with the Applicable Tests in Telcordia Gr-63-Core Network Equipment Building Systems Level 3, LP-CSISPEC-FR |
| System Dimensions | 4x4, 6x4 |
| Compatible Threaded Rod Size (In.) | 0.5 |
| Compatible Threaded Rod Size (mm) | 12.7 |
| Series Type | 4 x 4 and 6 x 4 FiberRunner Brackets |
Panduit - FR6TRBE12 - Package Information
| UPC | 07498379916 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0219 |
| Standard. Ctn. Quantity | 10 |
| Standard. Ctn. Volume (cf) | 0.2191 |
