Brand: Panduit
|
SKU:
224995

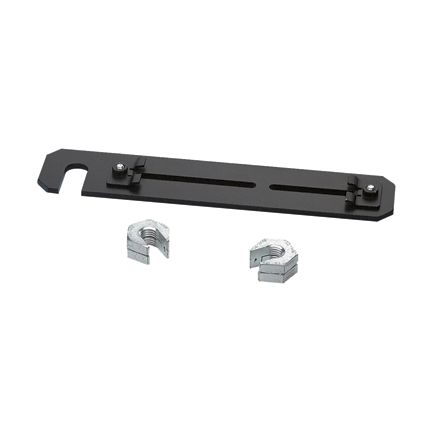

Panduit FR6TRBE58 Bracket, Existing 5/8"; Threaded Rod QuikLock for 4"; x 4"; And 6"; x 4"; FiberRunner
Regular price
$66.58
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FR6TRBE58 Bracket, Existing 5/8"; Threaded Rod QuikLoc...
Regular price
$66.58
Unit price
Description
Description
Panduit FR6TRBE58 | FIBERRUNNER EXISTING THREADED ROD, FOR 5/8" THREADED ROD
Used to support the 6x4 and 4x4 systems from existing threaded rod installations. Bracket is secured to threaded rod with two split nuts. The pre-assembled slide clamps enable fast assembly to channel. Use 7/16" nut driver on slide clamps, For 5/8" Threaded Rod.
Specifications
Specifications
Panduit - FR6TRBE58 - Product Categories
- Wire Routing, Management & Protection
- Fiber Routing Mounting Brackets & Hardware
Panduit - FR6TRBE58 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FR6TRBE58 |
| Item Description | FIBERRUNNER EXISTING THREADED ROD, FOR 5/8" THREADED ROD |
| Application | (1) The Fiberrunner 6X4 Routing System is a System of Channel, Fittings and Brackets Designed to Segregate, Route, and Protect Fiber Optic and High PerformanceCopper Cabling. (2) it is Suited for Data Center Applications |
| Product Type | Existing Threaded Rod |
| Sub Brand | FiberRunner |
| Color | Black |
| For Use With | Fast Assembly to Channel |
| Includes | (1) Bracket Assembly, (2) 5/8-11 Split Lock Nuts |
| Material | Steel |
| Number of Pieces | 3 |
| Overall Height (In.) | 0.4 |
| Overall Height (mm) | 10.2 |
| Overall Length (In.) | 10 |
| Overall Length (mm) | 254 |
| Overall Width (In.) | 2 |
| Overall Width (mm) | 50.8 |
| Standards Met | UL Listed to 2024 Optical Fiber Cable Routing Assemblies, Compliant with the Applicable Tests in Telcordia Gr-63-Core, Network Equipment Building Systems Level 3, LP-CSISPEC-FR |
| System Dimensions | 4x4, 6x4 |
| Angle | 90° |
| Compatible Threaded Rod Size (In.) | 0.63 |
| Compatible Threaded Rod Size (mm) | 15.9 |
| Series Type | 4 x 4 and 6 x 4 FiberRunner Brackets |
Panduit - FR6TRBE58 - Package Information
| UPC | 07498379917 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0218 |
| Standard. Ctn. Quantity | 10 |
| Standard. Ctn. Volume (cf) | 0.2178 |
Panduit - FR6TRBE58 - Videos
| Video 1 | Click to View |
|---|
