Brand: Panduit
|
SKU:
519658
Panduit FR6TRBE58M | FIBERRUNNER EXISTING THREADED ROD, FOR 16MM THREADED ROD
Regular price
$66.58
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FR6TRBE58M | FIBERRUNNER EXISTING THREADED ROD, FOR 16MM TH...
Regular price
$66.58
Unit price
Description
Description
Panduit FR6TRBE58M | FIBERRUNNER EXISTING THREADED ROD, FOR 16MM THREADED ROD

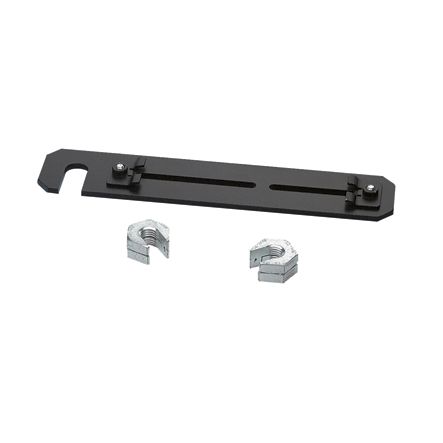

Used to support the 6x4 and 4x4 systems from existing threaded rod installations. Bracket is secured to threaded rod with two split nuts. The pre-assembled slide clamps enable fast assembly to channel. Use 7/16" nut driver on slide clamps, For 16mm Threaded Rod.
Panduit FiberRunner 4x4 and 6x4 QuikLock Existing Threaded Rod Bracket - Cable raceway bracket - black - FR6TRBE58M.
Specifications
Specifications
Panduit - FR6TRBE58M - Product Categories
- Wire Routing, Management & Protection
- Fiber Routing Mounting Brackets & Hardware
Panduit - FR6TRBE58M - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FR6TRBE58M |
| Item Description | FIBERRUNNER EXISTING THREADED ROD, FOR 16MM THREADED ROD |
| Application | (1) The Fiberrunner 6X4 Routing System is a System of Channel, Fittings and Brackets Designed to Segregate, Route, and Protect Fiber Optic and High PerformanceCopper Cabling. (2) it is Suited for Data Center Applications |
| Product Type | Existing Threaded Rod |
| Sub Brand | FiberRunner |
| Color | Black |
| For Use With | Fast Assembly to Channel |
| Includes | (1) Bracket Assembly, (2) M16x2 Split Lock Nuts |
| Material | Steel |
| Number of Pieces | 3 |
| Overall Height (In.) | 0.4 |
| Overall Height (mm) | 10.2 |
| Overall Length (In.) | 10 |
| Overall Length (mm) | 254 |
| Overall Width (In.) | 2 |
| Overall Width (mm) | 50.8 |
| Standards Met | UL Listed to 2024 Optical Fiber Cable Routing Assemblies, Compliant with the Applicable Tests in Telcordia Gr-63-Core, Network Equipment Building Systems Level 3, LP-CSISPEC-FR |
| System Dimensions | 4x4, 6x4 |
| Angle | 90° |
| Compatible Threaded Rod Size (In.) | 0.63 |
| Compatible Threaded Rod Size (mm) | 16 |
| Series Type | 4 x 4 and 6 x 4 FiberRunner Brackets |
Panduit - FR6TRBE58M - Package Information
| UPC | 07498382967 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0219 |
| Standard Ctn. Quantity | 10 |
| Standard Ctn. Volume (cf) | 0.2191 |
