Brand: Panduit
|
SKU:
10057478
Panduit FRDDSHC6LBL | FIBERRUNNER DUAL DOWNSPOUT FIBERRUNNER , FOR 6" X 4" FITTING
Regular price
$125.37
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FRDDSHC6LBL | FIBERRUNNER DUAL DOWNSPOUT FIBERRUNNER , FOR ...
Regular price
$125.37
Unit price
Description
Description
Panduit FRDDSHC6LBL | FIBERRUNNER DUAL DOWNSPOUT FIBERRUNNER , FOR 6" X 4" FITTING

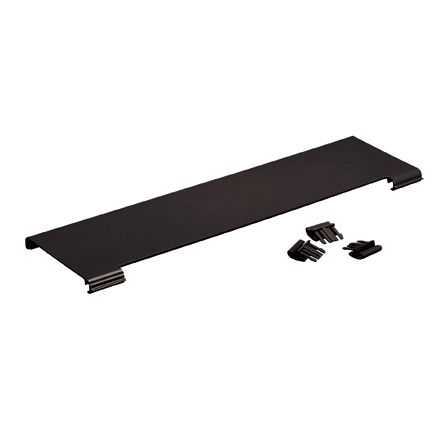

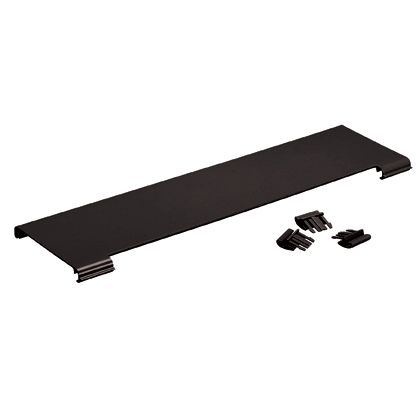

The FiberRunner is used to fully enclose the 6x4 dual downspout fitting FRDDS6X4LBL. The cover is attached to the fitting base with three hinge clips. The hinge clips allow the hinged cover to rotate to a fully closed position and an open position greater than 90°.
Panduit FRDDSHC6LBL Fitting, Dual Downspout cover, 6"x4" (150mmx100mm), yl Lszh
Specifications
Specifications
Panduit - FRDDSHC6LBL - Product Categories
- Wire Routing, Management & Protection
- Fiber Routing Spillouts
Panduit - FRDDSHC6LBL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FRDDSHC6LBL |
| Item Description | FIBERRUNNER DUAL DOWNSPOUT FIBERRUNNER , FOR 6" X 4" FITTING |
| Application | Data Centers and Telco Central Offices |
| Product Type | Dual Downspout Cover |
| Sub Brand | FiberRunner |
| Bend Radius (In.) | 2 |
| Bend Radius (mm) | 50.8 |
| Material | PC/ABS |
| Overall Height (In.) | 0.78 |
| Overall Height (mm) | 19.8 |
| Overall Length (In.) | 6.77 |
| Overall Length (mm) | 172 |
| Overall Width (In.) | 23.5 |
| Overall Width (mm) | 596.9 |
| Standards Met | RoHS Compliant, UL Listed to 2024A Optical Fiber Cable Routing Assemblies Compliant with the applicable tests in Telcordia GR-63-CORE Network Equipment Building Systems Level 3 |
| System Dimensions | 6x4 |
| Color | Black |
| Components | SPILLOUTS / DOWNSPOUTS |
| Finish | BLACK |
| Material | PLASTIC |
| Type | CABLE ROUTING / WIRING DUCT |
| UNSPSC Code | 39131712 |
Panduit - FRDDSHC6LBL - Package Information
| UPC | 61305676874 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.1309 |
| Standard Ctn. Quantity | 5 |
| Standard Ctn. Volume (cf) | 0.6545 |
Panduit - FRDDSHC6LBL - Videos
| Video 1 | Click to View |
|---|
