Brand: Panduit
|
SKU:
545365

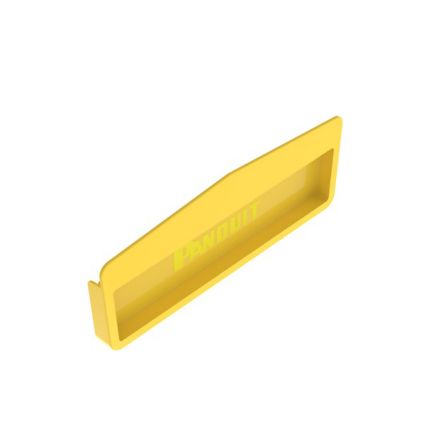

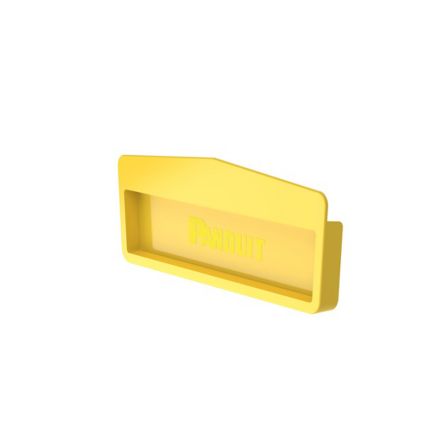

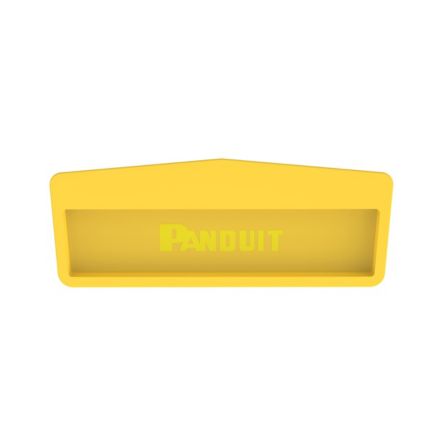

Panduit FREC12X4YL | FiberRunner End Cap Fitting, 12x4, Yellow
Regular price
$34.79
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FREC12X4YL | FiberRunner End Cap Fitting, 12x4, Yellow
Regular price
$34.79
Unit price
Description
Description
Panduit FREC12X4YL | FiberRunner End Cap Fitting, 12x4, Yellow
The FiberRunner End Cap Fitting is used in cable management to close off open ends of the channel or fittings. The FiberRunner End Cap Fitting is a push-on installation and does not require a coupler.
Panduit FiberRunner 12x4 End Cap Fitting - Cable raceway end cap - yellow - FREC12X4YL.
Specifications
Specifications
Panduit - FREC12X4YL - Product Categories
- Wire Routing, Management & Protection
- Fiber Routing Bends, Crosses, Tees & End Caps
Panduit - FREC12X4YL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FREC12X4YL |
| Item Description | FiberRunner End Cap Fitting, 12x4, Yellow |
| Application | Segregate, Route, and Protect Fiber Optic Cable and Copper Cabling. It is Suited for Data Center Applications where Cable is Routed from Distribution Areas to Equipment Cabinets or Racks. It is Used in Telco Central Offices to Route Fiber Optic Jumper Cables |
| Product Type | End Cap |
| Sub Brand | FiberRunner |
| Bend Radius (In.) | 2 |
| Bend Radius (mm) | 50.8 |
| Channel Material | Rigid PVC |
| Color | Yellow |
| Fitting Type | End Cap |
| Fitting Material | ABS |
| For Use With | 4x4 |
| Material | ABS |
| Overall Height (In.) | 5.28 |
| Overall Height (mm) | 134.1 |
| Overall Length (In.) | 0.94 |
| Overall Length (mm) | 23.9 |
| Overall Width (In.) | 13.79 |
| Overall Width (mm) | 350.3 |
| Standards Met | RoHS Compliant, UL Listed to 2024A Optical Fiber Cable Routing Assemblies Compliant with the applicable tests in Telcordia GR-63-CORE Network Equipment Building Systems Level 3 |
| System Dimensions | 12x4 |
Panduit - FREC12X4YL - Package Information
| UPC | 07498383521 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0838 |
| Standard Ctn. Quantity | 5 |
| Standard Ctn. Volume (cf) | 0.4190 |
Panduit - FREC12X4YL - Videos
| Video 1 | Click to View |
|---|
