Brand: Panduit
|
SKU:
9992104
Panduit FRFWC12X4LYL | FiberRunner 4-Way Cross Fitting, 12x4, Yellow
Regular price
$528.94
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FRFWC12X4LYL | FiberRunner 4-Way Cross Fitting, 12x4, Yellow
Regular price
$528.94
Unit price
Description
Description

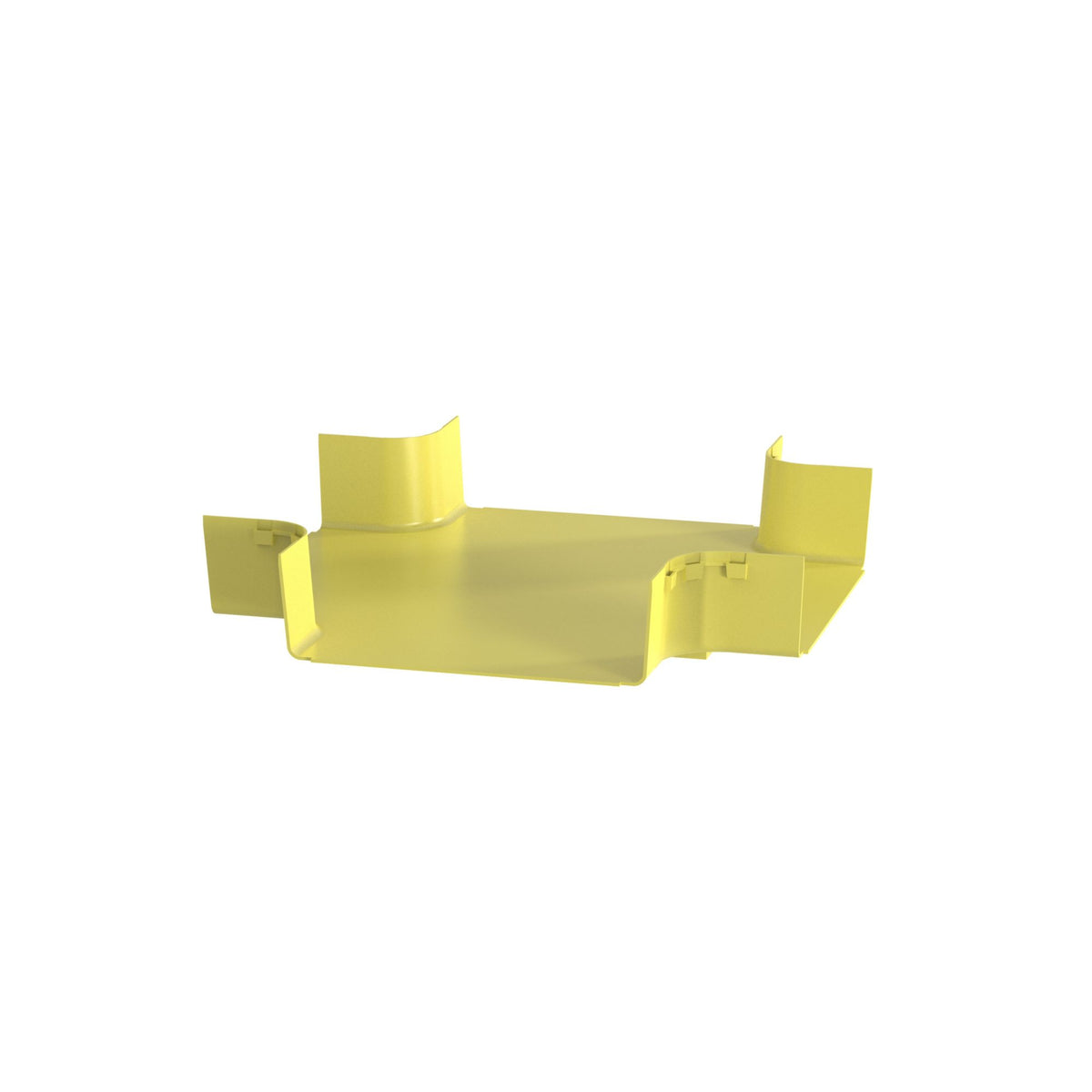

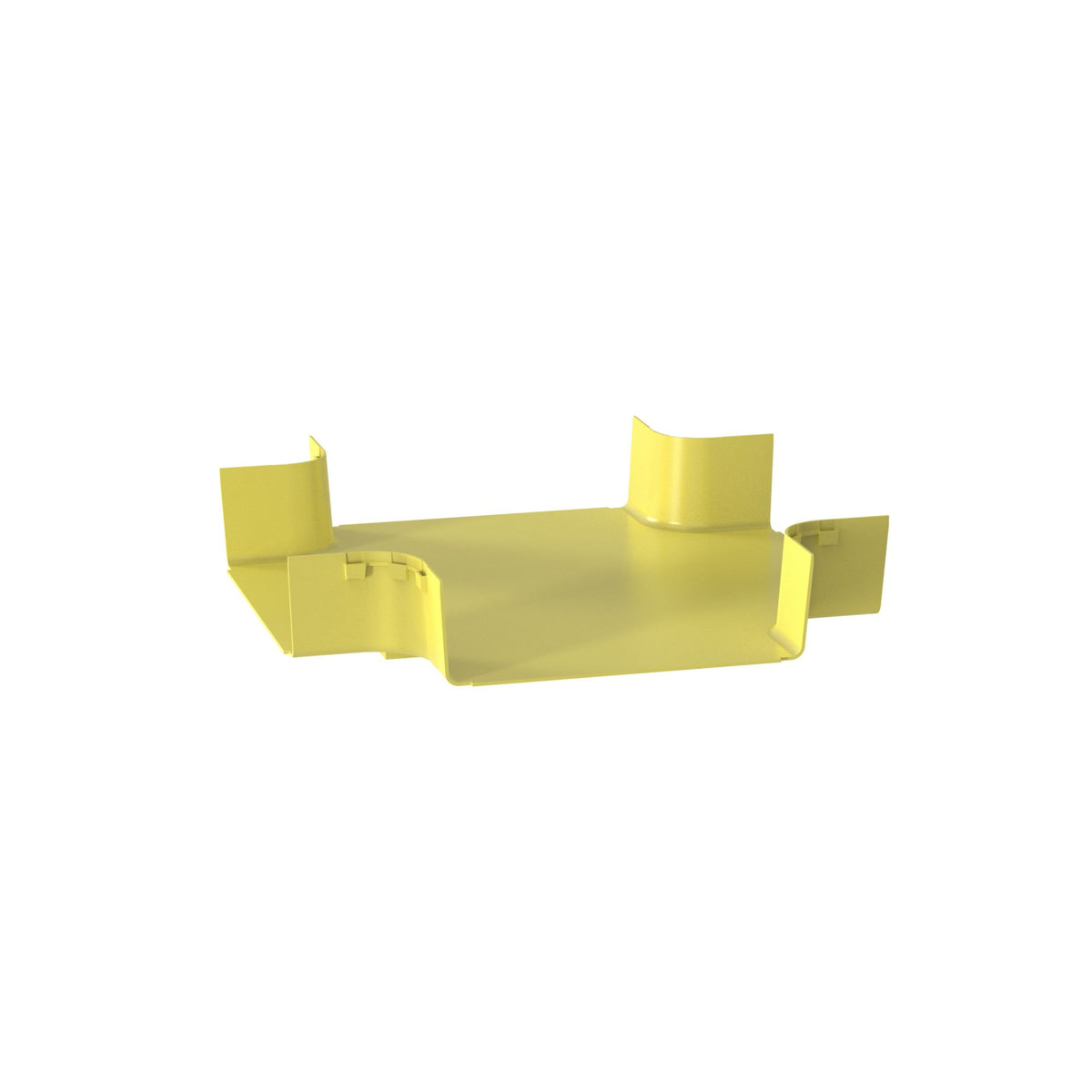

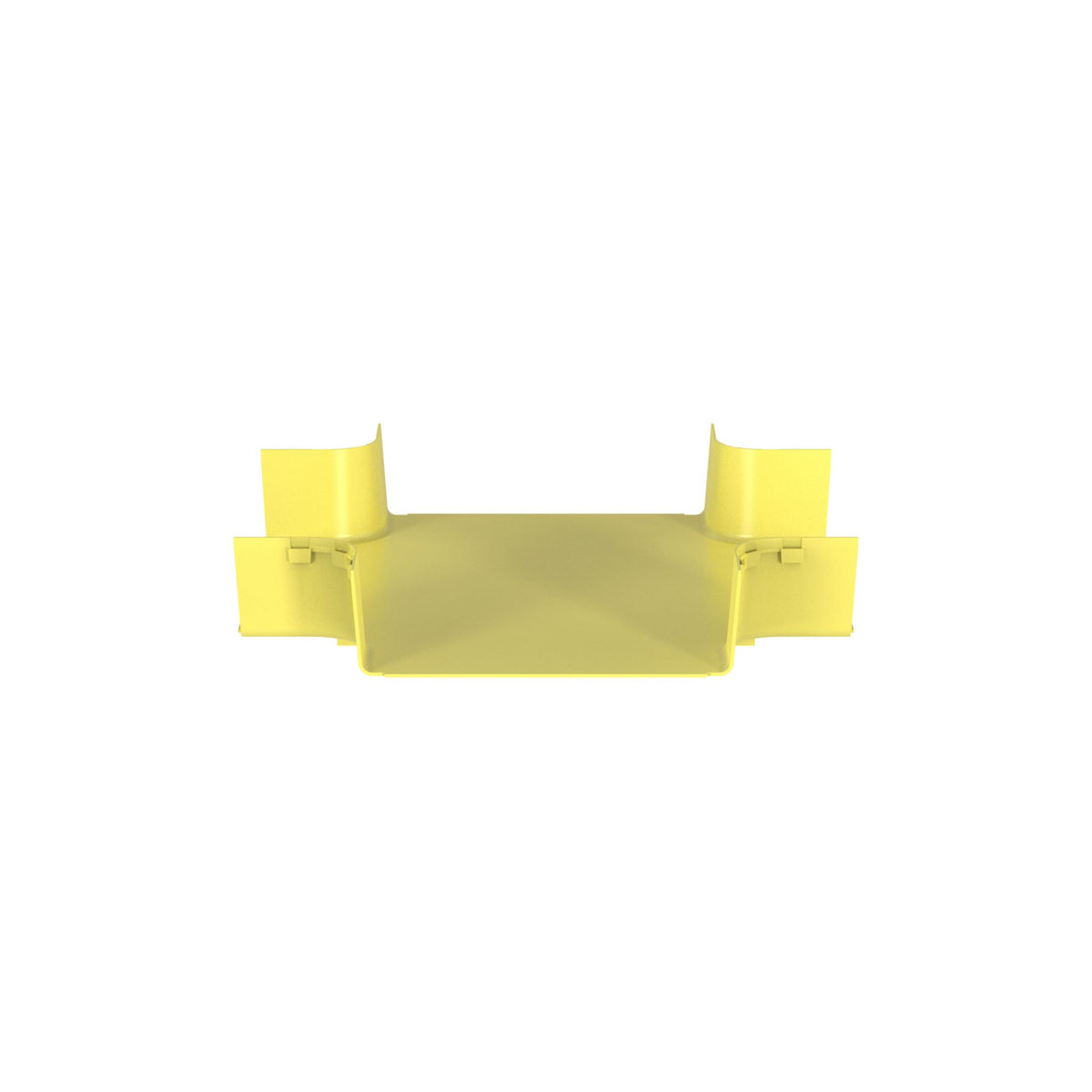

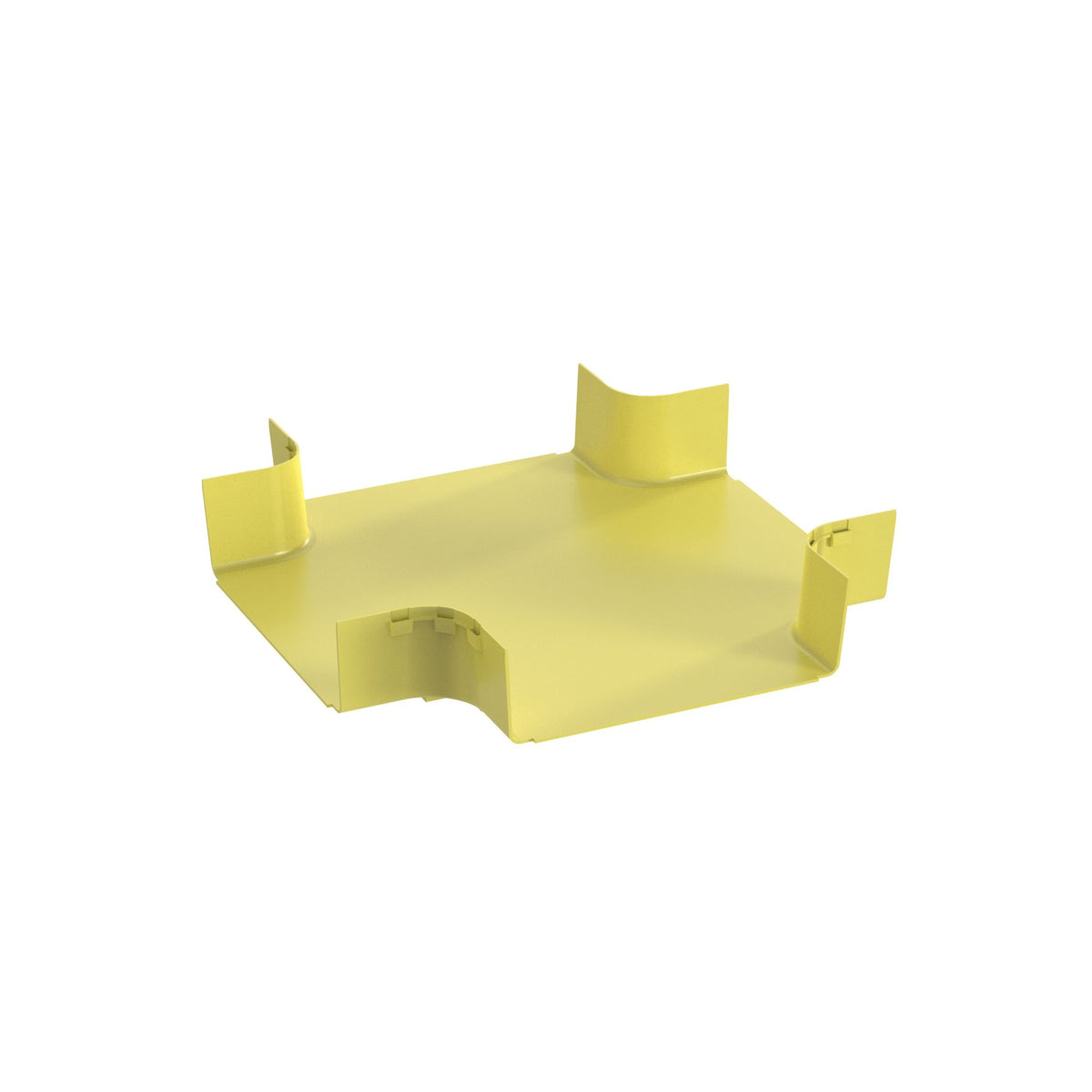

Panduit FRFWC12X4LYL | FiberRunner 4-Way Cross Fitting, 12x4, Yellow
The FiberRunner 12x4 4-Way Cross Fitting attaches to 12x4 channels and/or fittings to create a horizontal 4-way cross intersection with two 12x4 exits.
Panduit FRFWC12X4LYL Fiberrunner 4-way Crossfitting12"x4" Yellow Lszhrohs
Specifications
Specifications
Panduit - FRFWC12X4LYL - Product Categories
- Wire Routing, Management & Protection
- Fiber Routing Bends, Crosses, Tees & End Caps
Panduit - FRFWC12X4LYL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FRFWC12X4LYL |
| Item Description | FiberRunner 4-Way Cross Fitting, 12x4, Yellow |
| Application | Data Centers and Telco Central Offices |
| Product Type | Four Way Cross |
| Sub Brand | FiberRunner |
| Bend Radius (In.) | 2 |
| Bend Radius (mm) | 50.8 |
| Color | Yellow |
| Fitting Type | Four Way Cross |
| Fitting Material | PC/ABS |
| For Use With | 12x4 FiberRunner System |
| Material | PC/ABS |
| Overall Height (In.) | 4.22 |
| Overall Height (mm) | 107.2 |
| Overall Length (In.) | 22.25 |
| Overall Length (mm) | 565.2 |
| Overall Width (In.) | 22.25 |
| Overall Width (mm) | 565.2 |
| Standards Met | RoHS Compliant, UL Listed to 2024A Optical Fiber Cable Routing Assemblies Compliant with the applicable tests in Telcordia GR-63-CORE Network Equipment Building Systems Level 3 |
| System Dimensions | 12x4 |
| Channel | SINGLE |
| Components | FITTINGS |
| Type | NON-METALLIC |
| Latching | YES |
| UNSPSC Code | 39131709 |
Panduit - FRFWC12X4LYL - Package Information
| UPC | 61305676410 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 1.5075 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
Panduit - FRFWC12X4LYL - Videos
| Video 1 | Click to View |
|---|
