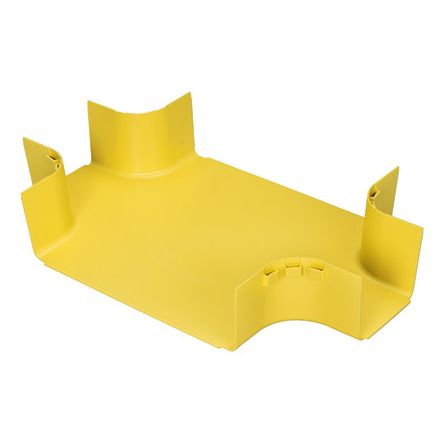

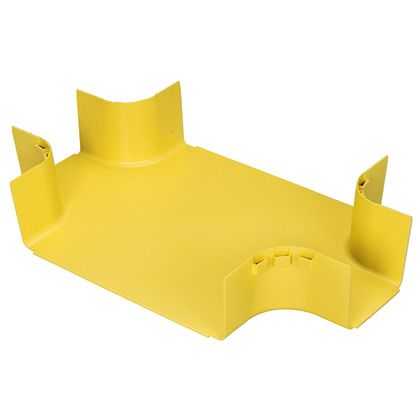

Panduit FRFWC12X4W4YL | FiberRunner Four Way Cross

Name: Panduit FRFWC12X4W4YL | FiberRunner Four Way Cross
Brand: Anixter
SKU: 372597
Price: 361.89 USD
Availability: InStock

$361.89

Shipping calculated at checkout.

Description

Attaches to 12x4 channel and/or fittings to create a horizontal four way cross intersection with two 4x4 exits.

Panduit FRFWC12X4W4YL Attaches To 12x4 Channel And/or Fittings To Create A Horizontal Four Way Cross Intersection With Two 4x4 Exits.

Brand Name	Panduit
Manufacturer Part Number	FRFWC12X4W4YL
Item Description	FiberRunner Four Way Cross
Application	Segregate, Route, And Protect Fiber Optic And High Performance Copper Cabling. It is Suited for Data Center Applications where Cable is Routed from Distribution Areas to Equipment Cabinets or Racks. It is Used in Telco Central Offices to Route Fiber Optic
Product Type	Four Way Cross
Sub Brand	FiberRunner
Bend Radius (In.)	2
Bend Radius (mm)	50.8
Channel Material	Rigid PVC
Color	Yellow
Fitting Type	Four Way Cross with 4" Exits
Fitting Material	ABS
For Use With	12x4
Material	ABS
Overall Height (In.)	4.22
Overall Height (mm)	107.2
Overall Length (In.)	12.96
Overall Length (mm)	329.2
Overall Width (In.)	21.25
Overall Width (mm)	539.8
Standards Met	RoHS Compliant, UL Listed to 2024A Optical Fiber Cable Routing Assemblies Compliant with the applicable tests in Telcordia GR-63-CORE Network Equipment Building Systems Level 3
System Dimensions	12x4

Video 1	Click to View
