Brand: Panduit
|
SKU:
10057500
Panduit FRFWC24X4LYL | FIBERRUNNER 4- WAY CROSS, ATTACHES TO 24" X 4" CHANNELS
Regular price
$1,214.19
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FRFWC24X4LYL | FIBERRUNNER 4- WAY CROSS, ATTACHES TO 24&quo...
Regular price
$1,214.19
Unit price
Description
Description
Panduit FRFWC24X4LYL | FIBERRUNNER 4- WAY CROSS, ATTACHES TO 24" X 4" CHANNELS

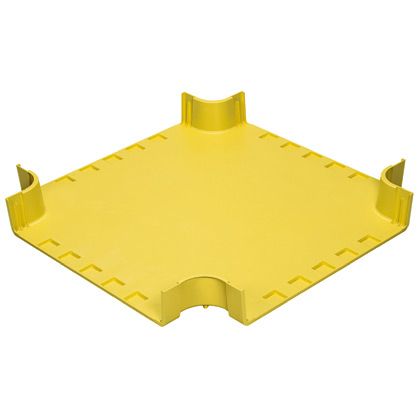

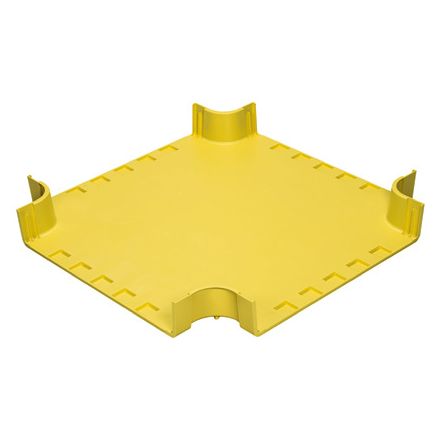

The FiberRunner 24x4 4-Way Cross Fitting attaches to 24x4 channel and/or fittings to create a horizontal 4-way cross intersection with two 24x4 exits.
Panduit FRFWC24X4LYL Fitting, 4-way Cross, 24x4(600mmx100mm), Yllszh
Specifications
Specifications
Panduit - FRFWC24X4LYL - Product Categories
- Wire Routing, Management & Protection
- Fiber Routing Bends, Crosses, Tees & End Caps
Panduit - FRFWC24X4LYL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FRFWC24X4LYL |
| Item Description | FIBERRUNNER 4- WAY CROSS, ATTACHES TO 24" X 4" CHANNELS |
| Application | Data Centers and Telco Central Offices |
| Product Type | Four Way Cross |
| Sub Brand | FiberRunner |
| Bend Radius (In.) | 3 |
| Bend Radius (mm) | 76.2 |
| Color | Yellow |
| For Use With | 24x4 FiberRunner System |
| Material | PC/ABS |
| Overall Height (In.) | 4.48 |
| Overall Height (mm) | 113.8 |
| Overall Length (In.) | 35.7 |
| Overall Length (mm) | 906.8 |
| Standards Met | RoHS Compliant, UL Listed to 2024A Optical Fiber Cable Routing Assemblies Compliant with the applicable tests in Telcordia GR-63-CORE Network Equipment Building Systems Level 3 |
| System Dimensions | 24x4 |
| Components | FITTINGS |
| Finish | YELLOW |
| Material | PLASTIC |
| Type | CABLE ROUTING / WIRING DUCT |
| UNSPSC Code | 39131712 |
Panduit - FRFWC24X4LYL - Package Information
| UPC | 61305676892 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 3.8128 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
