Panduit FRFWC4X4OR | Four Way Cross | UPC - 07498384335
Description
Description
The Panduit FiberRunner cable routing system ensures maximum network reliability and reduced cost of ownership. Robust, highly engineered components with integral bend radius control surfaces can be configured to meet virtually any network application to provide optimum cable protection and assure network performance. Fast and easy to deploy, this scalable cable routing solution reduces installation cost and speeds implementation of new services.

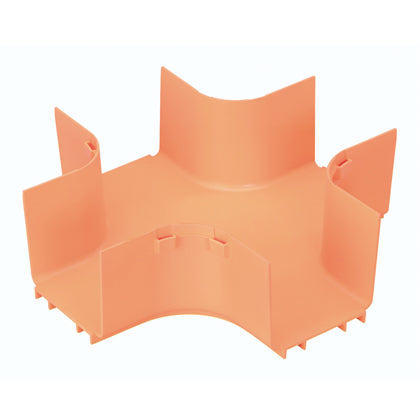

Panduit FiberRunner Horizontal Four Way Cross, Snap-In Mounting, For Use With: FiberRunner 4 x 4 in Routing System Fitting, ABS, Orange, 4.2 in H x 5.5 in W Dimensions
Features + Benefits
- Attaches to 4x4 channel and/or fittings to create a horizontal four way cross intersection
- Accepts optional split cover FRFWCSC4OR
Panduit FRFWC4X4OR Key Specs
| Application | (1) Designed to Segregate, Route, and Protect Fiber Optic and High Performance Copper Cabling (2) It is Suited for Data Center Applications where Cable is Routed from Distribution Areas to Equipment Cabinets or Racks (3) It is Used in Telco Central Office |
| Product Type | Four Way Cross |
| Angle | 30-90 |
| Color | Orange |
| Fitting Type | Coupler |
| Flammability Rating | 94V-0 |
| For Use With | Copper Cabling. |
| Material | ABS |
| Overall Height (In.) | 4.22 |
| Overall Height (mm) | 107.2 |
| Overall Length (In.) | 12.95 |
| Overall Length (mm) | 328.9 |
| Overall Width (In.) | 12.95 |
| Overall Width (mm) | 328.9 |
| Standards Met | UL Listed to 2024A Optical Fiber Cable Routing Assemblies, Compliant with the applicable tests in Telcordia GR-63-CORE Network Equipment Building Systems Level 3, RoHS Compliant |
| Sub Brand | FiberRunner |
| System Dimensions | 4x4 |
Panduit FRFWC4X4OR Data Sheets
| Application Guides | FiberRunner Cable Routing System: SA-FRCB02 | Download and View |
| Catalog Cut Sheets | Catalog Cut Sheet - FR6TRBE12 Product Page | Download and View |
| Certifications | Third Party Certifications/Reports - FiberRunner 4x4 and 6x4 | Download and View |
