Brand: Panduit
|
SKU:
10057473
Panduit FRH454X4LYL | FIBERRUNNER HORIZONTAL FITTING, FOR 4X4 CHANNEL, LSZH
Regular price
$132.24
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FRH454X4LYL | FIBERRUNNER HORIZONTAL FITTING, FOR 4X4 CHANN...
Regular price
$132.24
Unit price
Description
Description

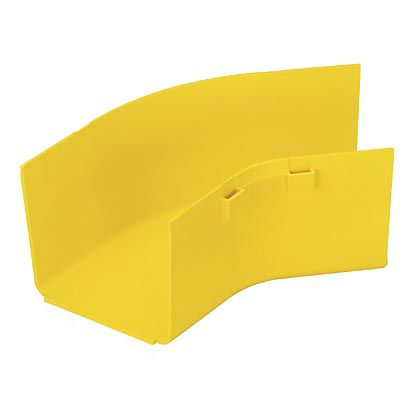

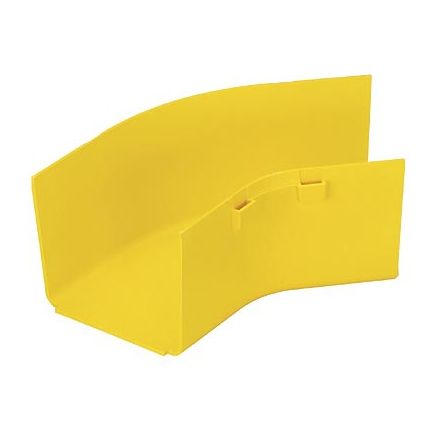

Panduit FRH454X4LYL | FIBERRUNNER HORIZONTAL FITTING, FOR 4X4 CHANNEL, LSZH
The FiberRunner 4x4 Horizontal Fitting attaches to a 4x4 channel and/or fittings to create a 45° horizontal turn from a straight horizontal run.
Panduit FRH454X4LYL Fitting, Horiz. 45deg., angle, 4"x4" (100mmx100mm), yl Lszh
Specifications
Specifications
Panduit - FRH454X4LYL - Product Categories
- Wire Routing, Management & Protection
- Fiber Routing Bends, Crosses, Tees & End Caps
Panduit - FRH454X4LYL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FRH454X4LYL |
| Item Description | FIBERRUNNER HORIZONTAL FITTING, FOR 4X4 CHANNEL, LSZH |
| Application | Data Centers and Telco Central Offices |
| Product Type | Angled Fitting |
| Sub Brand | FiberRunner |
| Bend Radius (In.) | 2 |
| Bend Radius (mm) | 50.8 |
| Color | Yellow |
| For Use With | 4x4 FiberRunner System |
| Material | PC/ABS |
| Overall Height (In.) | 4.22 |
| Overall Height (mm) | 107.2 |
| Overall Length (In.) | 9.8 |
| Overall Length (mm) | 248.9 |
| Overall Width (In.) | 7.86 |
| Overall Width (mm) | 199.6 |
| Standards Met | RoHS Compliant, UL Listed to 2024A Optical Fiber Cable Routing Assemblies Compliant with the applicable tests in Telcordia GR-63-CORE Network Equipment Building Systems Level 3 |
| System Dimensions | 4X4 |
| Components | FITTINGS |
| Finish | YELLOW |
| Material | PLASTIC |
| Type | CABLE ROUTING / WIRING DUCT |
| UNSPSC Code | 39131712 |
Panduit - FRH454X4LYL - Package Information
| UPC | 61305676916 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.2640 |
| Standard Ctn. Quantity | 5 |
| Standard Ctn. Volume (cf) | 1.3201 |
Panduit - FRH454X4LYL - Videos
| Video 1 | Click to View |
|---|
