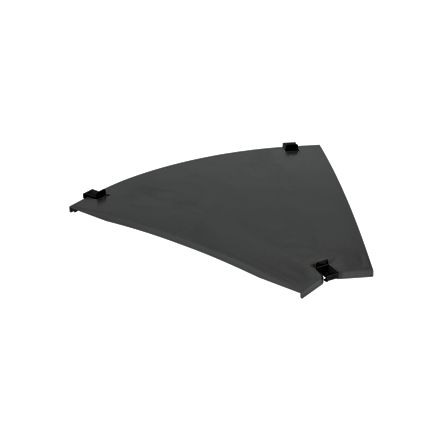

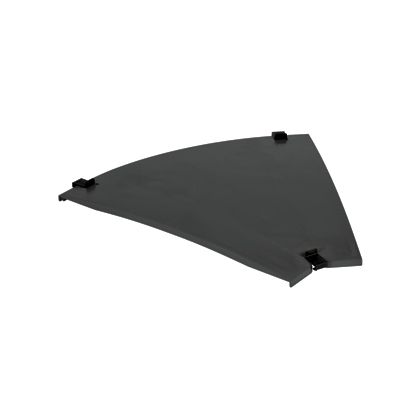

Panduit FRH45CV24BL | FiberRunner Angled Fitting Cover
Regular price
$330.62
Unit price
Brand: Panduit
|
SKU:
10150475
Regular price
$330.62
Unit price
Description
Description
Panduit FRH45CV24BL | FiberRunner Angled Fitting Cover
Optional solid cover for the horizontal 45° angle fitting FRH4524X4BL. Snap-on feature allows cover to be installed and removed with no tools required.
Panduit - Angle fitting solid cover - black - FRH45CV24BL.
Specifications
Specifications
Panduit - FRH45CV24BL - Product Categories
- Wire Routing, Management & Protection
- Fiber Routing Bends, Crosses, Tees & End Caps
Panduit - FRH45CV24BL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FRH45CV24BL |
| Item Description | FiberRunner Angled Fitting Cover |
| Application | Route, Manage, and Protect Fiber Optic and High Performance Copper Cabling Above Network Racks and Cabinets Within Data Centers and Service Provider Facilities. |
| Product Type | Angled Fitting Cover |
| Sub Brand | FiberRunner |
| Bend Radius (In.) | 3 |
| Bend Radius (mm) | 76.2 |
| Channel Material | Rigid PVC |
| Color | Black |
| Fitting Type | Horizontal 45° Cover |
| Fitting Material | ABS |
| For Use With | 24x4 |
| Material | ABS |
| Overall Height (In.) | 1.57 |
| Overall Height (mm) | 39.9 |
| Overall Length (In.) | 24.74 |
| Overall Length (mm) | 628.4 |
| Overall Width (In.) | 28.49 |
| Overall Width (mm) | 723.6 |
| Standards Met | RoHS Compliant |
| System Dimensions | 24x4 |
Panduit - FRH45CV24BL - Package Information
| UPC | 07498322024 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.9060 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
Panduit - FRH45CV24BL - Videos
| Video 1 | Click to View |
|---|
