Panduit FRH45CV24LYL | FIBERRUNNER HORIZONTAL FIBERRUNNER , 24X4, LSZH
Regular price
$402.07
Unit price
Description
Description
Panduit FRH45CV24LYL | FIBERRUNNER HORIZONTAL FIBERRUNNER , 24X4, LSZH

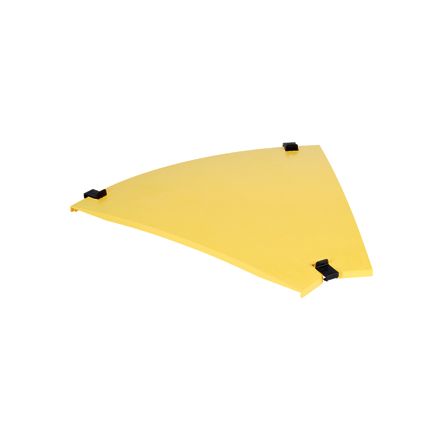

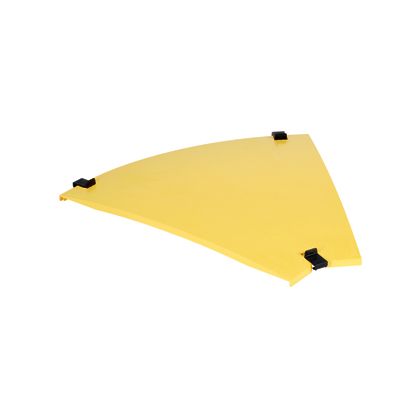

The FiberRunner 24x4 Horizontal Cover creates openings for easy access to add or remove cables.
Panduit FRH45CV24LYL Cover, horizon. 45deg., 24x4(600mmx100mm), Yllszh
Specifications
Specifications
Panduit - FRH45CV24LYL - Product Categories
- Wire Routing, Management & Protection
- Fiber Routing Bends, Crosses, Tees & End Caps
Panduit - FRH45CV24LYL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FRH45CV24LYL |
| Item Description | FIBERRUNNER HORIZONTAL FIBERRUNNER , 24X4, LSZH |
| Application | Data Centers and Telco Central Offices |
| Product Type | Angled Fitting Cover |
| Sub Brand | FiberRunner |
| Bend Radius (In.) | 3 |
| Bend Radius (mm) | 76.2 |
| Color | Yellow |
| For Use With | 24x4 FiberRunner System |
| Material | PC/ABS |
| Overall Height (In.) | 1.57 |
| Overall Height (mm) | 39.9 |
| Overall Length (In.) | 24.74 |
| Overall Length (mm) | 628.4 |
| Overall Width (In.) | 28.49 |
| Overall Width (mm) | 723.6 |
| Standards Met | RoHS Compliant, UL Listed to 2024A Optical Fiber Cable Routing Assemblies Compliant with the applicable tests in Telcordia GR-63-CORE Network Equipment Building Systems Level 3 |
| System Dimensions | 24x4 |
| Components | COVERS |
| Finish | YELLOW |
| Material | PLASTIC |
| Type | CABLE ROUTING / WIRING DUCT |
| UNSPSC Code | 39131712 |
Panduit - FRH45CV24LYL - Package Information
| UPC | 61305676918 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.9433 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
