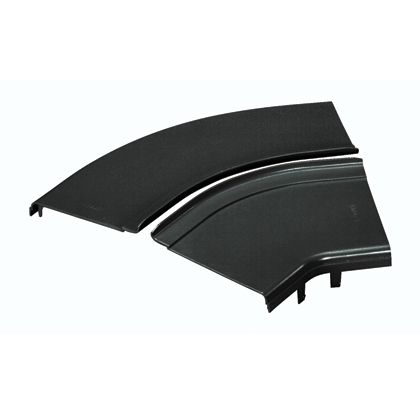

Panduit FRH45SC12BL | FiberRunner Angled Fitting Cover
Regular price
$144.32
Unit price
Brand: Panduit
|
SKU:
271122
Regular price
$144.32
Unit price
Description
Description
Panduit FRH45SC12BL | FiberRunner Angled Fitting Cover
Manage and route cables at a 45° angle, optimizing space and maintaining a clean appearance with our horizontal cover. It provides a neat and secure way to handle cable transitions.
Panduit FiberRunner Split Cover, 45 deg Horizontal, 2 in Bend Radius, 15.99 in Length, 15.34 in W, 2.79 in Height, Snap-On Mount, For Use With: FiberRunner 12 x 4 Cable Routing System, ABS, Black
Panduit - FRH45SC12BL - Features
- Spill over junction with 2 x 2 in exit
- Used to fully enclose 12 x 4 in channel in conjunction with the spill over junction FRSPJ2X2YL
- Cover snaps onto the channel base
- Hinged feature allows easy access to add or remove cables
- It is suited for data center applications where cable is routed from distribution areas to equipment cabinets or racks
Specifications
Specifications
Panduit - FRH45SC12BL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FRH45SC12BL |
| Product Type | Angled Fitting Cover |
| Sub Brand | FiberRunner |
| Application | Segregate, Route, and Protect Fiber Optic and High Performance Copper Cabling. It is Suited for Data Center Applications where Cable is Routed from Distribution Areas to Equipment Cabinets or Racks. It is Used in Telco Central Offices to Route Fiber Optic |
| Bend Radius (In.) | 2 |
| Bend Radius (mm) | 50.8 |
| Channel Material | Rigid PVC |
| Color | Black |
| Fitting Type | Horizontal 45° Cover |
| Fitting Material | ABS |
| Material | ABS |
| For Use With | 12x4 |
| Overall Length (In.) | 15.34 |
| Overall Length (mm) | 389.6 |
| Overall Width (In.) | 15.99 |
| Overall Width (mm) | 406.1 |
| Overall Height (In.) | 2.79 |
| Overall Height (mm) | 70.9 |
| Standards Met | RoHS Compliant, UL Listed to 2024A Optical Fiber Cable Routing Assemblies Compliant with the applicable tests in Telcordia GR-63-CORE Network Equipment Building Systems Level 3 |
| System Dimensions | 12" x 4" |
| UPC | 07498345026 |
Panduit - FRH45SC12BL - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 3926.90.9985 |
Panduit - FRH45SC12BL - Videos
| Panduit FRH45SC12BL Video 1 | Click to View |
|---|
