Panduit FRH45SC4LYL | FIBERRUNNER SPLIT FIBERRUNNER, 4" X 4&qu...
Regular price
$101.83
Unit price
Brand: Panduit
|
SKU:
10057474
Regular price
$101.83
Unit price
Description
Description

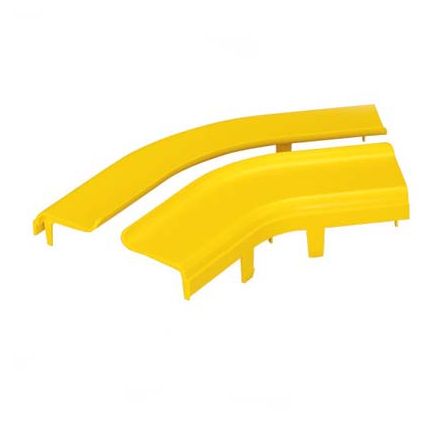

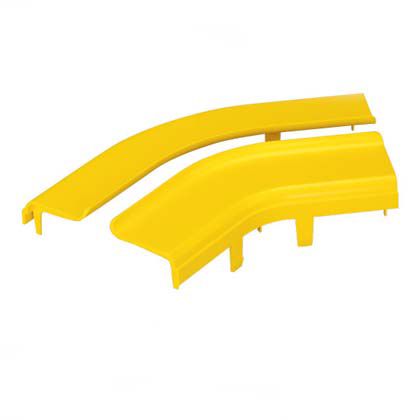

Panduit FRH45SC4LYL | FIBERRUNNER SPLIT FIBERRUNNER, 4" X 4", LSZH
The FiberRunner 4x4 Horizontal Cover creates openings for easy access to add or remove cables.
Panduit FRH45SC4LYL Split Cover, Horiz. 45deg., 4"x4" (100mmx100mm), Yllszh
Specifications
Specifications
Panduit - FRH45SC4LYL - Product Categories
- Wire Routing, Management & Protection
- Fiber Routing Bends, Crosses, Tees & End Caps
Panduit - FRH45SC4LYL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FRH45SC4LYL |
| Item Description | FIBERRUNNER SPLIT FIBERRUNNER, 4" X 4", LSZH |
| Application | Data Centers and Telco Central Offices |
| Product Type | Angled Fitting Cover |
| Sub Brand | FiberRunner |
| Bend Radius (In.) | 2 |
| Bend Radius (mm) | 50.8 |
| Color | Yellow |
| For Use With | 4x4 FiberRunner System |
| Material | PC/ABS |
| Overall Height (In.) | 2.15 |
| Overall Height (mm) | 54.6 |
| Overall Length (In.) | 9.8 |
| Overall Length (mm) | 248.9 |
| Overall Width (In.) | 7.86 |
| Overall Width (mm) | 199.6 |
| Standards Met | RoHS Compliant, UL Listed to 2024A Optical Fiber Cable Routing Assemblies Compliant with the applicable tests in Telcordia GR-63-CORE Network Equipment Building Systems Level 3 |
| System Dimensions | 4x4 |
| Components | COVERS |
| Finish | YELLOW |
| Material | PLASTIC |
| Type | CABLE ROUTING / WIRING DUCT |
| UNSPSC Code | 39131712 |
Panduit - FRH45SC4LYL - Package Information
| UPC | 61305676922 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0790 |
| Standard Ctn. Quantity | 5 |
| Standard Ctn. Volume (cf) | 0.3952 |
Panduit - FRH45SC4LYL - Videos
| Video 1 | Click to View |
|---|
