Panduit FRH45SC6BL | Fiberrunner Angled Fitting Cover
Regular price
$122.79
Unit price
Brand: Panduit
|
SKU:
699726
Regular price
$122.79
Unit price
Description
Description

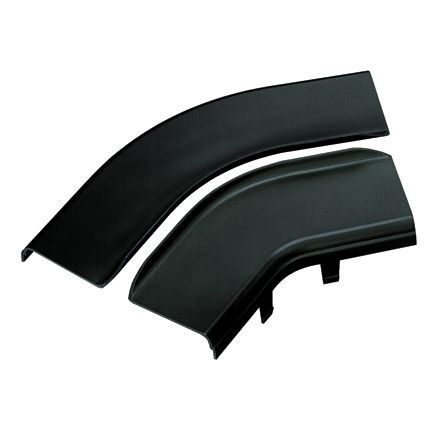

Panduit FRH45SC6BL | Fiberrunner Angled Fitting Cover
Panduit FRH45SC6BL Split Cover, Horizontal 45o, 6"; X 4"; (150mm X 100mm), Fiberrunner, BL
Optional split cover for the horizontal 45° angle fitting FRH456X4BL. Snap-on feature allows cover to be installed and removed with no tools required. Creates radiused 3/4 (19mm) opening for easy access to add or remove cables.
Specifications
Specifications
Panduit - FRH45SC6BL - Product Categories
- Wire Routing, Management & Protection
- Fiber Routing Bends, Crosses, Tees & End Caps
Panduit - FRH45SC6BL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FRH45SC6BL |
| Item Description | Fiberrunner Angled Fitting Cover |
| Application | Segregate, Route, and Protect Fiber Optic and High Performance Copper Cabling |
| Product Type | Angled Fitting Cover |
| Sub Brand | FiberRunner |
| Bend Radius (In.) | 2 |
| Bend Radius (mm) | 50.8 |
| Channel Material | Rigid PVC |
| Color | Black |
| Fitting Type | Horizontal 45° Cover |
| Fitting Material | ABS |
| For Use With | 6x4 |
| Material | ABS |
| Overall Height (In.) | 2.15 |
| Overall Height (mm) | 54.6 |
| Overall Length (In.) | 11 |
| Overall Length (mm) | 279.4 |
| Overall Width (In.) | 9.39 |
| Overall Width (mm) | 238.5 |
| Standards Met | RoHS Compliant, UL Listed to 2024A Optical Fiber Cable Routing Assemblies Compliant with the applicable tests in Telcordia GR-63-CORE Network Equipment Building Systems Level 3 |
| System Dimensions | 6x4 |
Panduit - FRH45SC6BL - Package Information
| UPC | 07498345060 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.1414 |
| Standard Ctn. Quantity | 5 |
| Standard Ctn. Volume (cf) | 0.7071 |
Panduit - FRH45SC6BL - Videos
| Video 1 | Click to View |
|---|
