Brand: Panduit
|
SKU:
271402

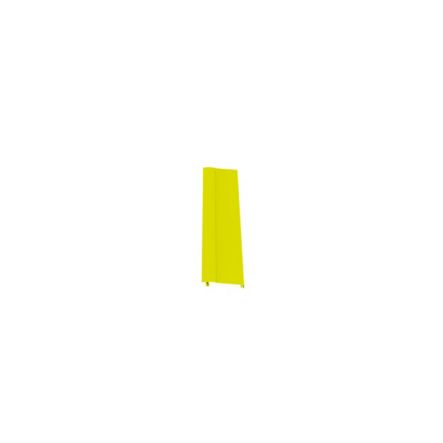

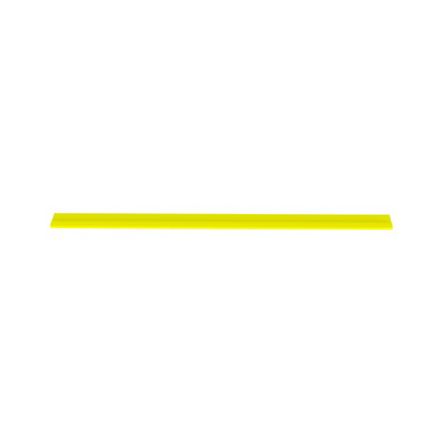

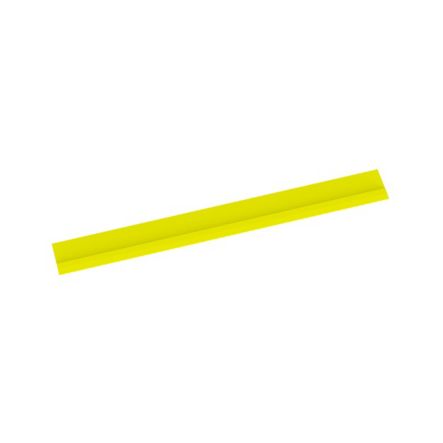

Panduit FRHC12YL6 | FiberRunner Snap-On Hinged Cover, 12x4, Yellow
Regular price
$212.33
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FRHC12YL6 | FiberRunner Snap-On Hinged Cover, 12x4, Yellow
Regular price
$212.33
Unit price
Description
Description
Panduit FRHC12YL6 | FiberRunner Snap-On Hinged Cover, 12x4, Yellow
The FiberRunner Snap-On Hinged Cover is designed to be used in a cable routing system that uses the 12x4 channel. This snap-on hinged cover features a hinge that enables the positioning of the cover at angles between 30° and 90°.
Panduit - FRHC12YL6 - Features
- Robust, large capacity 12x4 system ideal for use with large cable counts
- Multiple spillout options provide versatility to mate to various equipment and rack configurations
- QuikLock(TM) couplers and brackets reduce system installation time dramatically
- Channel, covers, fittings and other non-metallic system components made from V-0 flame class rated material
- Compatible with all sizes of Panduit(TM) FiberRunner(TM) and Panduit(TM) Fiber-Duct(TM) Routing Systems, cable management, and racks
- Compliant with the applicable tests in Telcordia GR-63-CORE Network Equipment Building Systems (NEBS) Level 3
- For other standard colors replace suffix YL (Yellow) with OR (Orange) or BL (Black)
Specifications
Specifications
Panduit - FRHC12YL6 - Product Categories
- Wire Routing, Management & Protection
- Fiber Routing Channel & Covers
Panduit - FRHC12YL6 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FRHC12YL6 |
| Item Description | FiberRunner Snap-On Hinged Cover, 12x4, Yellow |
| Application | (1)The Fiber-Runner 12X4 Routing Systems Are Comprised of Channel, Fittings, and Brackets Designed to Segregate, Route, and Protect Fiber Optic Cable and Copper Cabling.(2) It is Suited for Data Center Applications where Cable is Routed from Distribution |
| Product Type | Cover |
| Channel Material | Rigid PVC |
| Color | Yellow |
| For Use With | FR12X4YL6 |
| Flammability Rating | 94V-0 |
| Material | PVC |
| Mount Method | Snap-On |
| Overall Height (In.) | 1.47 |
| Overall Height (mm) | 37.3 |
| Sub Brand | FiberRunner |
| Overall Length (ft.) | 6 |
| Overall Length (m) | 1.8 |
| Overall Width (In.) | 13.63 |
| Overall Width (mm) | 346.2 |
| Standards Met | UL Listed to 2024A,GR-63-CORE,RoHS Compliant |
| System Dimensions | 12x4 |
| Part Features | Fastest installations, Easy to maintain, System strength, Versatility and Cable protection |
Panduit - FRHC12YL6 - Package Information
| UPC | 07498383504 |
|---|---|
| Standard Package Quantity | 6 |
| Standard Package Volume (cf) | 0.8872 |
| Standard. Ctn. Quantity | 12 |
| Standard. Ctn. Volume (cf) | 1.7743 |
Panduit - FRHC12YL6 - Videos
| Video 1 | Click to View |
|---|---|
| Video 2 | Click to View |
| Video 3 | Click to View |
