Brand: Panduit
|
SKU:
265265

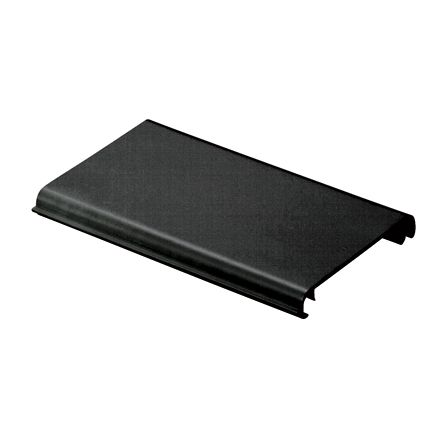

Panduit FRHC4BL6 | FIBERRUNNER SNAP-ON HINGED COVER FOR CHANNEL FR4X4BL6, BLACK
Regular price
$129.69
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FRHC4BL6 | FIBERRUNNER SNAP-ON HINGED COVER FOR CHANNEL FR4...
Regular price
$129.69
Unit price
Description
Description
Panduit FRHC4BL6 | FIBERRUNNER SNAP-ON HINGED COVER FOR CHANNEL FR4X4BL6, BLACK
Optional snap-on hinged cover for channel FR4X4BL6. Hinge feature enables positioning of cover at angles between 30° to 90°.
Panduit - FRHC4BL6 - Features
- Optional snap-on hinged cover for channel FR4X4BL6. Hinge feature enables positioning of cover at angles between 30 to 90.
- Robust 4x4 system ideal for use with smaller cable counts
- Multiple spillout options provide versatility to mate to various equipment and rack configurations
- QuikLock(TM) couplers and brackets reduce system installation time dramatically
- Channel, covers, fittings and other non-metallic system components made from V-0 flame class rated material
- Compatible with all sizes of Panduit(TM) FiberRunner(TM) and Panduit(TM) Fiber-Duct(TM) Routing Systems, cable management, and racks
- Compliant with the applicable tests in Telcordia GR-63-CORE Network Equipment Building Systems (NEBS) Level 3
- For other standard colors replace suffix YL (Yellow) with OR (Orange) or BL (Black)
Specifications
Specifications
Panduit - FRHC4BL6 - Product Categories
- Wire Routing, Management & Protection
- Fiber Routing Channel & Covers
Panduit - FRHC4BL6 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FRHC4BL6 |
| Item Description | FIBERRUNNER SNAP-ON HINGED COVER FOR CHANNEL FR4X4BL6, BLACK |
| Application | (1)The Fiber-Runner 4X4 Routing Systems are Comprised of Channel, Fittings, and Brackets Designedt to Segregate, Route, and Protect Fiber Optic Cable and Copper Cabling.(2) It is Suited for Data Center Applications where Cable is Routed from Distributio |
| Product Type | Cover |
| Channel Material | Rigid PVC |
| Color | Black |
| For Use With | FR4X4BL6 |
| Flammability Rating | 94V-0 |
| Material | PVC |
| Overall Height (In.) | 0.78 |
| Overall Height (mm) | 19.8 |
| Sub Brand | FiberRunner |
| Overall Length (ft.) | 6 |
| Overall Length (m) | 1.8 |
| Overall Width (In.) | 5.24 |
| Overall Width (mm) | 133.1 |
| Standards Met | UL Listed to 2024A,GR-63-CORE,RoHS Compliant |
| System Dimensions | 4x4 |
Panduit - FRHC4BL6 - Package Information
| UPC | 07498345083 |
|---|---|
| Standard Package Quantity | 6 |
| Standard Package Volume (cf) | 0.1429 |
| Standard. Ctn. Quantity | 36 |
| Standard. Ctn. Volume (cf) | 0.8572 |
Panduit - FRHC4BL6 - Videos
| Video 1 | Click to View |
|---|---|
| Video 2 | Click to View |
| Video 3 | Click to View |
