Brand: Panduit
|
SKU:
354884
Panduit FRHD2KTYL | FiberRunner Vertical Cable Manager Kit, 2x2, YL
Regular price
$232.44
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FRHD2KTYL | FiberRunner Vertical Cable Manager Kit, 2x2, YL
Regular price
$232.44
Unit price
Description
Description

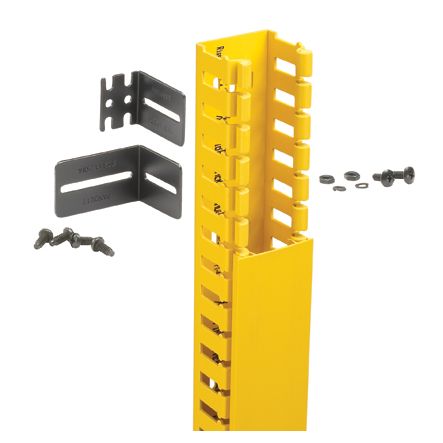

Panduit FRHD2KTYL | FiberRunner Vertical Cable Manager Kit, 2x2, YL
The FiberRunner Vertical Cable Manager Kit provides a secure, accessible route for cables spilling out from a vertical tee or spill-over junction. The kit includes a 2x2 channel, 2x2 snap-on hinged cover, 4 adjustable Z brackets, a 2x2 end cap, 6 hinged duct wire retainers, and mounting hardware.
Panduit - FRHD2KTYL - Features
- Kit, 2"; x 2"; (50mm x 50mm), FiberRunner, YL
- Spill-overs allow safe transition from horizontal to vertical runs
- 2"; bend radius control
- Transition to channel, slotted channel and corrugated loom tubing
- For other standard colors replace suffix YL (Yellow) with OR (Orange) or BL (Black)
Specifications
Specifications
Panduit - FRHD2KTYL - Product Categories
- Wire Routing, Management & Protection
- Fiber Routing Spillouts
Panduit - FRHD2KTYL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FRHD2KTYL |
| Item Description | FiberRunner Vertical Cable Manager Kit, 2x2, YL |
| Application | Routing System is a System of Channel, Fittings and Brackets Designed to Segregate, Route, and Protect Fiber Optic and High Performance Copper Cabling. It is Suited for Data Center Applications where Cable is Routed from Distribution Areas to Equipment |
| Sub Brand | FiberRunner |
| Bend Radius (In.) | 2 |
| Bend Radius (mm) | 50.8 |
| For Use With | 2x2 Routing System |
| Includes | (1) FiberRunner 2x2 Hinged Slotted Channel (H2X2**6), (1) FiberRunner 2x2 Hinged Cover (HC2**6), (6) Panduct Type H Wiring Duct 2" (50.8) Wire Retainers (WR2H-C), (1) Panduct Types H and HS 2x2 Wiring Duct End Cap (FHDEC2X2), (4) Fiber Routing Adjustable |
| Material | ABS |
| Overall Height (In.) | 72 |
| Overall Height (mm) | 1828.8 |
| Overall Width (In.) | 2.17 |
| Overall Width (mm) | 55.1 |
| Standards Met | UL Listed to 2024A, RoHS Compliant |
| System Dimensions | 2x2 |
| Color | Yellow |
| Part Features | Fastest installations, easy to maintain, system strength, versatility, Cable protection. |
Panduit - FRHD2KTYL - Package Information
| UPC | 07498361627 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.6525 |
| Standard. Ctn. Quantity | 0 |
| Standard. Ctn. Volume (cf) | 0.0000 |
