Panduit FRHD4KTYL | FiberRunner Vertical Cable Manager Kit, 4x4, YL
Regular price
$274.64
Unit price
Description
Description
Panduit FRHD4KTYL | FiberRunner Vertical Cable Manager Kit, 4x4, YL

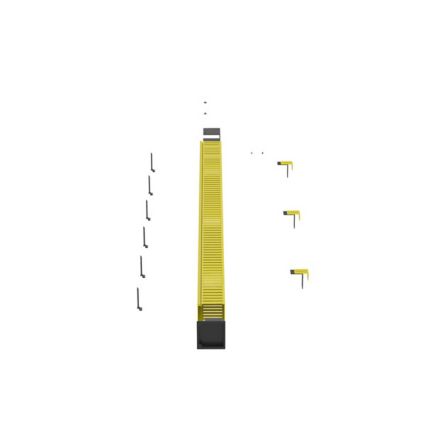

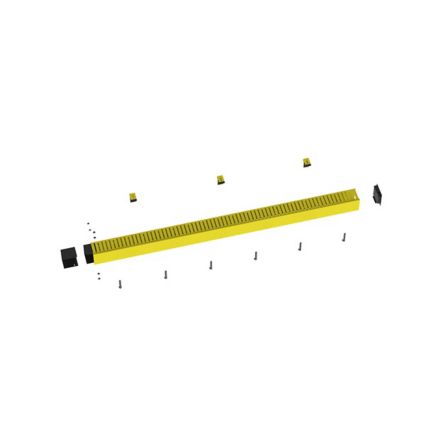

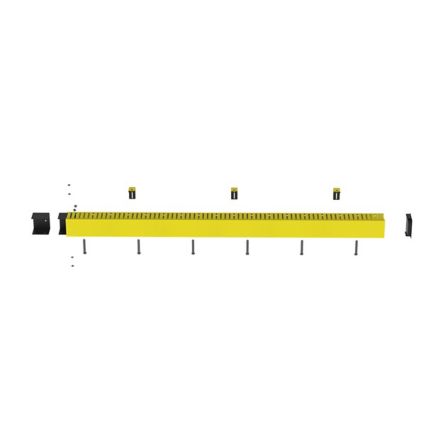

The FiberRunner Vertical Cable Manager Kit provides a secure, accessible route for cables spilling out from a vertical tee or spill-over junction. The kit includes a 4x4 channel, 4x4 snap-on hinged cover, 3 adjustable Z brackets, a 4x4 end cap, 1 adapter fitting, 6 hinged duct wire retainers, and mounting hardware.
Panduit - FRHD4KTYL - Features
- Spill-overs allow safe transition from horizontal to vertical runs
- 2"; (50.8mm) bend radius control
- Transition to channel, slotted channel, and corrugated loom tubing
Specifications
Specifications
Panduit - FRHD4KTYL - Product Categories
- Wire Routing, Management & Protection
- Fiber Routing Spillouts
Panduit - FRHD4KTYL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FRHD4KTYL |
| Item Description | FiberRunner Vertical Cable Manager Kit, 4x4, YL |
| Application | Routing System is a System of Channel, Fittings and Brackets Designed to Segregate, Route, and Protect Fiber Optic and High Performance Copper Cabling. It is Suited for Data Center Applications where Cable is Routed from Distribution Areas to Equipment |
| Sub Brand | FiberRunner |
| Bend Radius (In.) | 2 |
| Bend Radius (mm) | 50.8 |
| For Use With | 4X4 Routing System |
| Includes | (1) Transition, (4) Fiber-Duct 4X4 Nylon Snap Rivets, (1) Panduct Type H 4X4 Hinged Wiring Duct, (1) Panduct Types H and HS 4X4 Hinged Wiring Duct Cover, (6) Panduct Types E, G and H 4" (101.6) Wire Retainers, (1) Panduct Types H ans HS 4X4 Wiring Duct En |
| Material | ABS |
| Overall Height (In.) | 72 |
| Overall Height (mm) | 1828.8 |
| Overall Width (In.) | 5.05 |
| Overall Width (mm) | 128.3 |
| Standards Met | UL Listed to 2024A, RoHS Compliant |
| System Dimensions | 4x4 |
| Color | Yellow |
Panduit - FRHD4KTYL - Package Information
| UPC | 07498347569 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 1.0101 |
| Standard. Ctn. Quantity | 0 |
| Standard. Ctn. Volume (cf) | 0.0000 |
