Brand: Panduit
|
SKU:
9992090

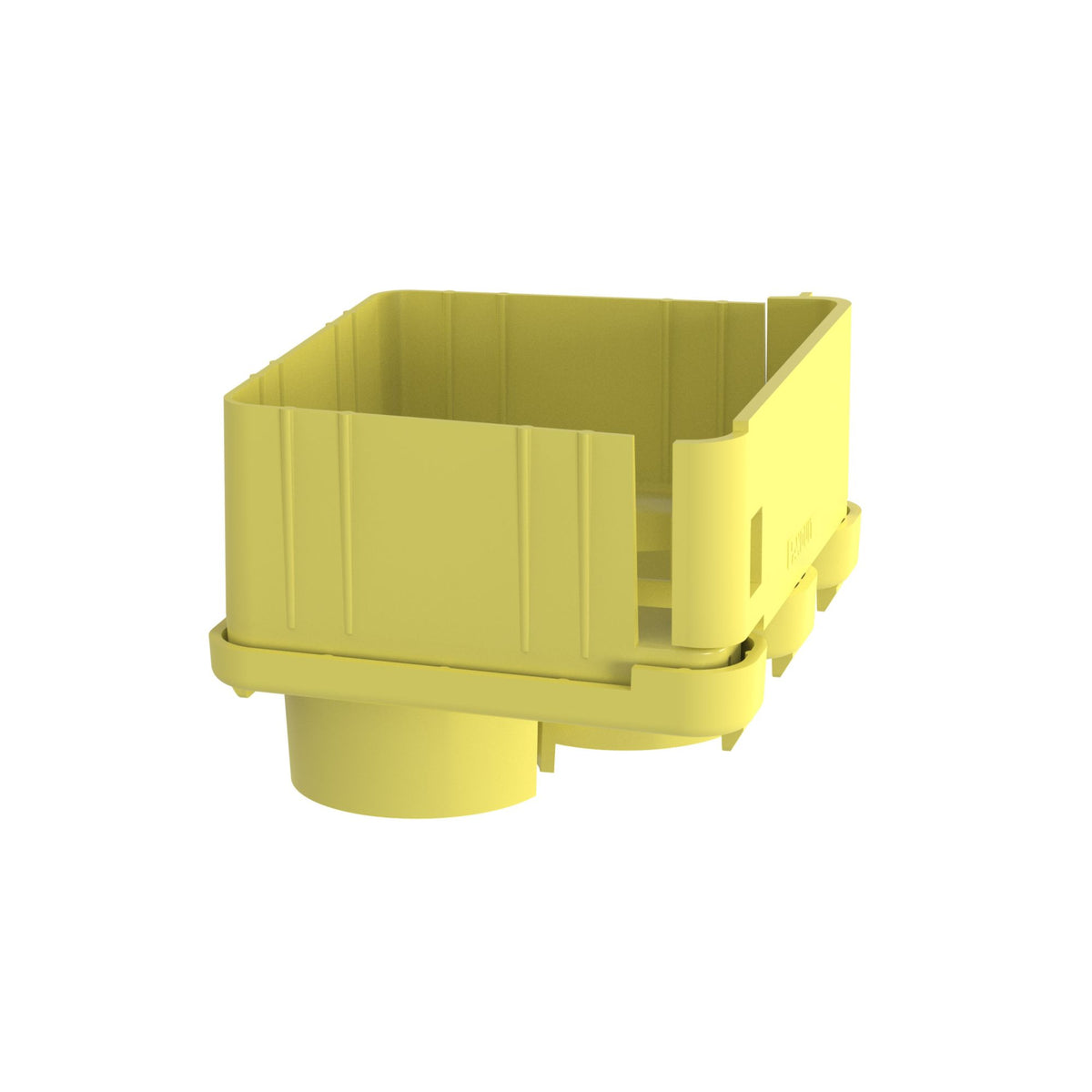

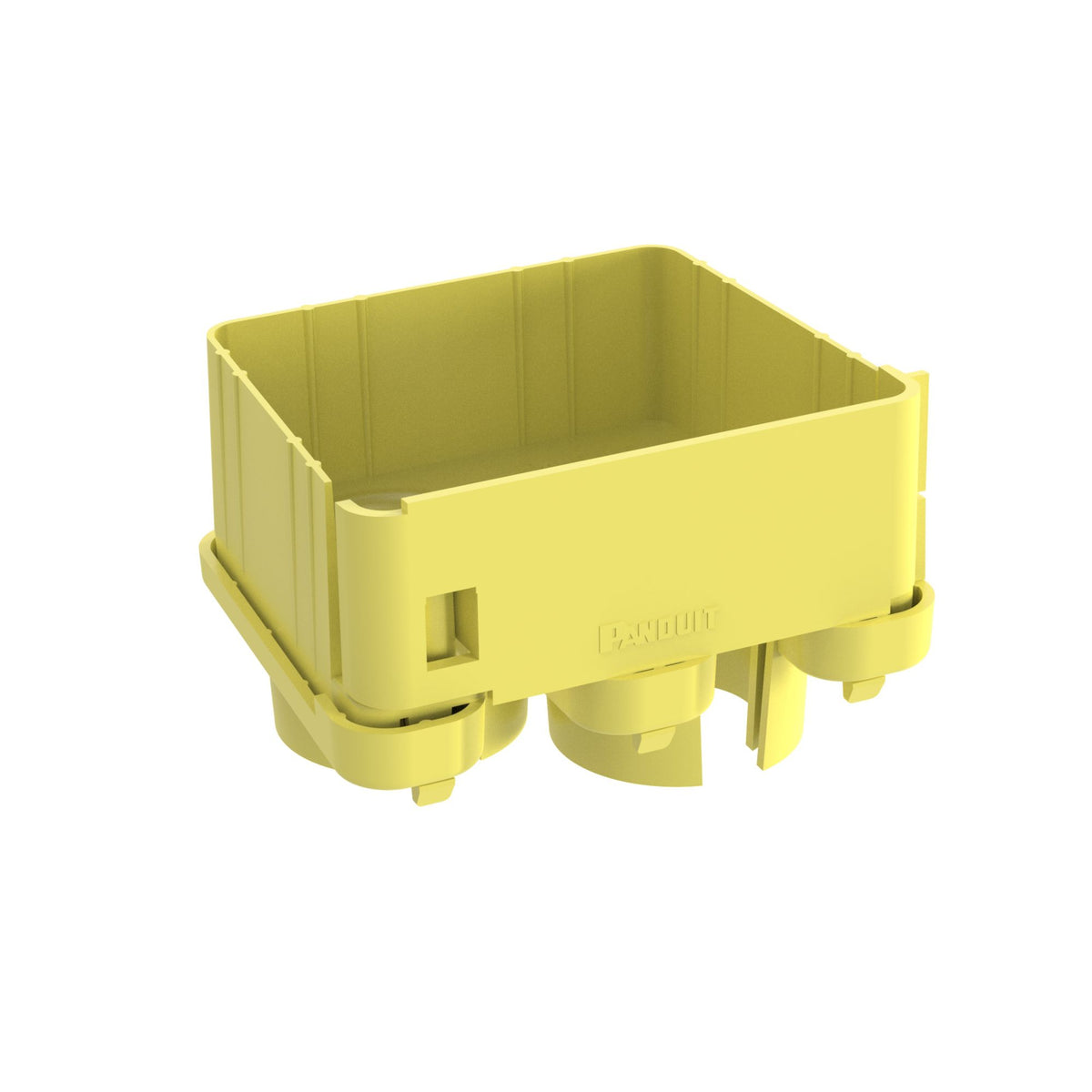

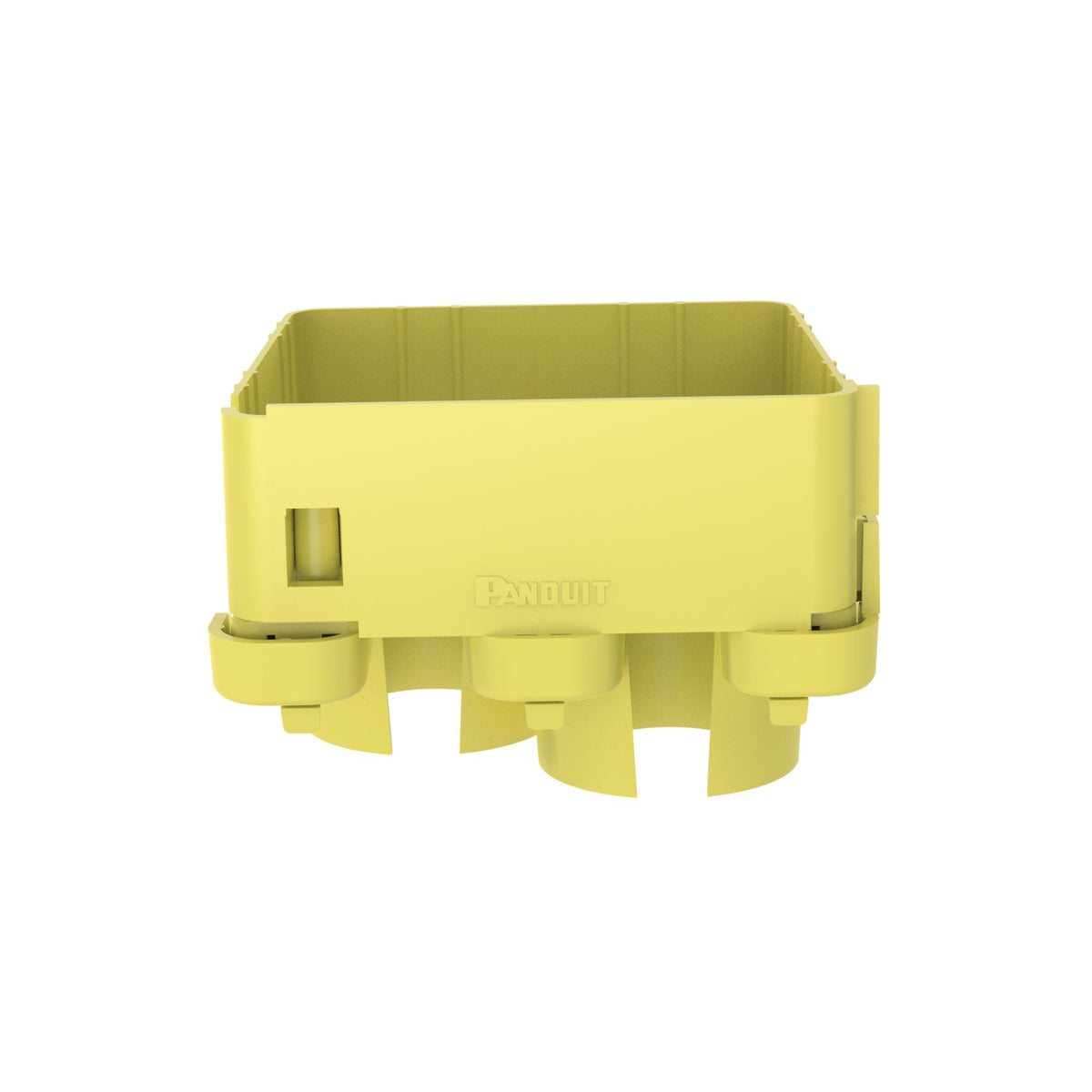

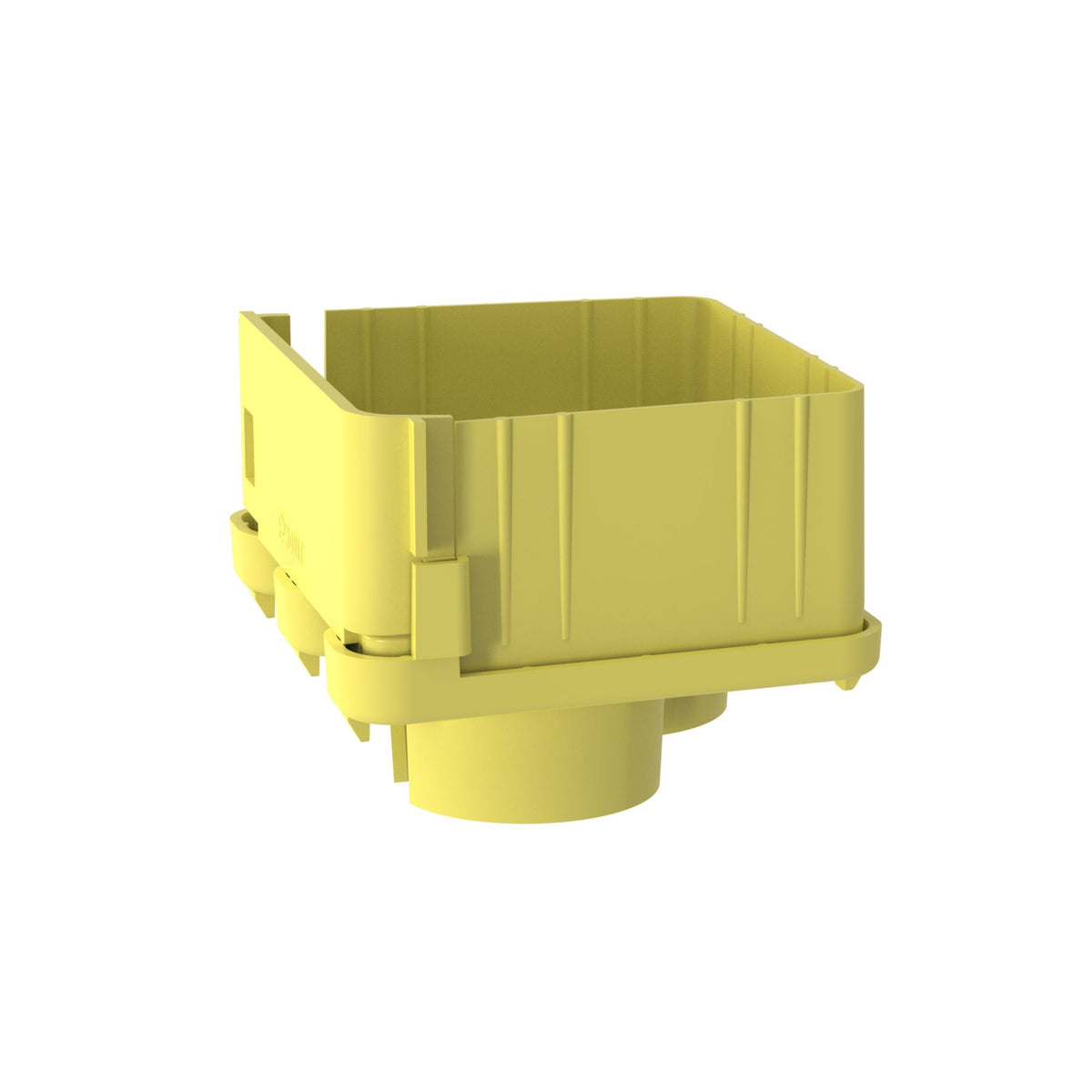

Panduit FRIDT4X4LYL | FiberRunner 2-Port Spillout, 4x4, Yellow
Regular price
$46.99
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FRIDT4X4LYL | FiberRunner 2-Port Spillout, 4x4, Yellow
Regular price
$46.99
Unit price
Description
Description
Panduit FRIDT4X4LYL | FiberRunner 2-Port Spillout, 4x4, Yellow
The FiberRunner 2-Port Spillout is used with a 4x4 fitting. The spillout is used to route cable into three separate 1.5 inch (3.8mm) diameter split corrugated tubing.
Panduit FRIDT4X4LYL Fiberrunner 2 Port Spill out To1.5" Corrugated Tubing yellow Lszh Abs Rohs
Specifications
Specifications
Panduit - FRIDT4X4LYL - Product Categories
- Wire Routing, Management & Protection
- Fiber Routing Spillouts
Panduit - FRIDT4X4LYL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FRIDT4X4LYL |
| Item Description | FiberRunner 2-Port Spillout, 4x4, Yellow |
| Application | Data Centers and Telco Central Offices |
| Product Type | 2-Port Spillout |
| Sub Brand | FiberRunner |
| Bend Radius (In.) | 2 |
| Bend Radius (mm) | 50.8 |
| For Use With | 4x4 FiberRunner System |
| Includes | (1) 2-Port Spill-Out Housing, (1) 2-Port Spill-Out Retainer, (1) 2-Port Spill-Out Hinged Door |
| Material | PC/ABS |
| Overall Height (In.) | 3.53 |
| Overall Height (mm) | 89.7 |
| Overall Length (In.) | 4.64 |
| Overall Length (mm) | 117.8 |
| Overall Width (In.) | 5.42 |
| Overall Width (mm) | 137.7 |
| Standards Met | RoHS Compliant, UL Listed to 2024A Optical Fiber Cable Routing Assemblies Compliant with the applicable tests in Telcordia GR-63-CORE Network Equipment Building Systems Level 3 |
| System Dimensions | 4x4 |
| Color | Yellow |
| Components | SPILLOUTS / DOWNSPOUTS |
| Finish | YELLOW |
| Material | PLASTIC |
| Type | CABLE ROUTING / WIRING DUCT |
| UNSPSC Code | 39131712 |
Panduit - FRIDT4X4LYL - Package Information
| UPC | 61305676429 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.1400 |
| Standard Ctn. Quantity | 5 |
| Standard Ctn. Volume (cf) | 0.7000 |
Panduit - FRIDT4X4LYL - Videos
| Video 1 | Click to View |
|---|
