Panduit FRIV4512X4OR | Fiberrunner Angled Fitting
Regular price
$328.26
Unit price
Brand: Panduit
|
SKU:
248038
Regular price
$328.26
Unit price
Description
Description

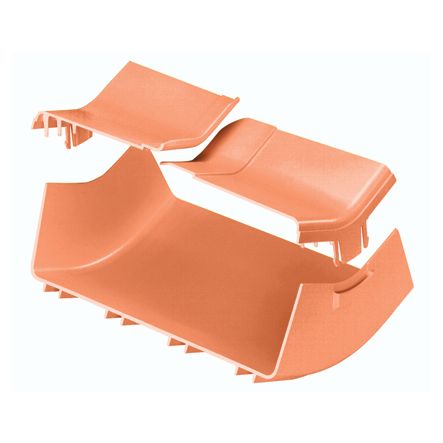

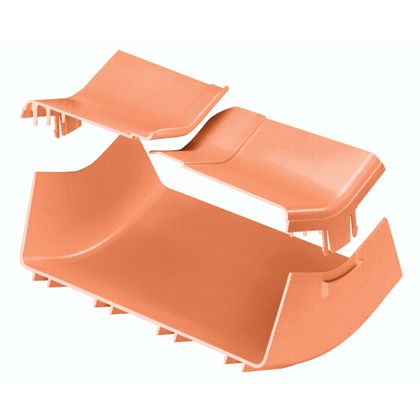

Panduit FRIV4512X4OR | Fiberrunner Angled Fitting
Panduit FRIV4512X4OR | FITTING | FIBBERRUNNER INSIDE 45 DEGREE
Attaches to 12x4 channel and/or fitting to create a 45° upward angle from a straight horizontal run. Used with outside vertical 45° angle fitting FROV4512X4OR to change level of a straight horizontal run. Includes split cover.
Specifications
Specifications
Panduit - FRIV4512X4OR - Product Categories
- Wire Routing, Management & Protection
- Fiber Routing Bends, Crosses, Tees & End Caps
Panduit - FRIV4512X4OR - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FRIV4512X4OR |
| Item Description | Fiberrunner Angled Fitting |
| Application | Segregate, Route, and Protect Fiber Optic and High Performance Copper Cabling. It is Suited for Data Center Applications where Cable is Routed from Distribution Areas to Equipment Cabinets or Racks. It is Used in Telco Central Offices to Route Fiber Optic |
| Product Type | Angled Fitting |
| Sub Brand | FiberRunner |
| Bend Radius (In.) | 2 |
| Bend Radius (mm) | 50.8 |
| Channel Material | Rigid PVC |
| Color | Orange |
| Fitting Type | Inside Vertical 45° |
| Fitting Material | ABS |
| For Use With | 12x4 |
| Material | ABS |
| Overall Height (In.) | 7.35 |
| Overall Height (mm) | 186.7 |
| Overall Length (In.) | 13.96 |
| Overall Length (mm) | 354.6 |
| Overall Width (In.) | 8.11 |
| Overall Width (mm) | 206 |
| Standards Met | RoHS Compliant, UL Listed to 2024A Optical Fiber Cable Routing Assemblies Compliant with the applicable tests in Telcordia GR-63-CORE Network Equipment Building Systems Level 3 |
| System Dimensions | 12x4 |
Panduit - FRIV4512X4OR - Package Information
| UPC | 07498383526 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.7004 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
Panduit - FRIV4512X4OR - Videos
| Video 1 | Click to View |
|---|
