Panduit FRIV4524X4LYL | FIBERRUNNER INSIDE VERTICAL ANGLE FITTING, ...
Regular price
$633.99
Unit price
Brand: Panduit
|
SKU:
10057503
Regular price
$633.99
Unit price
Description
Description

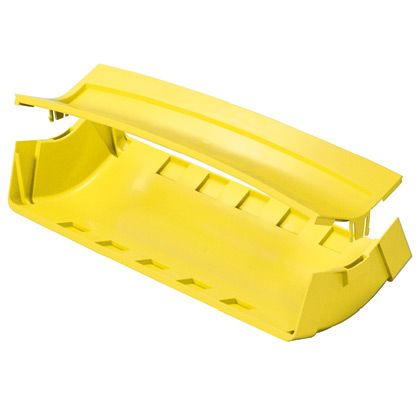

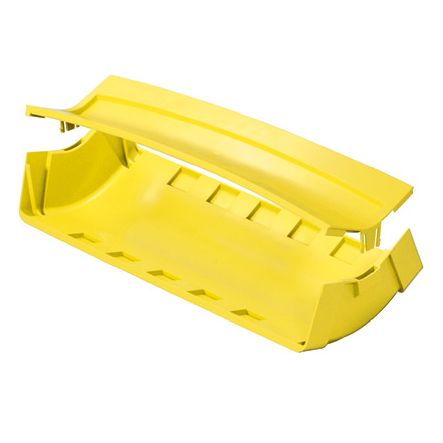

Panduit FRIV4524X4LYL | FIBERRUNNER INSIDE VERTICAL ANGLE FITTING, 45 DEGREE
The FiberRunner 24x4 Inside Vertical creates a 45° upward angle from a straight horizontal run. It is used with outside vertical 45° angle fitting FROV4524X4LYL to change the level of a straight horizontal run.
Panduit FRIV4524X4LYL Fitting And Cover, Insidevert. 45deg., 24x 4600mmx100mm Yl Lszh
Specifications
Specifications
Panduit - FRIV4524X4LYL - Product Categories
- Wire Routing, Management & Protection
- Fiber Routing Bends, Crosses, Tees & End Caps
Panduit - FRIV4524X4LYL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FRIV4524X4LYL |
| Item Description | FIBERRUNNER INSIDE VERTICAL ANGLE FITTING, 45 DEGREE |
| Application | Data Centers and Telco Central Offices |
| Product Type | Angled Fitting |
| Sub Brand | FiberRunner |
| Bend Radius (In.) | 3 |
| Bend Radius (mm) | 76.2 |
| Color | Yellow |
| For Use With | 24x4 FiberRunner System |
| Material | PC/ABS |
| Overall Height (In.) | 8.15 |
| Overall Height (mm) | 207 |
| Overall Length (In.) | 25.76 |
| Overall Length (mm) | 654.3 |
| Overall Width (In.) | 10.24 |
| Overall Width (mm) | 260.1 |
| Standards Met | RoHS Compliant, UL Listed to 2024A Optical Fiber Cable Routing Assemblies Compliant with the applicable tests in Telcordia GR-63-CORE Network Equipment Building Systems Level 3 |
| System Dimensions | 24x4 |
| Components | FITTINGS |
| Finish | YELLOW |
| Material | PLASTIC |
| Type | CABLE ROUTING / WIRING DUCT |
| UNSPSC Code | 39131712 |
Panduit - FRIV4524X4LYL - Package Information
| UPC | 61305676929 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 1.0901 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
Panduit - FRIV4524X4LYL - Videos
| Video 1 | Click to View |
|---|
