Panduit FRIVRA6X4LBL | FIBERRUNNER INSIDE VERTICAL ANGLE FITTING, 9...
Regular price
$178.01
Unit price
Brand: Panduit
|
SKU:
10142634
Regular price
$178.01
Unit price
Description
Description

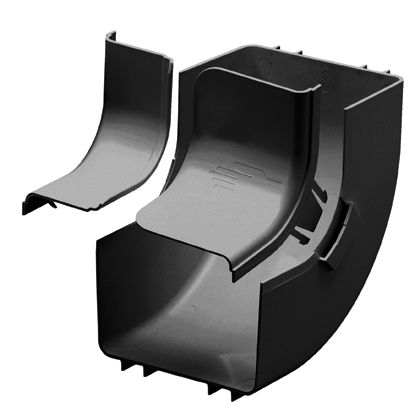

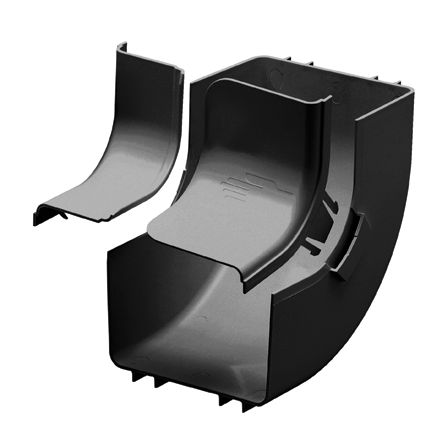

Panduit FRIVRA6X4LBL | FIBERRUNNER INSIDE VERTICAL ANGLE FITTING, 90 DEGREE
The FiberRunner 6x4 Inside Vertical creates a 90° upward angle from a straight horizontal run. It is used with outside vertical 90° angle fitting FROVRA6X4LBL to change the level of a straight horizontal run.
Panduit FRIVRA6X4LBL Fitting And Cover, inside vertical 90o, 6" X 4"150mmx100mm Fbr Lszh
Specifications
Specifications
Panduit - FRIVRA6X4LBL - Product Categories
- Wire Routing, Management & Protection
- Fiber Routing Bends, Crosses, Tees & End Caps
Panduit - FRIVRA6X4LBL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FRIVRA6X4LBL |
| Item Description | FIBERRUNNER INSIDE VERTICAL ANGLE FITTING, 90 DEGREE |
| Application | Data Centers and Telco Central Offices |
| Product Type | Angled Fitting |
| Sub Brand | FiberRunner |
| Bend Radius (In.) | 2 |
| Bend Radius (mm) | 50.8 |
| Color | Black |
| For Use With | 24x4 FiberRunner System |
| Material | PC/ABS |
| Overall Height (In.) | 8.64 |
| Overall Height (mm) | 219.4 |
| Overall Width (In.) | 7.08 |
| Overall Width (mm) | 179.8 |
| Standards Met | RoHS Compliant, UL Listed to 2024A Optical Fiber Cable Routing Assemblies Compliant with the applicable tests in Telcordia GR-63-CORE Network Equipment Building Systems Level 3 |
| System Dimensions | 6x4 |
| Components | COVERS |
| UNSPSC Code | 39131713 |
Panduit - FRIVRA6X4LBL - Package Information
| UPC | 61305676942 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.4048 |
| Standard Ctn. Quantity | 5 |
| Standard Ctn. Volume (cf) | 2.0241 |
Panduit - FRIVRA6X4LBL - Videos
| Video 1 | Click to View |
|---|
