Brand: Panduit
|
SKU:
326355
Panduit FRIVRA6X4OR | FiberRunner Angled Fitting Cover
Regular price
$173.96
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FRIVRA6X4OR | FiberRunner Angled Fitting Cover
Regular price
$173.96
Unit price
Description
Description

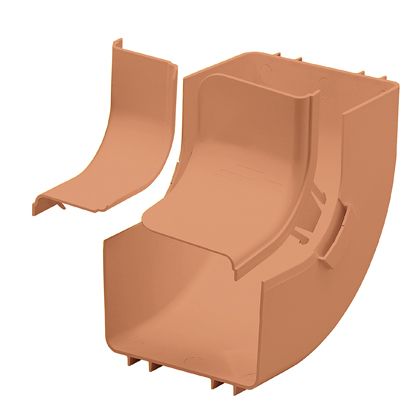

Panduit FRIVRA6X4OR | FiberRunner Angled Fitting Cover
Elevate your cable management with the our inside vertical fitting. Easily create a 90° upward angle from a horizontal run, ensuring seamless organization and efficient cable routing.
Panduit FiberRunner Angle Fitting, Inside Vertical, 8.64 in Length, 7.08 in W, 5.15 in Side Rail Height, 90 deg Bend, 2 in Bend Radius, Snap-In Mount, ABS, Orange
Panduit - FRIVRA6X4OR - Features
- Attaches to channel to create a 45 deg downward angle from a straight horizontal run
- Used with inside vertical 90 deg angle fitting FIVRA2X2BL or FIVRA4X4BL to change level of straight horizontal run
- Bend radius control in fittings helps prevent excessive bends in fiber optic and high performance copper cabling
- Provides a more secure installation for fiber or high performance copper cabling
- Snap-on covers, covers snap-on or off channel and fittings to enclose or gain access to system
- 4 x 4 in Fiber-Duct fitting
- Mates to Panduit cable management rack panels, provides methods to mate system to equipment mounted on standard EIA 19 or 23 in equipment racks and vertical cable managers
Specifications
Specifications
Panduit - FRIVRA6X4OR - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FRIVRA6X4OR |
| Product Type | Angled Fitting Cover |
| Sub Brand | FiberRunner |
| Application | Segregate, route, and protect fiber optic and high performance copper cabling. It is suited for data center applications where cable is routed from distribution areas to equipment cabinets or racks. It is used in Telco Central Offices to route fiber optic |
| Bend Radius (In.) | 2 |
| Bend Radius (mm) | 50.8 |
| Channel Material | Rigid PVC |
| Fitting Type | Inside Vertical 90° |
| Fitting Material | ABS |
| Material | ABS |
| For Use With | 6x4 |
| Overall Length (In.) | 7.08 |
| Overall Length (mm) | 179.8 |
| Overall Width (In.) | 7.08 |
| Overall Width (mm) | 179.8 |
| Overall Height (In.) | 8.64 |
| Overall Height (mm) | 219.4 |
| Standards Met | RoHS Compliant, UL Listed to 2024A Optical Fiber Cable Routing Assemblies Compliant with the applicable tests in Telcordia GR-63-CORE Network Equipment Building Systems Level 3 |
| System Dimensions | 6" x 4" |
| UPC | 07498378444 |
Panduit - FRIVRA6X4OR - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 3926.90.9985 |
Panduit - FRIVRA6X4OR - Videos
| Panduit FRIVRA6X4OR Video 1 | Click to View |
|---|
