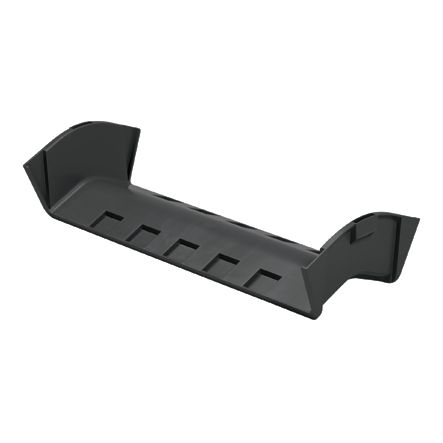

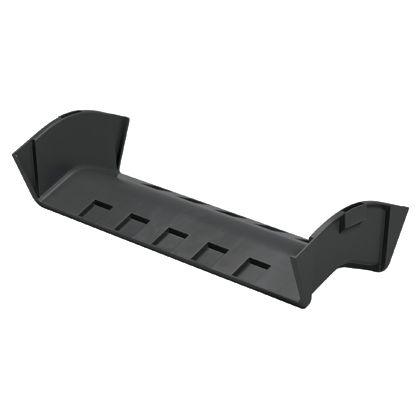

Panduit FROV4524X4LBL | FIBERRUNNER OUTSIDE VERTICAL ANGLE FITTING, 45 DEGREE
The FiberRunner 24x4 Outside Vertical creates a 45° downward angle from a horizontal run. It is used with inside vertical 45° angle fitting FRIV4524X4LBL to change the level of a horizontal run.
Panduit FROV4524X4LBL Fitting, outside Vertical45o, 24x 4 (600mm X 100mm), fiberrunner, bl Lszh
Specifications
Specifications
Panduit - FROV4524X4LBL - Product Categories
- Wire Routing, Management & Protection
- Fiber Routing Bends, Crosses, Tees & End Caps
Panduit - FROV4524X4LBL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FROV4524X4LBL |
| Item Description | FIBERRUNNER OUTSIDE VERTICAL ANGLE FITTING, 45 DEGREE |
| Application | Data Centers and Telco Central Offices |
| Product Type | Angled Fitting |
| Sub Brand | FiberRunner |
| Bend Radius (In.) | 3 |
| Bend Radius (mm) | 76.2 |
| Color | Black |
| For Use With | 4x4 FiberRunner System |
| Material | PC/ABS |
| Overall Height (In.) | 7.28 |
| Overall Height (mm) | 184.9 |
| Overall Length (In.) | 25.68 |
| Overall Length (mm) | 652.3 |
| Overall Width (In.) | 9.93 |
| Overall Width (mm) | 252.2 |
| Standards Met | RoHS Compliant, UL Listed to 2024A Optical Fiber Cable Routing Assemblies Compliant with the applicable tests in Telcordia GR-63-CORE Network Equipment Building Systems Level 3 |
| System Dimensions | 24x4 |
| Components | FITTINGS |
| UNSPSC Code | 39131713 |
Panduit - FROV4524X4LBL - Package Information
| UPC | 61305676950 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 1.2375 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
