Panduit FROV456X4LBL | FIBERRUNNER OUTSIDE VERTICAL ANGLE FITTING, ...
Regular price
$155.12
Unit price
Brand: Panduit
|
SKU:
10142647
Regular price
$155.12
Unit price
Description
Description

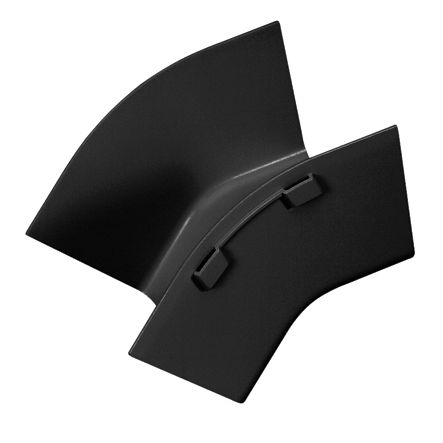

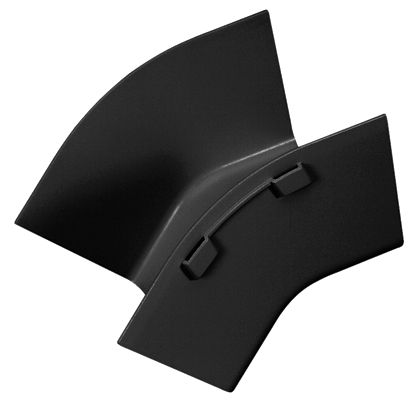

Panduit FROV456X4LBL | FIBERRUNNER OUTSIDE VERTICAL ANGLE FITTING, 45 DEGREE
The FiberRunner 6x4 Outside Vertical creates a 45° downward angle from a horizontal run. It is used with inside vertical 45° angle fitting FRIV456X4LBL to change the level of a horizontal run.
Panduit FROV456X4LBL 6" Outside 45deg Blacklszh
Specifications
Specifications
Panduit - FROV456X4LBL - Product Categories
- Wire Routing, Management & Protection
- Fiber Routing Bends, Crosses, Tees & End Caps
Panduit - FROV456X4LBL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FROV456X4LBL |
| Item Description | FIBERRUNNER OUTSIDE VERTICAL ANGLE FITTING, 45 DEGREE |
| Application | Data Centers and Telco Central Offices |
| Product Type | Angled Fitting |
| Sub Brand | FiberRunner |
| Bend Radius (In.) | 2 |
| Bend Radius (mm) | 50.8 |
| Color | Black |
| For Use With | 6x4 FiberRunner System |
| Material | PC/ABS |
| Overall Height (In.) | 6.08 |
| Overall Height (mm) | 154.4 |
| Overall Length (In.) | 7.04 |
| Overall Length (mm) | 178.8 |
| Overall Width (In.) | 7.47 |
| Overall Width (mm) | 189.7 |
| Standards Met | RoHS Compliant, UL Listed to 2024A Optical Fiber Cable Routing Assemblies Compliant with the applicable tests in Telcordia GR-63-CORE Network Equipment Building Systems Level 3 |
| System Dimensions | 6x4 |
| Components | FITTINGS |
| Finish | BLACK |
| Material | PLASTIC |
| Type | CABLE ROUTING / WIRING DUCT |
| UNSPSC Code | 39131713 |
Panduit - FROV456X4LBL - Package Information
| UPC | 61305676428 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.3087 |
| Standard Ctn. Quantity | 5 |
| Standard Ctn. Volume (cf) | 1.5436 |
Panduit - FROV456X4LBL - Videos
| Video 1 | Click to View |
|---|
