Brand: Panduit
|
SKU:
10142656

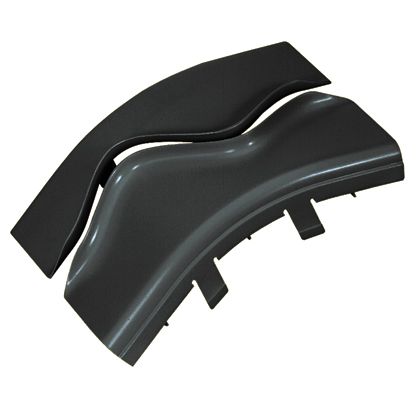

Panduit FROV45SC6LBL | FIBERRUNNER OUTSIDE VERTICAL ANGLE COVER, 45 DEGREE
Regular price
$112.44
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FROV45SC6LBL | FIBERRUNNER OUTSIDE VERTICAL ANGLE COVER, 45...
Regular price
$112.44
Unit price
Description
Description
Panduit FROV45SC6LBL | FIBERRUNNER OUTSIDE VERTICAL ANGLE COVER, 45 DEGREE
The FiberRunner 6x4 Outside Vertical Cover creates openings for easy access to add or remove cables.
Panduit - FROV45SC6LBL - Features
- Applications: Data Centers and Telco Central Offices
- Technical Info: RoHS Compliant, UL Listed to 2024A Optical Fiber Cable Routing Assemblies Compliant with the applicable tests in Telcordia GR-63-CORE Network Equipment Building Systems Level 3
Specifications
Specifications
Panduit - FROV45SC6LBL - Product Categories
- Hardware
- Hardware
- Hardware
- Wire Routing, Management & Protection
- Fiber Routing Bends, Crosses, Tees & End Caps
Panduit - FROV45SC6LBL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FROV45SC6LBL |
| Item Description | FIBERRUNNER OUTSIDE VERTICAL ANGLE COVER, 45 DEGREE |
| Application | Data Centers and Telco Central Offices |
| Product Type | Angled Fitting Cover |
| Sub Brand | FiberRunner |
| Bend Radius (In.) | 2 |
| Bend Radius (mm) | 50.8 |
| Color | Black |
| For Use With | 6x4 FiberRunner System |
| Material | PC/ABS |
| Overall Height (In.) | 4.28 |
| Overall Height (mm) | 108.7 |
| Overall Length (In.) | 7.84 |
| Overall Length (mm) | 199 |
| Overall Width (In.) | 6.86 |
| Overall Width (mm) | 174.4 |
| Standards Met | RoHS Compliant, UL Listed to 2024A Optical Fiber Cable Routing Assemblies Compliant with the applicable tests in Telcordia GR-63-CORE Network Equipment Building Systems Level 3 |
| System Dimensions | 6x4 |
| Components | Covers |
| UNSPSC Code | 39131713 |
Panduit - FROV45SC6LBL - Package Information
| UPC | 61305676728 |
|---|---|
| Std. Pkg. Qty. | 1 |
| Std. Pkg. Volume (cf) | 0.1593 |
| Std. Ctn. Qty. | 5 |
| Std. Ctn. Volume (cf) | 0.7963 |
Panduit - FROV45SC6LBL - Videos
| Video 1 | Click to View |
|---|
