Panduit FROVRA12X4YL | FiberRunner Angled Fitting
Regular price
$219.96
Unit price
Brand: Panduit
|
SKU:
546968
Regular price
$219.96
Unit price
Description
Description

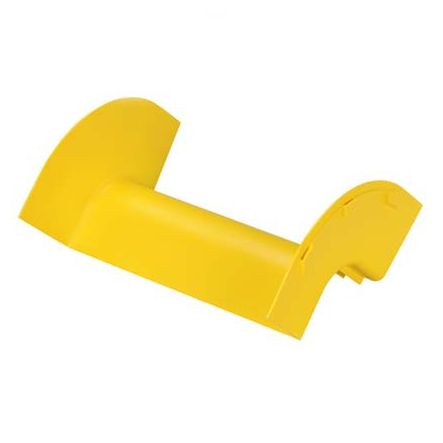

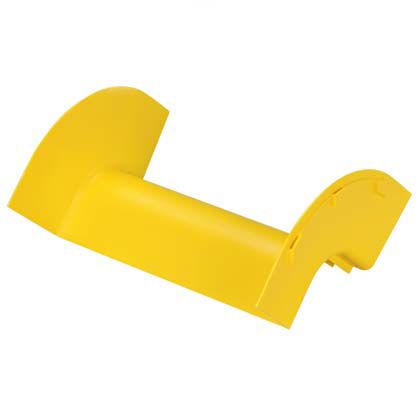

Panduit FROVRA12X4YL | FiberRunner Angled Fitting
Attaches to 12x4 channel and/or fittings to create a 90° vertical turn down from a straight horizontal run. Accepts optional split cover FROVRASC12YL.
Panduit FiberRunner 12x4 System Fittings - Cable raceway outside elbow fitting - yellow - FROVRA12X4YL.
Specifications
Specifications
Panduit - FROVRA12X4YL - Product Categories
- Wire Routing, Management & Protection
- Fiber Routing Bends, Crosses, Tees & End Caps
Panduit - FROVRA12X4YL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FROVRA12X4YL |
| Item Description | FiberRunner Angled Fitting |
| Application | Segregate, Route, and Protect Fiber Optic and High Performance Copper Cabling. It is Suited for Data Center Applications where Cable is Routed from Distribution Areas to Equipment Cabinets or Racks. It is Used in Telco Central Offices to Route Fiber Optic |
| Product Type | Angled Fitting |
| Sub Brand | FiberRunner |
| Bend Radius (In.) | 2 |
| Bend Radius (mm) | 50.8 |
| Channel Material | Rigid PVC |
| Color | Yellow |
| Fitting Type | Outside Vertical Right Angle |
| Fitting Material | ABS |
| For Use With | 12x4 |
| Material | ABS |
| Overall Height (In.) | 7.74 |
| Overall Height (mm) | 196.6 |
| Overall Length (In.) | 13.92 |
| Overall Length (mm) | 353.6 |
| Overall Width (In.) | 13.92 |
| Overall Width (mm) | 353.4 |
| Standards Met | RoHS Compliant, UL Listed to 2024A Optical Fiber Cable Routing Assemblies Compliant with the applicable tests in Telcordia GR-63-CORE Network Equipment Building Systems Level 3 |
| System Dimensions | 12x4 |
Panduit - FROVRA12X4YL - Package Information
| UPC | 07498383525 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.7071 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
Panduit - FROVRA12X4YL - Videos
| Video 1 | Click to View |
|---|
