Brand: Panduit
|
SKU:
10142662
Panduit FROVRA4X4LBL | FIBERRUNNER OUTSIDE VERTICAL RIGHT ANGLE, 90 DEGREE
Regular price
$165.30
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FROVRA4X4LBL | FIBERRUNNER OUTSIDE VERTICAL RIGHT ANGLE, 90...
Regular price
$165.30
Unit price
Description
Description

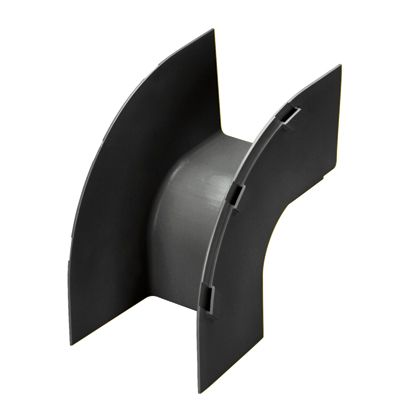

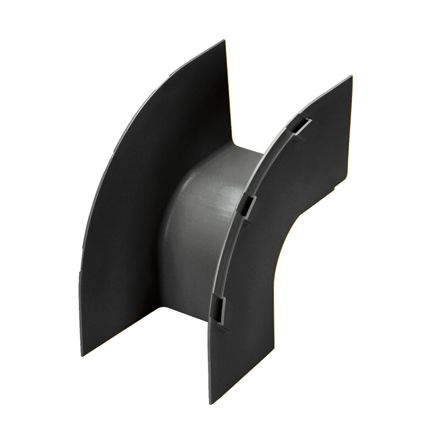

Panduit FROVRA4X4LBL | FIBERRUNNER OUTSIDE VERTICAL RIGHT ANGLE, 90 DEGREE
The FiberRunner 4x4 Outside Vertical creates a 90° vertical turn down from a straight horizontal run. It is used with inside vertical 90° angle fitting FRIVRA4X4LBL to change the level of a straight horizontal run.
Panduit FROVRA4X4LBL Fiberrunner 4x4 Outside vertical Right Angle Fittingrohs Lszh
Specifications
Specifications
Panduit - FROVRA4X4LBL - Product Categories
- Wire Routing, Management & Protection
- Fiber Routing Bends, Crosses, Tees & End Caps
Panduit - FROVRA4X4LBL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FROVRA4X4LBL |
| Item Description | FIBERRUNNER OUTSIDE VERTICAL RIGHT ANGLE, 90 DEGREE |
| Application | Data Centers and Telco Central Offices |
| Product Type | Angled Fitting |
| Sub Brand | FiberRunner |
| Bend Radius (In.) | 2 |
| Bend Radius (mm) | 50.8 |
| Color | Black |
| For Use With | 4x4 FiberRunner System |
| Material | PC/ABS |
| Overall Height (In.) | 7.74 |
| Overall Height (mm) | 196.6 |
| Overall Length (In.) | 7.74 |
| Overall Length (mm) | 196.6 |
| Overall Width (In.) | 5.49 |
| Overall Width (mm) | 139.5 |
| Standards Met | RoHS Compliant, UL Listed to 2024A Optical Fiber Cable Routing Assemblies Compliant with the applicable tests in Telcordia GR-63-CORE Network Equipment Building Systems Level 3 |
| System Dimensions | 4x4 |
| Components | FITTINGS |
| Finish | BLACK |
| Material | PLASTIC |
| Type | CABLE ROUTING / WIRING DUCT |
| UNSPSC Code | 39131713 |
Panduit - FROVRA4X4LBL - Package Information
| UPC | 61305676721 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.3172 |
| Standard Ctn. Quantity | 5 |
| Standard Ctn. Volume (cf) | 1.5858 |
