Brand: Panduit
|
SKU:
10142668

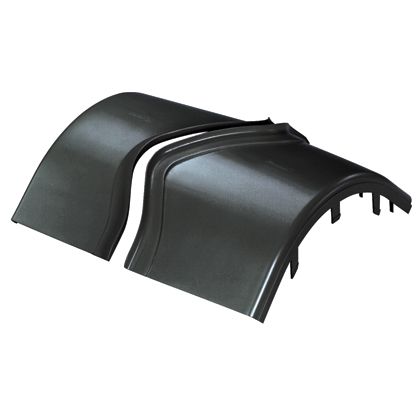

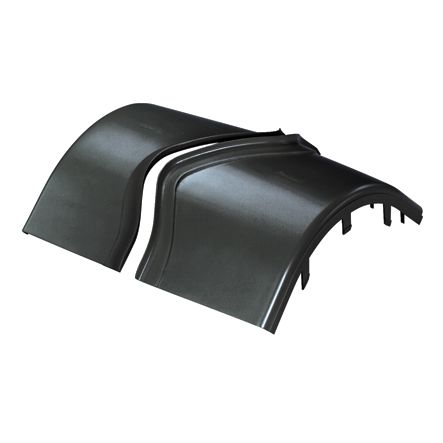

Panduit FROVRASC12LBL | FIBERRUNNER COVER 12X4 OUTSIDE VERTICAL RIGHT-ANGLE, LSZH, BLACK
Regular price
$212.33
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FROVRASC12LBL | FIBERRUNNER COVER 12X4 OUTSIDE VERTICAL RIG...
Regular price
$212.33
Unit price
Description
Description
Panduit FROVRASC12LBL | FIBERRUNNER COVER 12X4 OUTSIDE VERTICAL RIGHT-ANGLE, LSZH, BLACK
The FiberRunner 12x4 Outside Vertical Right-Angle Cover creates openings for easy access to add or remove cables.
Panduit FROVRASC12LBL Fiberrunner Split Cover 12x490 Deg Outside Vert Angle black Rohs Lszh
Specifications
Specifications
Panduit - FROVRASC12LBL - Product Categories
- Wire Routing, Management & Protection
- Fiber Routing Bends, Crosses, Tees & End Caps
Panduit - FROVRASC12LBL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FROVRASC12LBL |
| Item Description | FIBERRUNNER COVER 12X4 OUTSIDE VERTICAL RIGHT-ANGLE, LSZH, BLACK |
| Application | Data Centers and Telco Central Offices |
| Product Type | Angled Fitting Cover |
| Sub Brand | FiberRunner |
| Bend Radius (In.) | 2 |
| Bend Radius (mm) | 50.8 |
| Color | Black |
| For Use With | 12x4 FiberRunner System |
| Material | PC/ABS |
| Overall Height (In.) | 9.26 |
| Overall Height (mm) | 235.2 |
| Overall Width (In.) | 13.7 |
| Overall Width (mm) | 348 |
| Standards Met | RoHS Compliant, UL Listed to 2024A Optical Fiber Cable Routing Assemblies Compliant with the applicable tests in Telcordia GR-63-CORE Network Equipment Building Systems Level 3 |
| System Dimensions | 12x4 |
| Channel | SINGLE |
| Components | COVER |
| Type | NON-METALLIC |
| Latching | YES |
| UNSPSC Code | 39131709 |
Panduit - FROVRASC12LBL - Package Information
| UPC | 61305676723 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.2568 |
| Standard Ctn. Quantity | 5 |
| Standard Ctn. Volume (cf) | 1.2840 |
Panduit - FROVRASC12LBL - Videos
| Video 1 | Click to View |
|---|
