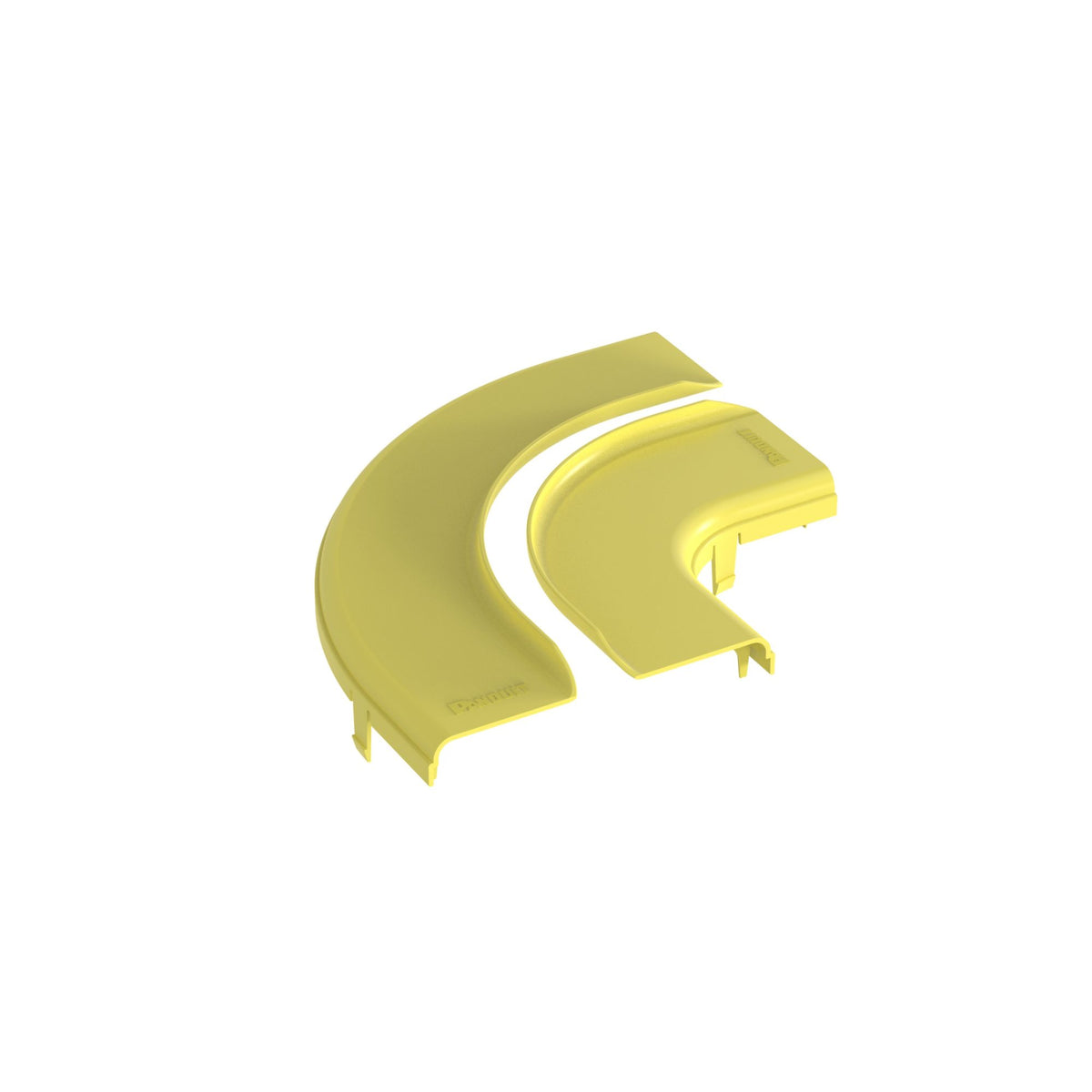

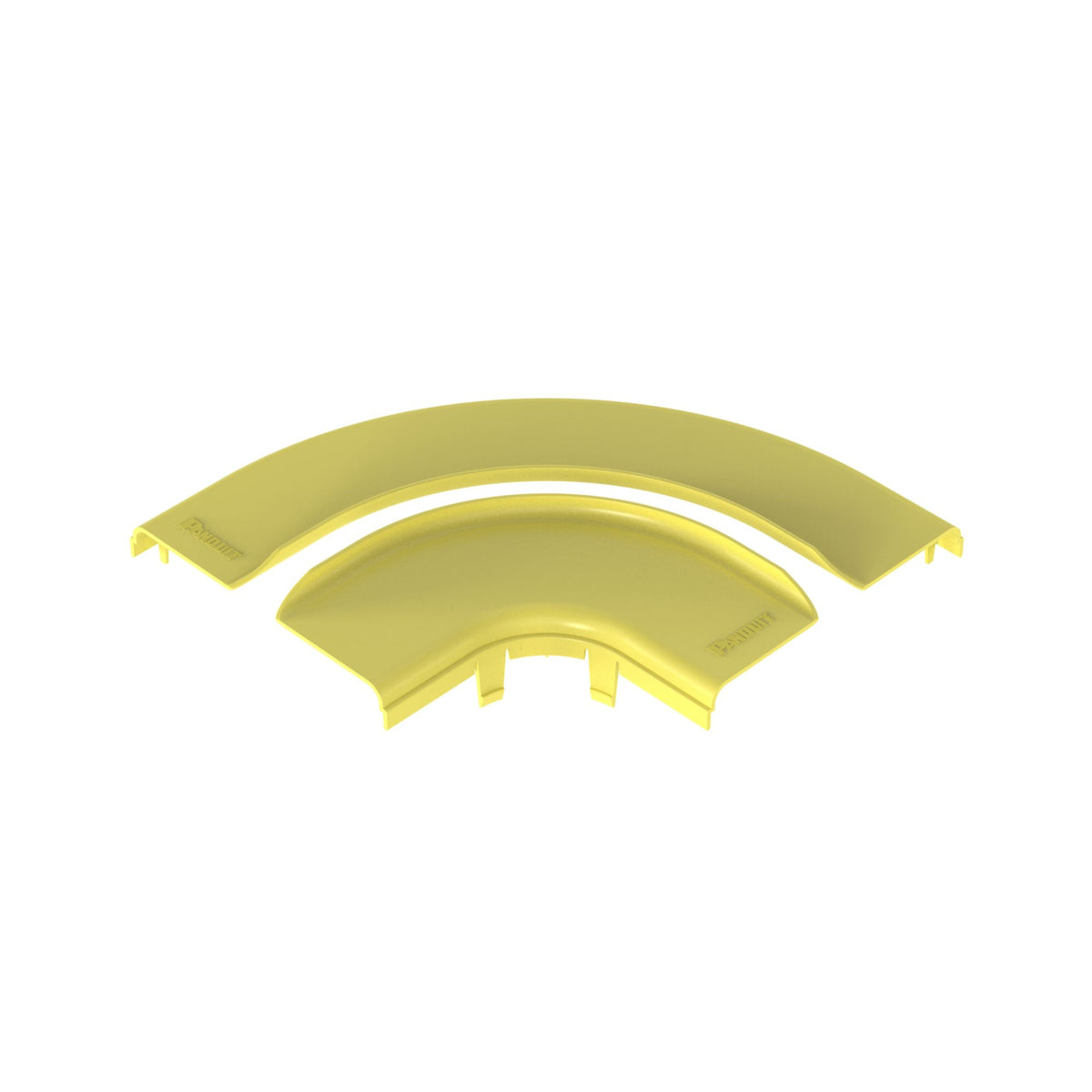

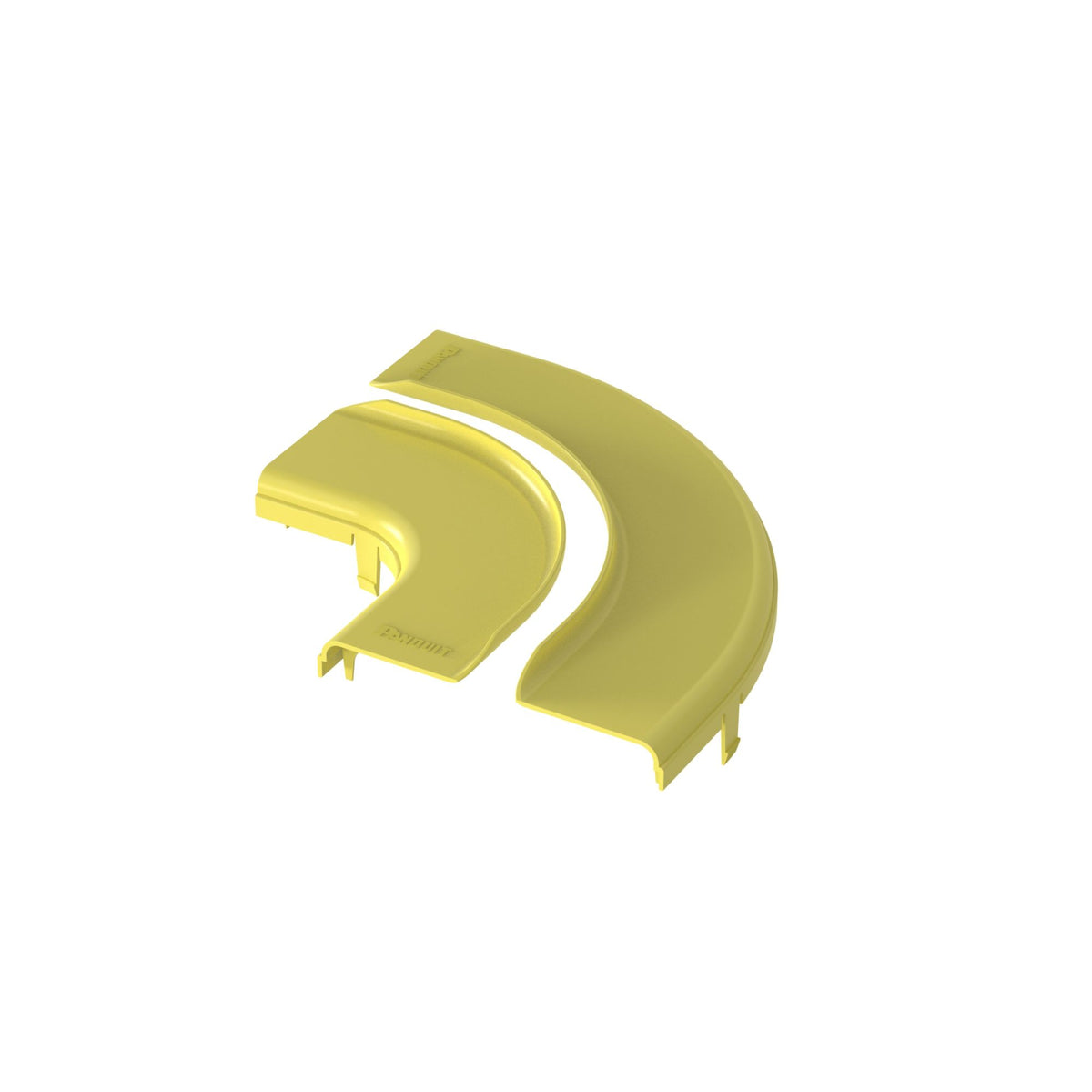

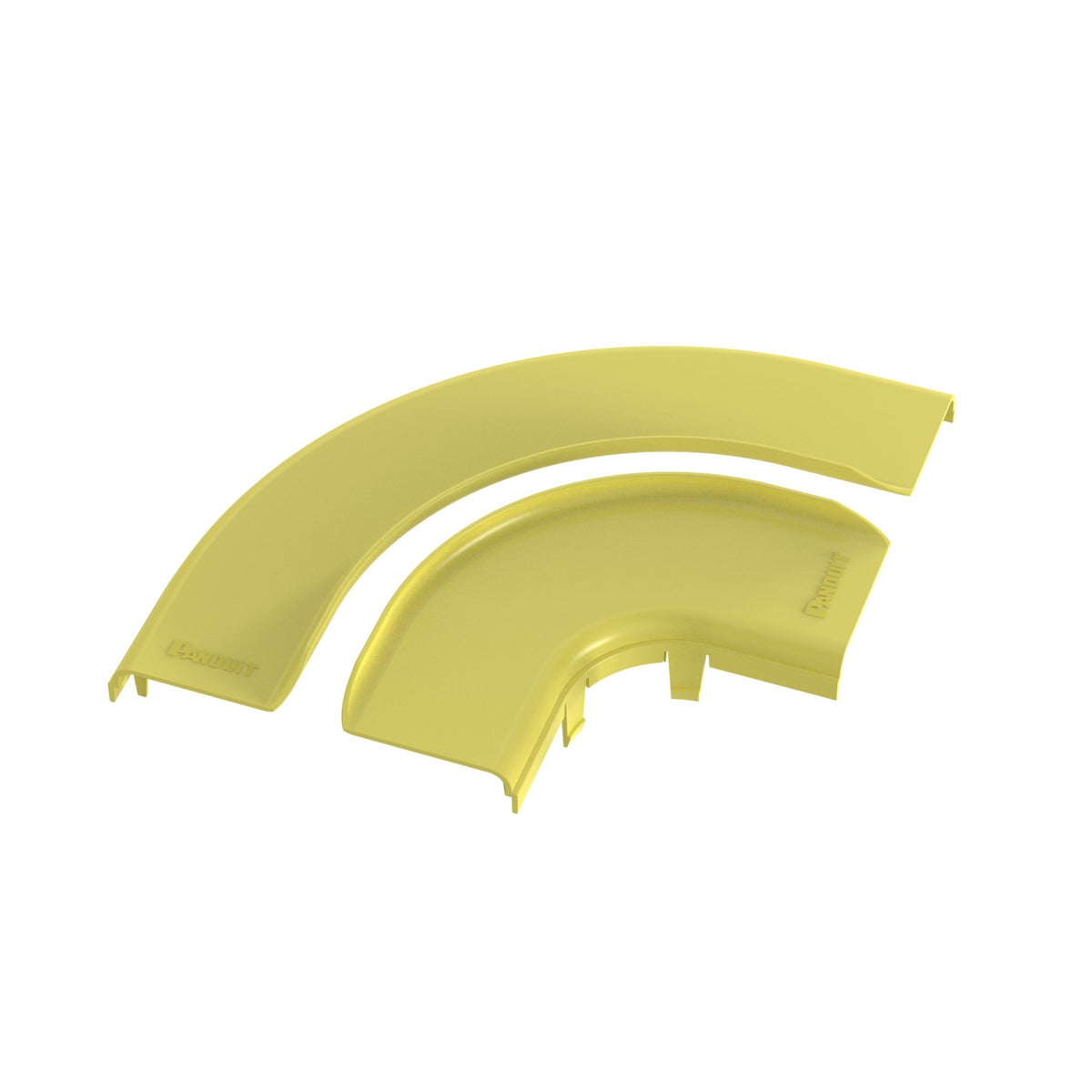

Panduit FRRASC6LYL | FiberRunner Split Cover, Horizontal Right-Angle, 6x4, Yellow
Regular price
$132.24
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FRRASC6LYL | FiberRunner Split Cover, Horizontal Right-Angl...
Regular price
$132.24
Unit price
Description
Description
Panduit FRRASC6LYL | FiberRunner Split Cover, Horizontal Right-Angle, 6x4, Yellow
The FiberRunner 6x4 Split Cover is optional for the horizontal right-angle fitting FRRA6X4LYL. The snap-on feature allows the cover to be installed and removed with no tools required. The split cover creates a radiused 0.75 inch (19mm) opening for easy access to add or remove cables.
Panduit FRRASC6LYL Split Cover, Horiz. Right angle, 6"x4" (150mmx100mm), yl Lszh
Specifications
Specifications
Panduit - FRRASC6LYL - Product Categories
- Wire Routing, Management & Protection
- Fiber Routing Bends, Crosses, Tees & End Caps
Panduit - FRRASC6LYL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FRRASC6LYL |
| Item Description | FiberRunner Split Cover, Horizontal Right-Angle, 6x4, Yellow |
| Application | Data Centers and Telco Central Offices |
| Product Type | Angled Fitting Cover |
| Sub Brand | FiberRunner |
| Bend Radius (In.) | 2 |
| Bend Radius (mm) | 50.8 |
| Color | Yellow |
| Fitting Type | Horizontal Right Angle |
| Fitting Material | PC/ABS |
| For Use With | 6x4 FiberRunner System |
| Material | PC/ABS |
| Overall Height (In.) | 2.15 |
| Overall Height (mm) | 54.6 |
| Overall Length (In.) | 10.68 |
| Overall Length (mm) | 271.3 |
| Standards Met | RoHS Compliant, UL Listed to 2024 Optical Fiber Cable Routing Assemblies Compliant with the applicable tests in Telcordia GR-63-CORE Network Equipment Building Systems Level 3 |
| System Dimensions | 6X4 |
| Components | COVERS |
| Finish | YELLOW |
| Material | PLASTIC |
| Type | CABLE ROUTING / WIRING DUCT |
| UNSPSC Code | 39131712 |
Panduit - FRRASC6LYL - Package Information
| UPC | 61305676435 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.1487 |
| Standard Ctn. Quantity | 5 |
| Standard Ctn. Volume (cf) | 0.7435 |
