Panduit FRRF126OR | Reducer | UPC - 07498383518
Regular price
$221.70
Unit price
Brand: Panduit
|
SKU:
FRRF126OR
Regular price
$221.70
Unit price
Description
Description

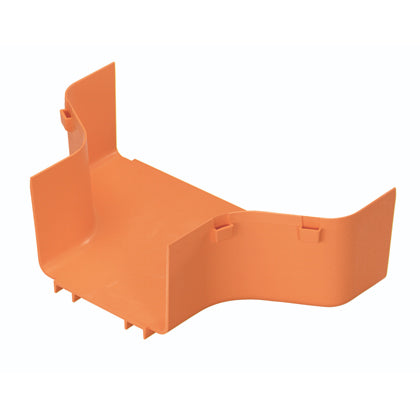

The fitting attaches any 12x4 FiberRunner Fitting or Channel to any 6x4 FiberRunner Fitting or Channel. It is orange and made of ABS plastic. It accepts split cover FRRF126SCOR.
Panduit FRRF126OR | Reducer | UPC - 07498383518 Key Specs
| Application | Suited for Data Center Applications where Cable is Routed from Distribution Areas to Equipment Cabinets or Racks. Used in Telco Central Offices to Route Fiber Optic Jumper Cables between Fiber Distribution Frames and Equipment Bays |
| Product Type | Reducer |
| Color | Orange |
| Connector 1 Type | 12" Reducer Left Fitting |
| Connector 2 Type | 6" Reducer Left Fitting |
| For Use With | Fiber Optic Jumper Cables |
| Includes | FiberRunner (1) 24X4,(1) 12x4, (1) 6x4, and (1) 2x2 Routing Systems, the Fiber-Duct (1) 4x4 and (1) 2x2 Routing Systems, Wyr-Grid Overhead Cable Tray System, Cable Management, and Racks |
| Material | ABS |
| Overall Length (In.) | 9.75 |
| Overall Length (mm) | 247.6 |
| Overall Depth (In.) | 9.75 |
| Overall Depth (mm) | 247.6 |
| Overall Height (In.) | 4.22 |
| Overall Height (mm) | 107.2 |
| Sub Brand | FiberRunner |
| Overall Width (In.) | 13.68 |
| Overall Width (mm) | 347.5 |
| Standards Met | UL Listed to 2024A Optical Fiber Cable Routing Assemblies Compliant with the Applicable Tests in Telcordia GR-63-CORE Network Equipment Building Systems Level 3,RoHS Compliant |
| System Dimensions | 12x4 |
Panduit FRRF126OR | Reducer | UPC - 07498383518 Data Sheets
| Application Guides | FiberRunner Cable Routing System: SA-FRCB02 | Download and View |
| Installation Documents | Installation Instructions/Best Practices - RW138B_05 | Download and View |
Panduit FRRF126OR | Reducer | UPC - 07498383518 Environmental Information
| Panduit's RoHS Statement | Download and View |
