Panduit FRRF2412YL | FiberRunner Reducer
Regular price
$420.03
Unit price
Brand: Panduit
|
SKU:
593914
Regular price
$420.03
Unit price
Description
Description

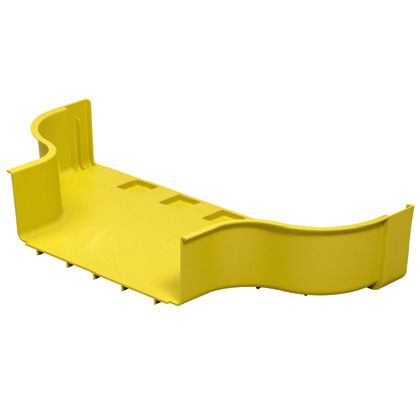

Panduit FRRF2412YL | FiberRunner Reducer
Ensure efficient cable management with our 24" x 4" to 12" x 4" fitting. Seamlessly connect larger and smaller channels, ideal for data centers and network installations.
Panduit FiberRunner Reducer Fitting, For Use With: FiberRunner 24 x 4 in Routing System Fitting, 291.5 mm L x 25.47 in W x 4.48 in H, 2 in Bend Radius, ABS, Yellow
Panduit - FRRF2412YL - Features
- Assembled into the FRVT12X4YL 6 x 4 in vertical tee or FRVT12X4YL 4 x 4 in vertical tee with an audible snap, allows for the transition to FiberRunner 2 x 2 in or Fiber-Duct 2 x 2 in channel with minimal space required
- No tools required for assembly
- Robust system of channel, covers, fittings and other non-metallic system components protect cable from physical damage, system includes full range of directional and spill out fittings
Specifications
Specifications
Panduit - FRRF2412YL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FRRF2412YL |
| Product Type | Fiber Routing Reducer |
| Application | To Route, Manage, and Protect Fiber Optic and High Performance Copper Cabling above Network Racks and Cabinets within Data Centers and Service Provider Facilities |
| Color | Yellow |
| Connector 1 Type | 24" Exit |
| Connector 2 Type | 12" Exit |
| For Use With | Fiber Optic Jumper Cables |
| Includes | FiberRunner (1) 12X4,(1) 6x4, (1) 4x4, and (1) 2x2 Routing Systems, the Fiber-Duct (1) 4x4 and (1) 2x2 Routing Systems, Wyr-Grid Overhead Cable Tray System, cable management, and racks. |
| Material | ABS |
| Overall Length (In.) | 11.48 |
| Overall Length (mm) | 291.6 |
| Overall Depth (In.) | 11.48 |
| Overall Depth (mm) | 291.6 |
| Overall Width (In.) | 25.47 |
| Overall Width (mm) | 647 |
| Overall Height (In.) | 4.48 |
| Overall Height (mm) | 113.8 |
| Sub Brand | FiberRunner |
| Standards Met | UL Listed to 2024A Optical Fiber Cable Routing Assemblies (Does not include 24x4 covers),RoHS Compliant |
| System Dimensions | 24x4, 12x4 |
| UPC | 07498311192 |
Panduit - FRRF2412YL - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 3926.90.9985 |
Panduit - FRRF2412YL - Videos
| Panduit FRRF2412YL Video 1 | Click to View |
|---|
