Brand: Panduit
|
SKU:
FRRMBNF58
Panduit FRRMBNF58 | FIBERRUNNER RACK MOUNT BRACKET
Regular price
$116.18
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FRRMBNF58 | FIBERRUNNER RACK MOUNT BRACKET
Regular price
$116.18
Unit price
Description
Description

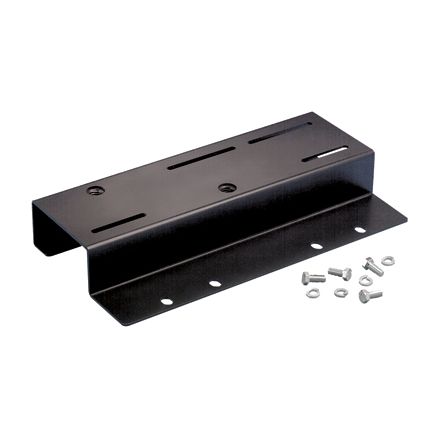

Panduit FRRMBNF58 | FIBERRUNNER RACK MOUNT BRACKET
Used to support the 6x4 and 4x4 systems attaching to the top of NetFrame or NetRack Rack. (Contains all necessary mounting hardware.) Bracket accepts 5/8" threaded rod.
Specifications
Specifications
Panduit - FRRMBNF58 - Product Categories
- Wire Routing, Management & Protection
- Fiber Routing Mounting Brackets & Hardware
Panduit - FRRMBNF58 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FRRMBNF58 |
| Item Description | FIBERRUNNER RACK MOUNT BRACKET |
| Application | (1) The Fiberrunner 6X4 Routing System is a System of Channel, Fittings and Brackets Designed to Segregate, Route, and Protect Fiber Optic and High PerformanceCopper Cabling. (2) it is Suited for Data Center Applications |
| Product Type | Rack Mount Bracket |
| Sub Brand | FiberRunner |
| Color | Black |
| For Use With | NetFrame or NetRack Rack |
| Includes | (1) Bracket, (4) 1/4-20 X 3/4 Hex Head Cap Screws, (4) 1/4 Helical Spring Lockwashers, (1) 5/8-11 Heavy Hex Nut, (1) 5/8 Helical Spring Lockwasher. |
| Material | Steel |
| Number of Pieces | 11 |
| Overall Height (In.) | 2.68 |
| Overall Height (mm) | 68.1 |
| Overall Length (In.) | 14.28 |
| Overall Length (mm) | 362.7 |
| Overall Width (In.) | 7.15 |
| Overall Width (mm) | 181.6 |
| Standards Met | UL Listed to 2024 Optical Fiber Cable Routing Assemblies Compliant with the Applicable Tests in Telcordia Gr-63-Core Network Equipment Building Systems Level 3, LP-CSISPEC-FR |
| System Dimensions | 4x4, 6x4 |
| Angle | 90° |
| Compatible Threaded Rod Size (In.) | 0.63 |
| Compatible Threaded Rod Size (mm) | 15.9 |
| Series Type | 4 x 4 and 6 x 4 FiberRunner Brackets |
Panduit - FRRMBNF58 - Package Information
| UPC | 07498384748 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.3717 |
| Standard. Ctn. Quantity | 0 |
| Standard. Ctn. Volume (cf) | 0.0000 |
