Brand: Panduit
|
SKU:
330729
Panduit FRSHC4YL2 | FIBERRUNNER COVER FOR CHANNEL FR4X4YL2, YELLOW
Regular price
$144.95
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FRSHC4YL2 | FIBERRUNNER COVER FOR CHANNEL FR4X4YL2, YELLOW
Regular price
$144.95
Unit price
Description
Description
Panduit FRSHC4YL2 | FIBERRUNNER COVER FOR CHANNEL FR4X4YL2, YELLOW

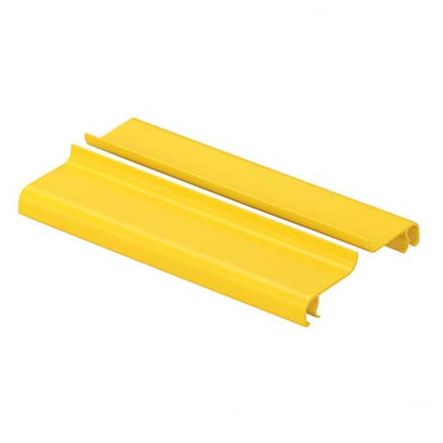

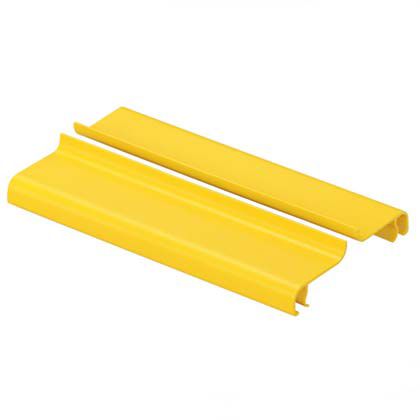

Optional split hinged cover for the channel FR4X4YL2. Creates radiused 3/4 (19mm) opening for easy access to add or remove cables. Snap-on hinge feature enables positioning of cover at angles between 30° and 90°.
Panduit FiberRunner - Cable raceway split hinged cover - yellow - FRSHC4YL2.
Specifications
Specifications
Panduit - FRSHC4YL2 - Product Categories
- Wire Routing, Management & Protection
- Fiber Routing Channel & Covers
Panduit - FRSHC4YL2 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FRSHC4YL2 |
| Item Description | FIBERRUNNER COVER FOR CHANNEL FR4X4YL2, YELLOW |
| Application | (1)The Fiber-Runner 4X4 Routing Systems are Comprised of Channel, Fittings, and Brackets Designedt to Segregate, Route, and Protect Fiber Optic Cable and Copper Cabling.(2) It is Suited for Data Center Applications where Cable is Routed from Distributio |
| Product Type | Cover |
| Channel Material | Rigid PVC |
| Color | Yellow |
| For Use With | FR4X4YL2 |
| Flammability Rating | 94V-0 |
| Material | PVC |
| Overall Height (In.) | 5.07 |
| Overall Height (mm) | 128.8 |
| Sub Brand | FiberRunner |
| Overall Length (ft.) | 6.56 |
| Overall Length (m) | 2 |
| Overall Width (In.) | 1.19 |
| Overall Width (mm) | 30.2 |
| Standards Met | UL Listed to 2024A,GR-63-CORE,RoHS Compliant |
| System Dimensions | 4x4 |
Panduit - FRSHC4YL2 - Package Information
| UPC | 07498384198 |
|---|---|
| Standard Package Quantity | 2 |
| Standard Package Volume (cf) | 0.1623 |
| Standard Ctn. Quantity | 8 |
| Standard Ctn. Volume (cf) | 0.6492 |
Panduit - FRSHC4YL2 - Videos
| Video 1 | Click to View |
|---|---|
| Video 2 | Click to View |
