Panduit FRSPJ4X4YL | FiberRunner Spill-Over Fitting, 4x4, Yellow
Regular price
$276.10
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FRSPJ4X4YL | FiberRunner Spill-Over Fitting, 4x4, Yellow
Regular price
$276.10
Unit price
Description
Description
Panduit FRSPJ4X4YL | FiberRunner Spill-Over Fitting, 4x4, Yellow

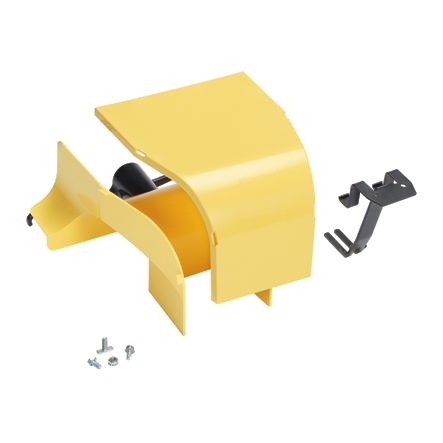

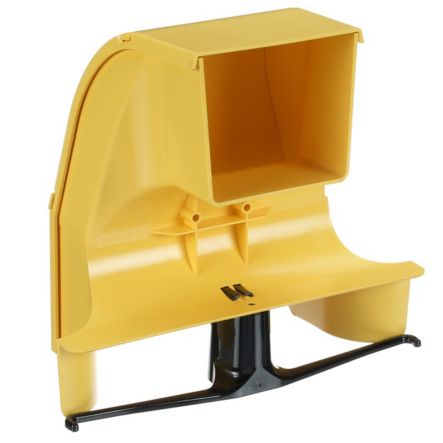

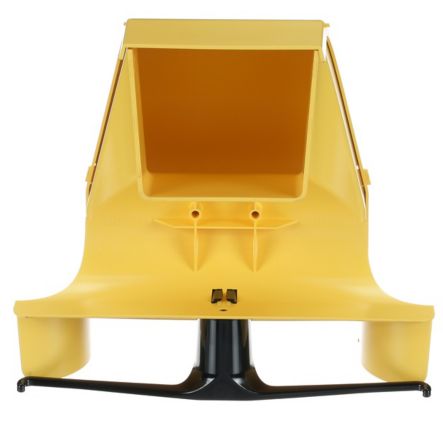

The FiberRunner 4x4 Spill-Over Junction Fitting is used in cable routing systems. It assembles onto 4x4, 6x4, 12x4, or 24x4 FiberRunner Channels. It mounts directly to the existing installation with no alteration required. The spill-over junction fitting includes mounting hardware.
Panduit - FRSPJ4X4YL - Features
- Spill-overs allow safe transition from horizontal to vertical runs
- 2 Inch (50.8 mm) bend radius control
- Transition to channel, slotted channel and corrugated loom tubing
- Spill-over junction fittings can be retro-fitted to existing horizontal runs
- Spilling over the side into a 4x4 vertical exit
- Requires coupler to attach 4x4 FiberRunner channel and fittings to the vertical exit
- Mounts directly to existing installation with no alteration required
- Mounting hardware provided for secure attachment
- Cover - FRSPJC44YL for 4x4 Channel FRSPJC46YL for 6x4 Channel FRSPJC412YL for 12x4 Channel
- (1) FRBC4X4YL couplers required
Specifications
Specifications
Panduit - FRSPJ4X4YL - Product Categories
- Wire Routing, Management & Protection
- Fiber Routing Spillouts
Panduit - FRSPJ4X4YL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FRSPJ4X4YL |
| Item Description | FiberRunner Spill-Over Fitting, 4x4, Yellow |
| Application | Routing System is a System of Channel, Fittings and Brackets Designed to Segregate, Route, and Protect Fiber Optic and High Performance Copper Cabling. It is Suited for Data Center Applications where Cable is Routed from Distribution Areas to Equipment |
| Product Type | Spill-Over Junction |
| Sub Brand | FiberRunner |
| Bend Radius (In.) | 2 |
| Bend Radius (mm) | 50.8 |
| For Use With | 4x4, 6x4, 12x4, or 24x4 FiberRunner Channel |
| Includes | (1) Base Assembly, (1) Throat Cover, (1) Support Bracket, (1) 1/4-20 T-Bolt, (1) 1/4-20 Hex Keps Lock Nut, (2) 1/4- 14 X 1/2 Hex Washer Head Tapping Screws |
| Material | ABS |
| Overall Height (In.) | 6.06 |
| Overall Height (mm) | 153.9 |
| Overall Length (In.) | 10.79 |
| Overall Length (mm) | 274.1 |
| Overall Width (In.) | 12.07 |
| Overall Width (mm) | 306.6 |
| Standards Met | UL Listed to 2024A, RoHS Compliant |
| System Dimensions | 4x4 |
| Color | Yellow |
| Part Features | It is suited for data center applications where cable is routed from distribution areas to equipment cabinets or racks |
Panduit - FRSPJ4X4YL - Package Information
| UPC | 07498306619 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.6347 |
| Standard. Ctn. Quantity | 0 |
| Standard. Ctn. Volume (cf) | 0.0000 |
