Brand: Panduit
|
SKU:
9992105

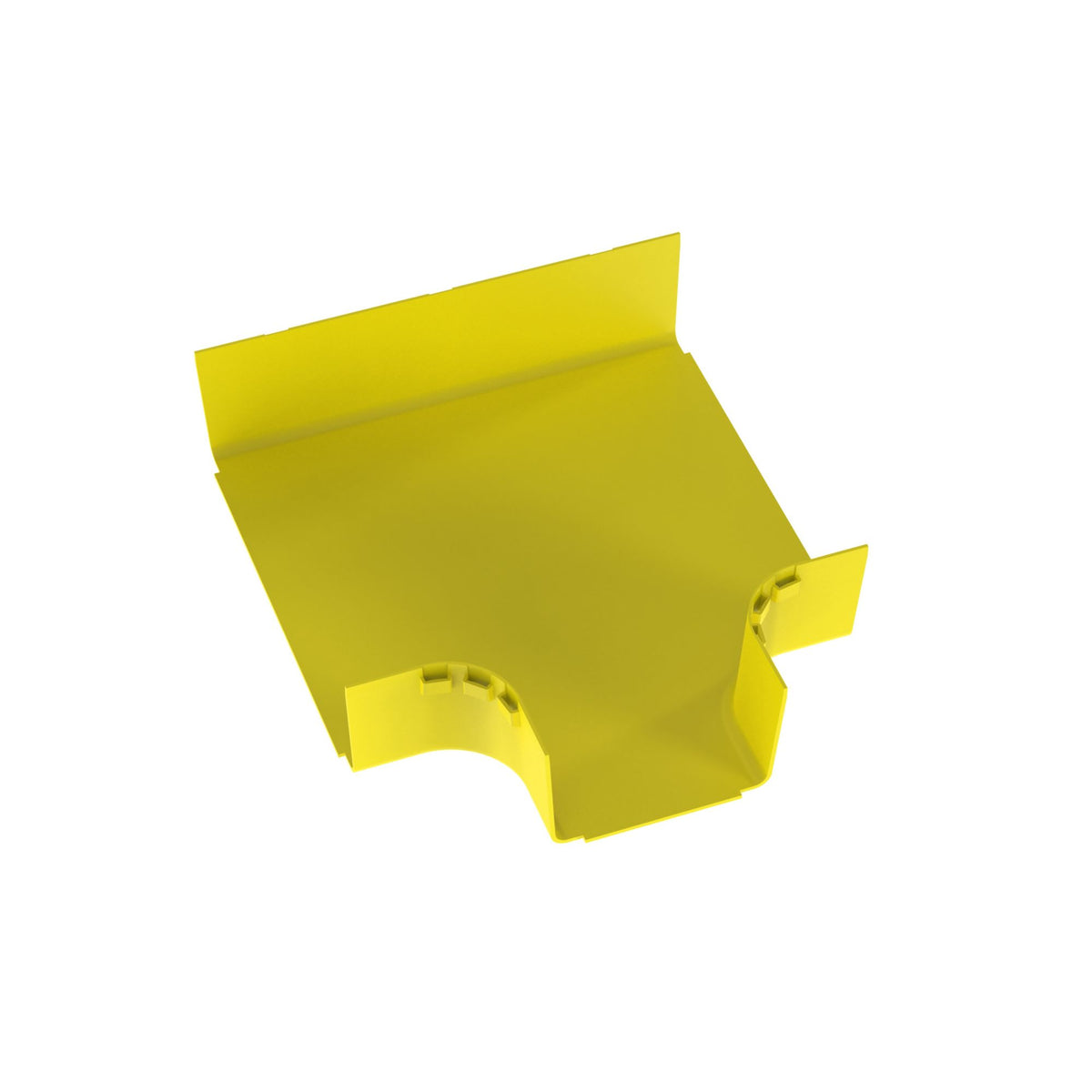

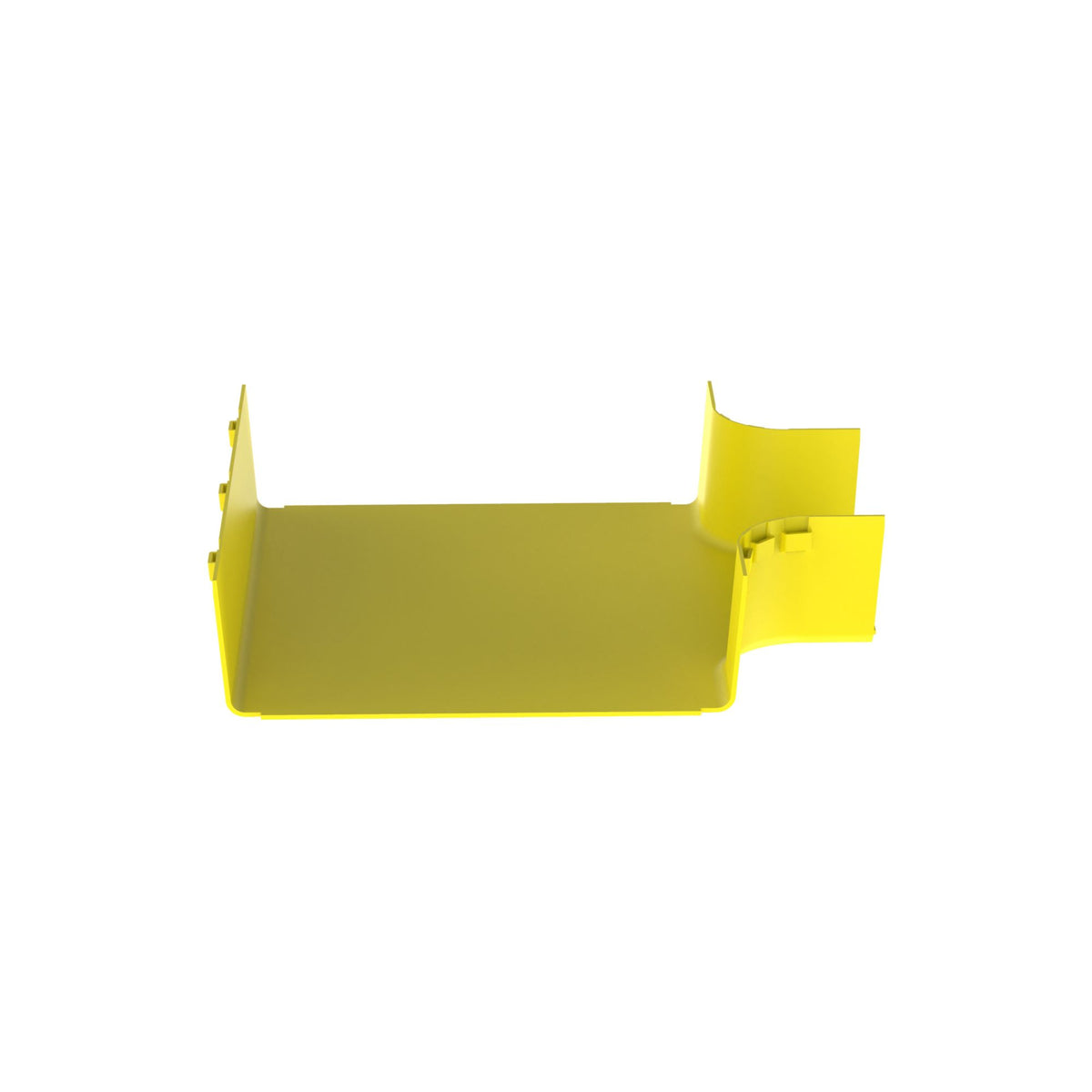

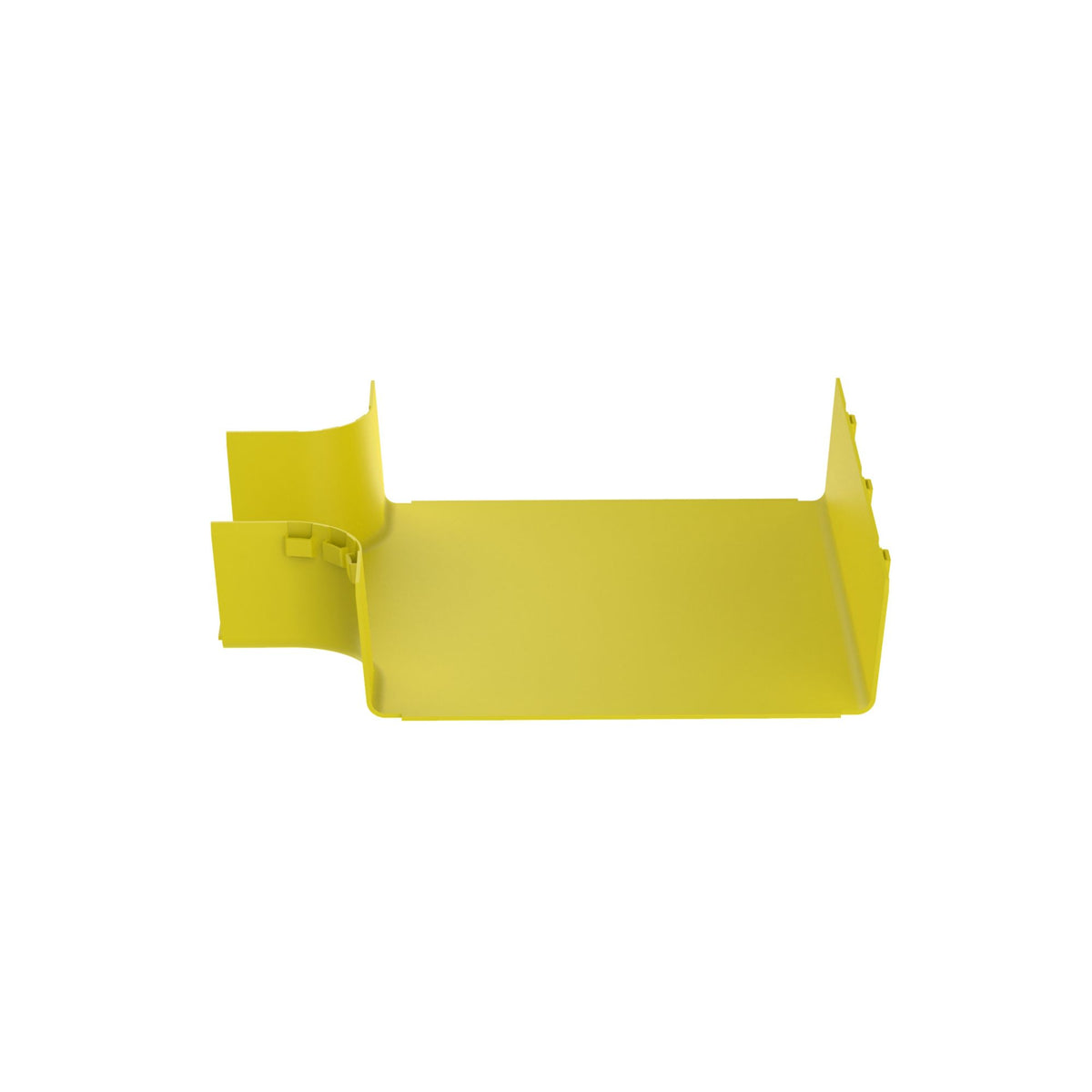

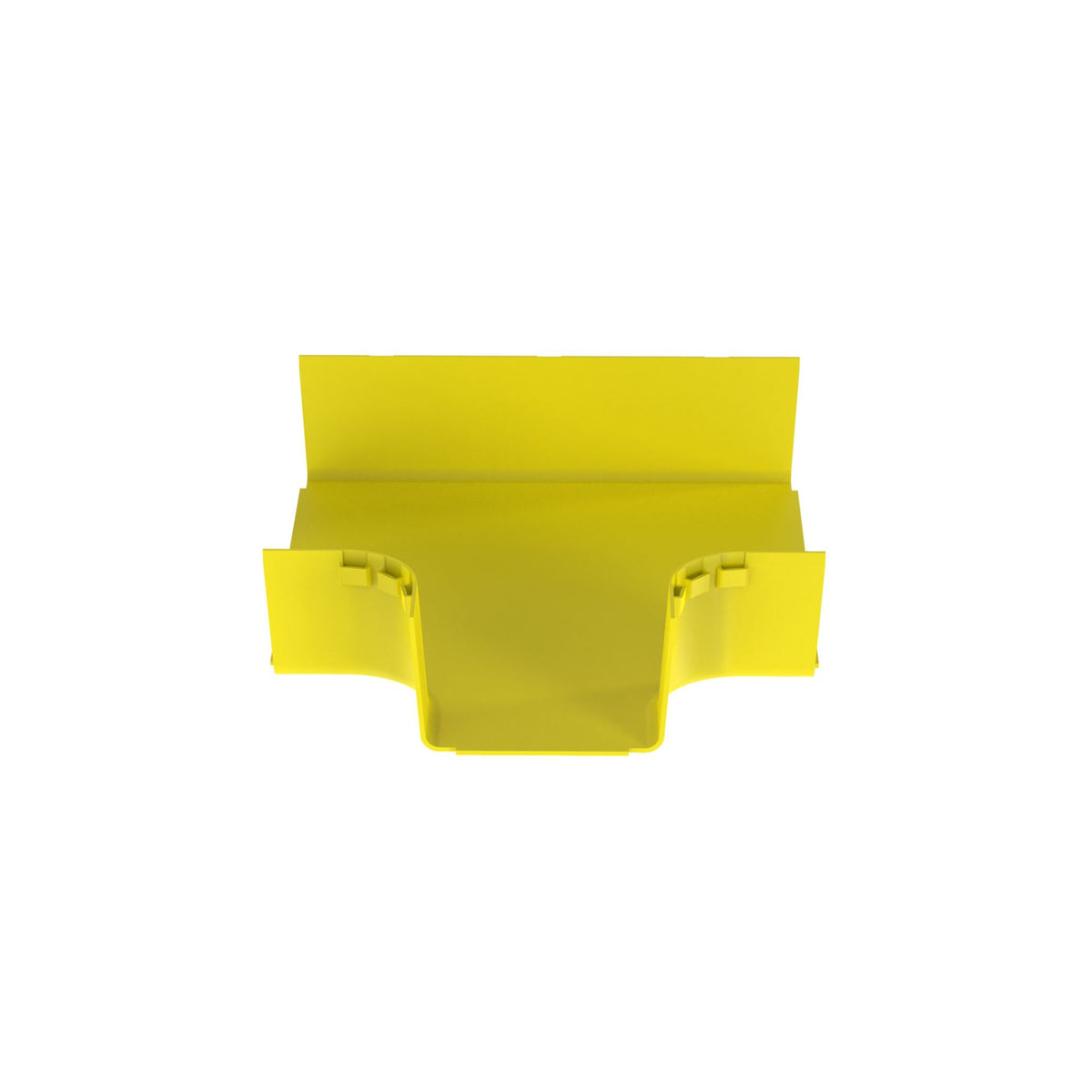

Panduit FRT12X4W6LYL | FiberRunner Horizontal Tee, 90°, 12x4, Yellow
Regular price
$304.35
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FRT12X4W6LYL | FiberRunner Horizontal Tee, 90°, 12x4, Yellow
Regular price
$304.35
Unit price
Description
Description
Panduit FRT12X4W6LYL | FiberRunner Horizontal Tee, 90°, 12x4, Yellow
The FiberRunner 12x4 Horizontal Tee creates a 90° horizontal branch with a 6x4 exit from straight horizontal run.
Panduit FRT12X4W6LYL Fiberrunner Horiz Tee Fitting12"x4" Yellow Lszh With 6"exits Rohs Lszh
Specifications
Specifications
Panduit - FRT12X4W6LYL - Product Categories
- Wire Routing, Management & Protection
- Fiber Routing Bends, Crosses, Tees & End Caps
Panduit - FRT12X4W6LYL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FRT12X4W6LYL |
| Item Description | FiberRunner Horizontal Tee, 90°, 12x4, Yellow |
| Application | Data Centers and Telco Central Offices |
| Product Type | Tee Fitting |
| Sub Brand | FiberRunner |
| Bend Radius (In.) | 2 |
| Bend Radius (mm) | 50.8 |
| Channel Material | PC |
| Color | Yellow |
| Fitting Type | Horizontal Tee |
| Fitting Material | PC/ABS |
| For Use With | 12x4 FiberRunner System |
| Material | PC/ABS |
| Overall Height (In.) | 4.22 |
| Overall Height (mm) | 107.2 |
| Overall Length (In.) | 17.61 |
| Overall Length (mm) | 447.3 |
| Overall Width (In.) | 14.5 |
| Overall Width (mm) | 368.3 |
| Standards Met | RoHS Compliant, UL Listed to 2024 Optical Fiber Cable Routing Assemblies Compliant with the applicable tests in Telcordia GR-63-CORE Network Equipment Building Systems Level 3 |
| System Dimensions | 12x4 |
| Channel | SINGLE |
| Components | FITTINGS |
| Type | NON-METALLIC |
| UNSPSC Code | 39131709 |
Panduit - FRT12X4W6LYL - Package Information
| UPC | 61305676402 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 1.4160 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
Panduit - FRT12X4W6LYL - Videos
| Video 1 | Click to View |
|---|
