Panduit FRT4X4LBL | FIBERRUNNER HORIZONTAL TEE
Regular price
$176.73
Unit price
Brand: Panduit
|
SKU:
10142754
Regular price
$176.73
Unit price
Description
Description

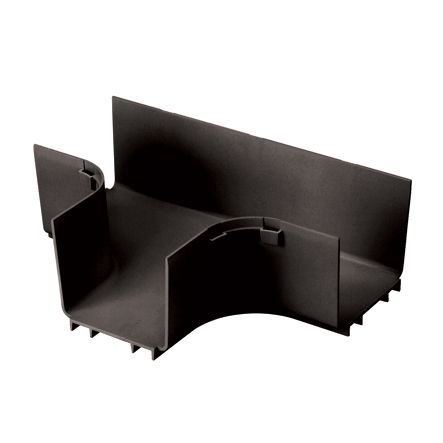

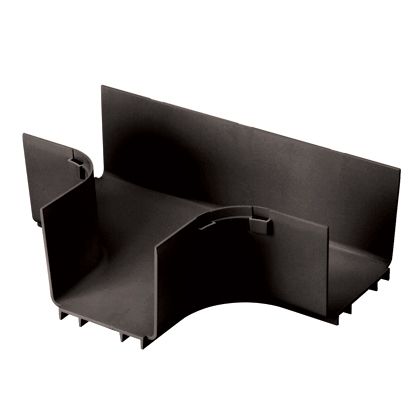

Panduit FRT4X4LBL | FIBERRUNNER HORIZONTAL TEE
The FiberRunner 4x4 Horizontal Tee creates a 90° horizontal branch from a straight horizontal run. The horizontal tee provides versatility due to multiple spillout options that include spill-over fittings and the vertical tee which accepts a three-sided trumpet, transition to corrugated tubing and the FiberRunner System.
Panduit FRT4X4LBL Fiberrunner Horiz Tee Fitting4x4 System Coupler Require dabs Black Rohs Lszh
Specifications
Specifications
Panduit - FRT4X4LBL - Product Categories
- Wire Routing, Management & Protection
- Fiber Routing Bends, Crosses, Tees & End Caps
Panduit - FRT4X4LBL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FRT4X4LBL |
| Item Description | FIBERRUNNER HORIZONTAL TEE |
| Application | Data Centers and Telco Central Offices |
| Product Type | Tee Fitting |
| Sub Brand | FiberRunner |
| Bend Radius (In.) | 2 |
| Bend Radius (mm) | 50.8 |
| Color | Black |
| For Use With | 4x4 FiberRunner System |
| Material | PC/ABS |
| Overall Height (In.) | 4.22 |
| Overall Height (mm) | 107.2 |
| Overall Length (In.) | 9.22 |
| Overall Length (mm) | 234.2 |
| Overall Width (In.) | 12.95 |
| Overall Width (mm) | 328.9 |
| Standards Met | RoHS Compliant, UL Listed to 2024A Optical Fiber Cable Routing Assemblies Compliant with the applicable tests in Telcordia GR-63-CORE Network Equipment Building Systems Level 3 |
| System Dimensions | 4x4 |
| Components | FITTINGS |
| Finish | BLACK |
| Material | PLASTIC |
| Type | CABLE ROUTING / WIRING DUCT |
| UNSPSC Code | 39131713 |
Panduit - FRT4X4LBL - Package Information
| UPC | 61305676817 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.4037 |
| Standard Ctn. Quantity | 5 |
| Standard Ctn. Volume (cf) | 2.0184 |
Panduit - FRT4X4LBL - Videos
| Video 1 | Click to View |
|---|
