Panduit FRT4X4LYL | FiberRunner Horizontal Tee, 90°, 4x4, Yellow
Regular price
$176.73
Unit price
Brand: Panduit
|
SKU:
10057526
Regular price
$176.73
Unit price
Description
Description

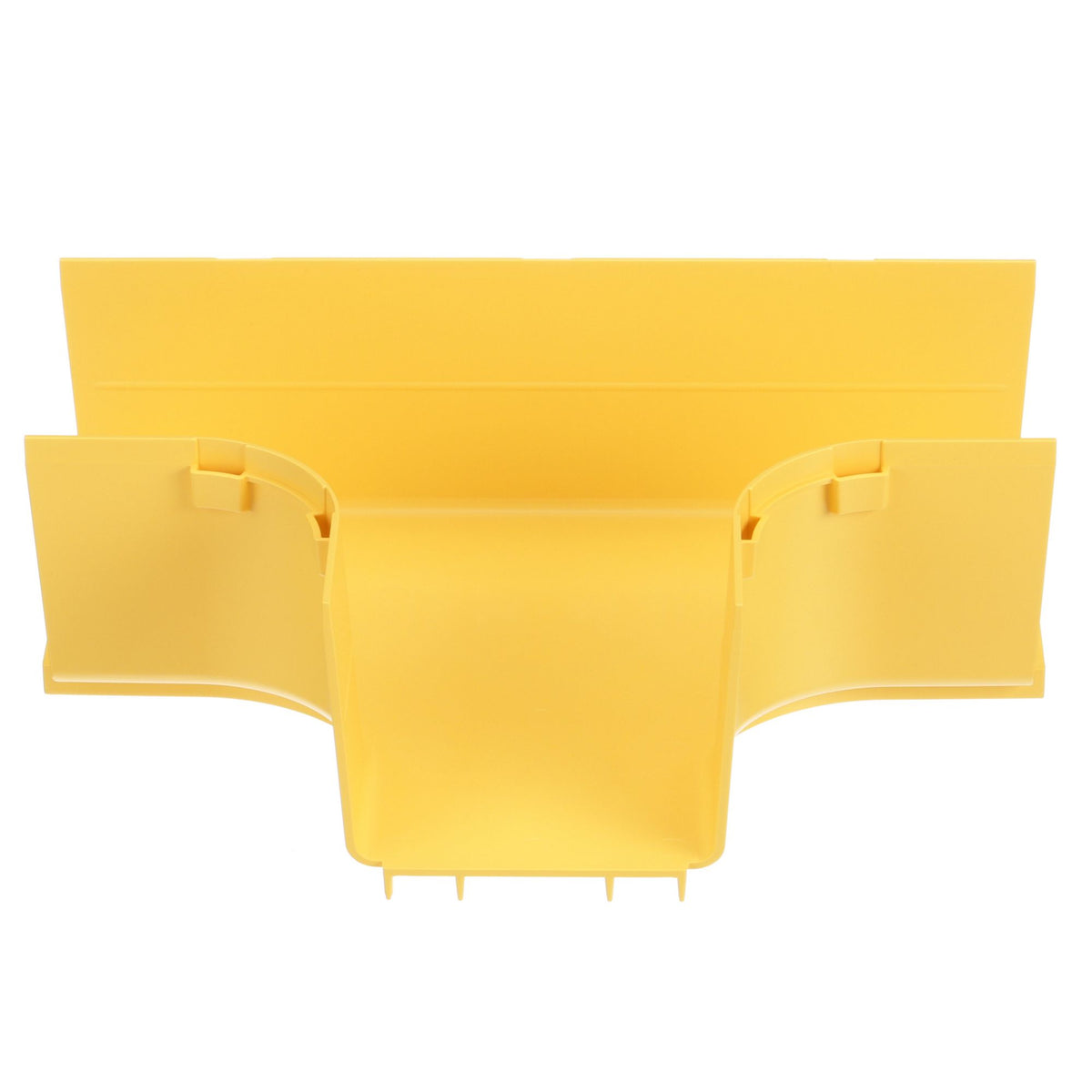

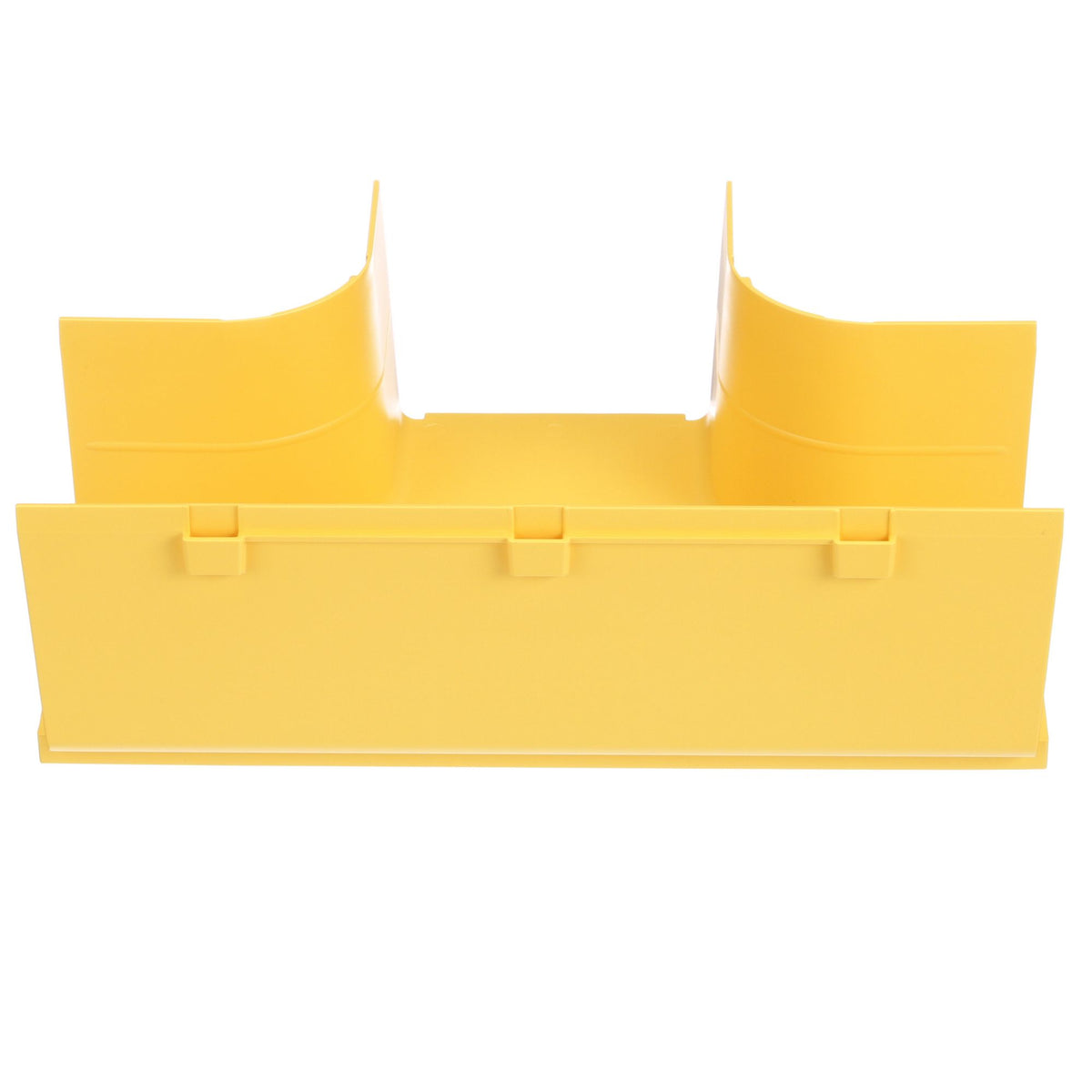

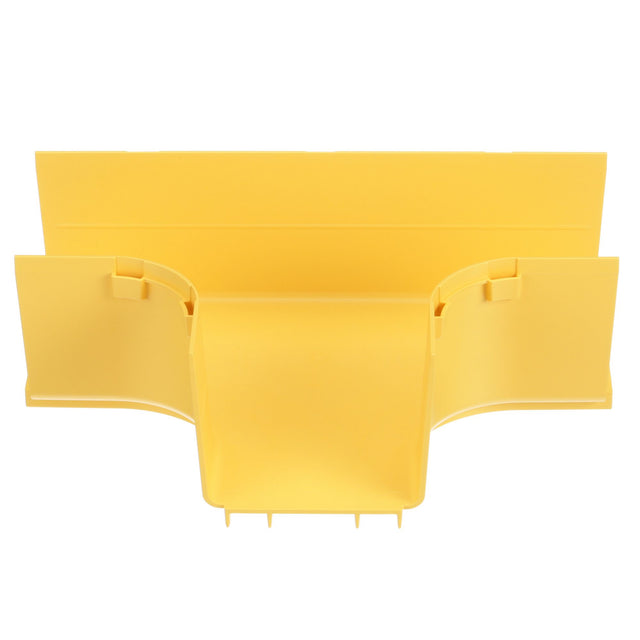

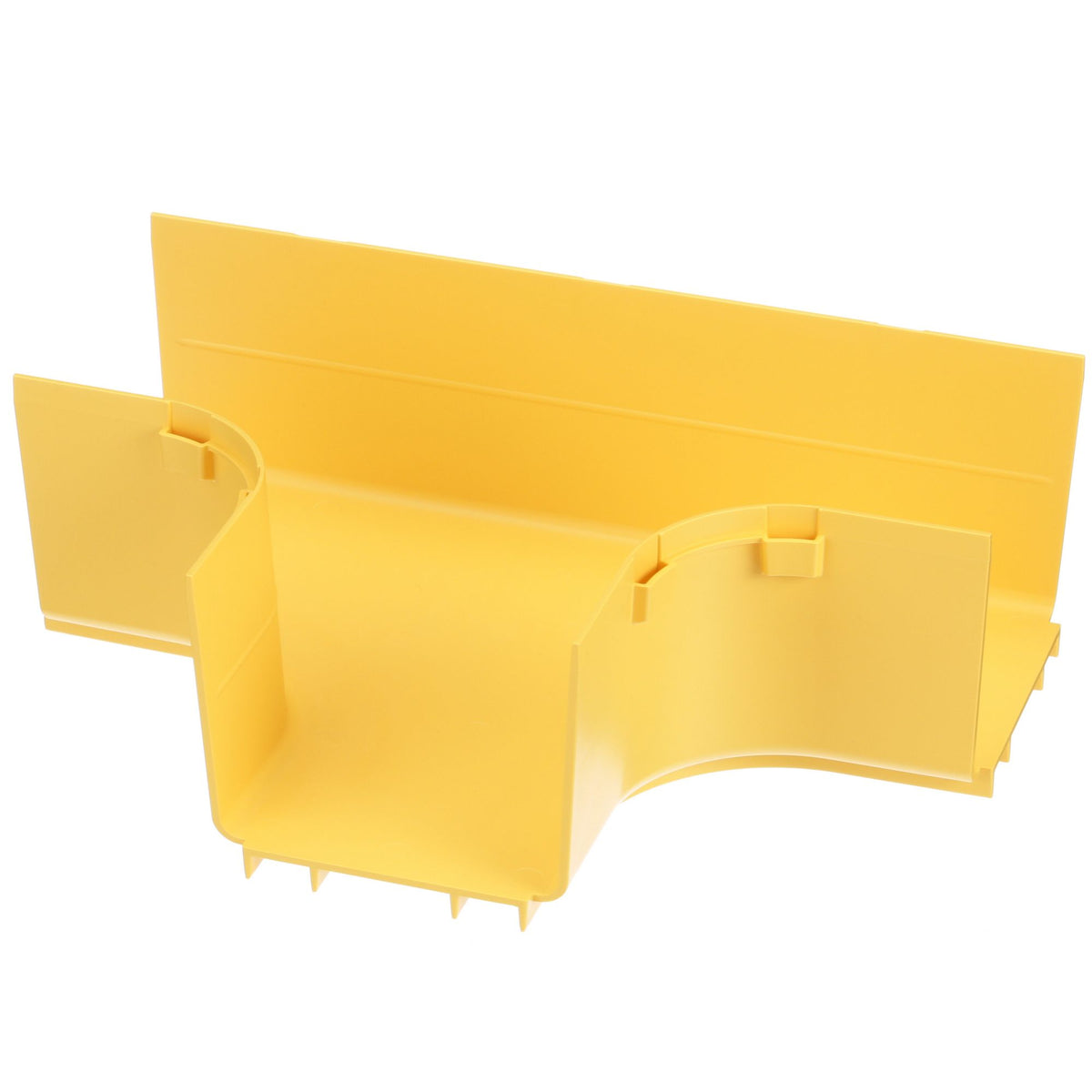

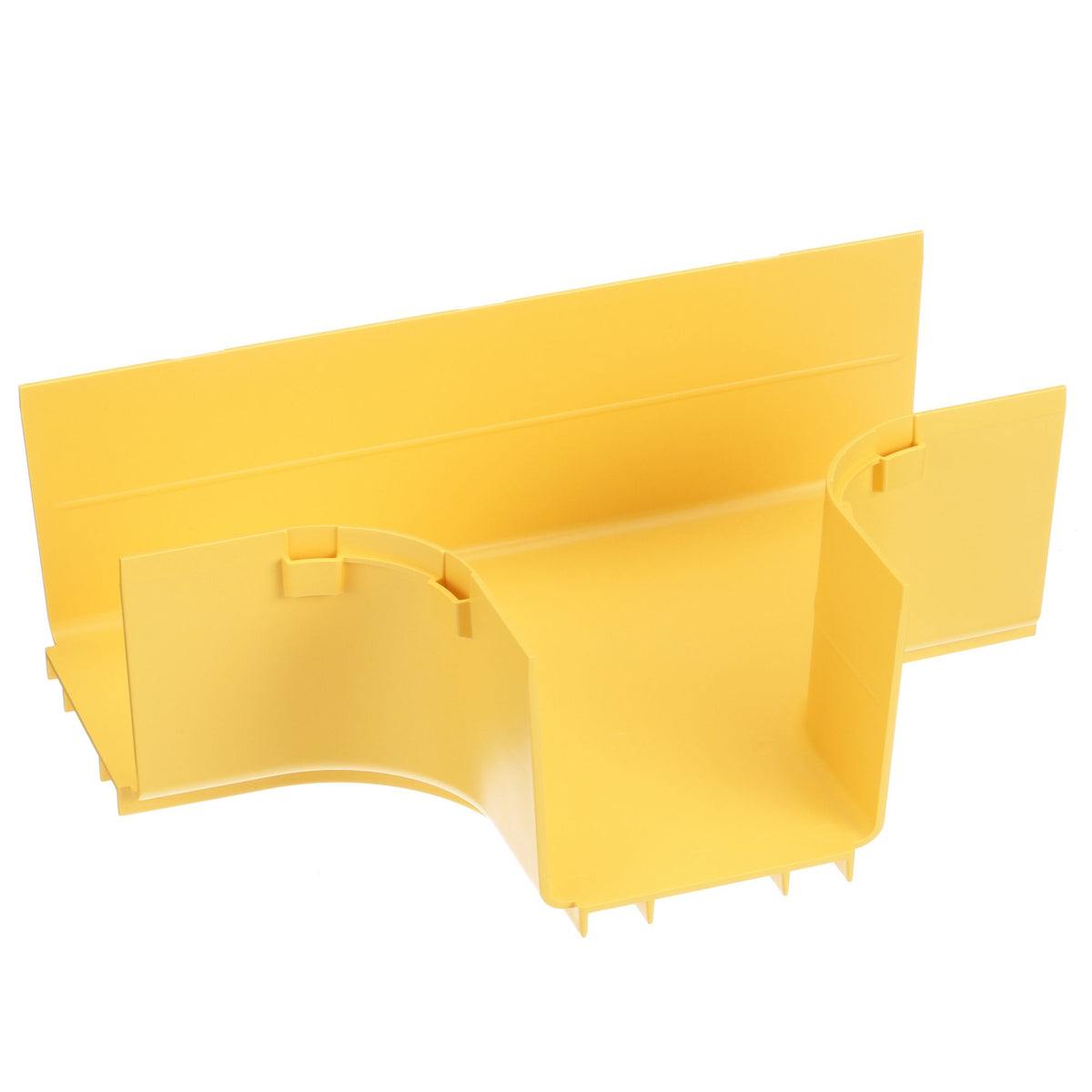

Panduit FRT4X4LYL | FiberRunner Horizontal Tee, 90°, 4x4, Yellow
The FiberRunner 4x4 Horizontal Tee creates a 90° horizontal branch from straight horizontal runs.
Panduit FRT4X4LYL Fitting, Horiz. Tee, 4"x4"(100mmx100mm), Yllszh
Specifications
Specifications
Panduit - FRT4X4LYL - Product Categories
- Wire Routing, Management & Protection
- Fiber Routing Bends, Crosses, Tees & End Caps
Panduit - FRT4X4LYL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FRT4X4LYL |
| Item Description | FiberRunner Horizontal Tee, 90°, 4x4, Yellow |
| Application | Data Centers and Telco Central Offices |
| Product Type | Tee Fitting |
| Sub Brand | FiberRunner |
| Bend Radius (In.) | 2 |
| Bend Radius (mm) | 50.8 |
| Channel Material | PC |
| Color | Yellow |
| Fitting Type | Horizontal Tee |
| Fitting Material | PC/ABS |
| For Use With | 4x4 FiberRunner System |
| Material | PC/ABS |
| Overall Height (In.) | 4.22 |
| Overall Height (mm) | 107.2 |
| Overall Length (In.) | 9.22 |
| Overall Length (mm) | 234.2 |
| Overall Width (In.) | 12.95 |
| Overall Width (mm) | 328.9 |
| Standards Met | RoHS Compliant, UL Listed to 2024 Optical Fiber Cable Routing Assemblies Compliant with the applicable tests in Telcordia GR-63-CORE Network Equipment Building Systems Level 3 |
| System Dimensions | 4x4 |
| Components | FITTINGS |
| Finish | YELLOW |
| Material | PLASTIC |
| Type | CABLE ROUTING / WIRING DUCT |
| UNSPSC Code | 39131712 |
Panduit - FRT4X4LYL - Package Information
| UPC | 61305676814 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.3914 |
| Standard Ctn. Quantity | 5 |
| Standard Ctn. Volume (cf) | 1.9571 |
Panduit - FRT4X4LYL - Videos
| Video 1 | Click to View |
|---|
