Brand: Panduit
|
SKU:
224973

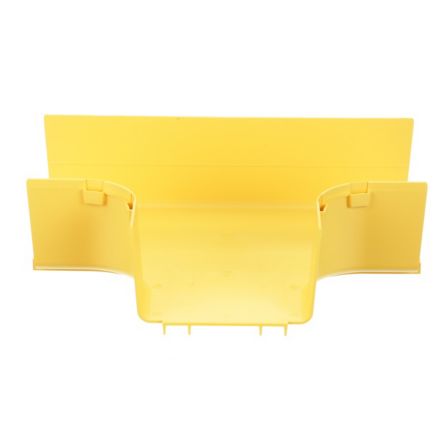

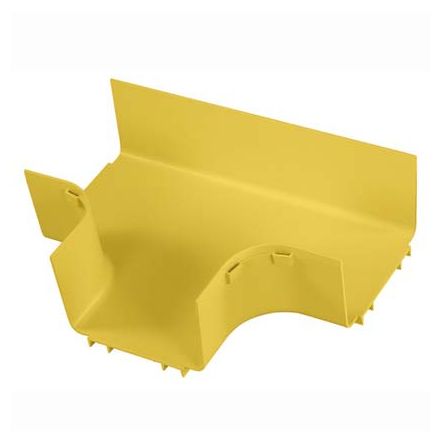

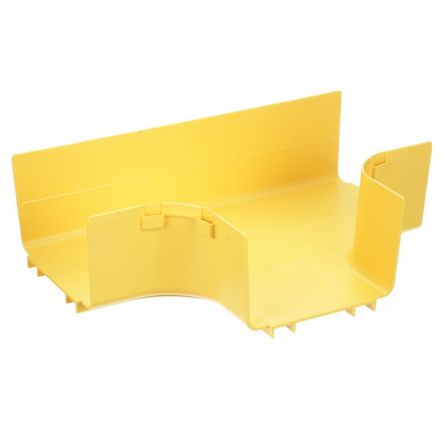

Panduit FRT6X4YL | FiberRunner Horizontal Tee, 6x4, Yellow
Regular price
$189.94
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FRT6X4YL | FiberRunner Horizontal Tee, 6x4, Yellow
Regular price
$189.94
Unit price
Description
Description
Panduit FRT6X4YL | FiberRunner Horizontal Tee, 6x4, Yellow
The FiberRunner 6x4 Horizontal Tee attaches to the 6x4 channel and/or fittings to create a 90° horizontal branch from a straight horizontal run.
Panduit - FRT6X4YL - Features
- Minimum 2"; (50.8mm) bend radius control fittings
- Protect against signal loss and performance degradation
- Assemble using FRBC QuikLock(TM) couplers
- Optional split covers snap onto each fitting
- Covers feature 3/4"; (19mm) gap to allow cable to be laid in
- For other standard colors replace suffix YL (Yellow) with OR (Orange) or BL (Black)
- Specification Description
- 6x4 Horizontal Tee Fitting
- Material: ABS
- Color: Yellow
- Dimension: 10.77 Inch Length x 14.5 Inch Width x 4.22 Inch Height (273.6 mm x 368.3 mm x 107.3 mm)
Specifications
Specifications
Panduit - FRT6X4YL - Product Categories
- Wire Routing, Management & Protection
- Fiber Routing Bends, Crosses, Tees & End Caps
Panduit - FRT6X4YL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FRT6X4YL |
| Item Description | FiberRunner Horizontal Tee, 6x4, Yellow |
| Application | Segregate, Route, and Protect Fiber Optic Cable and Copper Cabling. It is Suited for Data Center Applications where Cable is Routed from Distribution Areas to Equipment Cabinets or Racks. It is Used in Telco Central Offices to Route Fiber Optic Jumper Cables |
| Product Type | Tee Fitting |
| Sub Brand | FiberRunner |
| Bend Radius (In.) | 2 |
| Bend Radius (mm) | 50.8 |
| Channel Material | Rigid PVC |
| Color | Yellow |
| Fitting Type | Horizontal Tee |
| Fitting Material | ABS |
| For Use With | 4x4 |
| Material | ABS |
| Overall Height (In.) | 4.22 |
| Overall Height (mm) | 107.2 |
| Overall Length (In.) | 10.77 |
| Overall Length (mm) | 273.6 |
| Overall Width (In.) | 14.5 |
| Overall Width (mm) | 368.3 |
| Standards Met | RoHS Compliant, UL Listed to 2024A Optical Fiber Cable Routing Assemblies Compliant with the applicable tests in Telcordia GR-63-CORE Network Equipment Building Systems Level 3 |
| System Dimensions | 6x4 |
Panduit - FRT6X4YL - Package Information
| UPC | 07498378415 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.6822 |
| Standard. Ctn. Quantity | 5 |
| Standard. Ctn. Volume (cf) | 3.4111 |
Panduit - FRT6X4YL - Videos
| Video 1 | Click to View |
|---|
