Brand: Panduit
|
SKU:
PAN-FRTBWG12BL

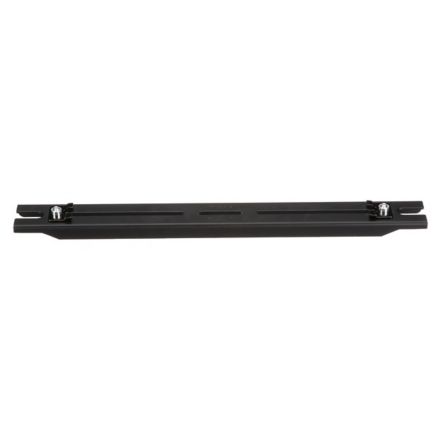

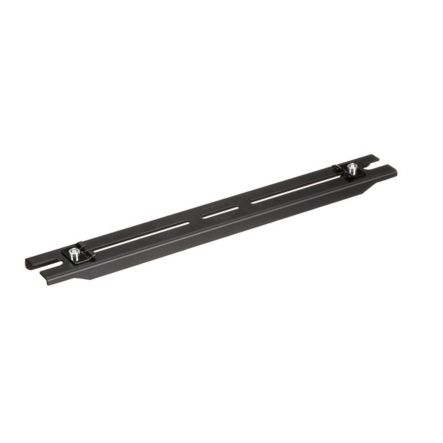

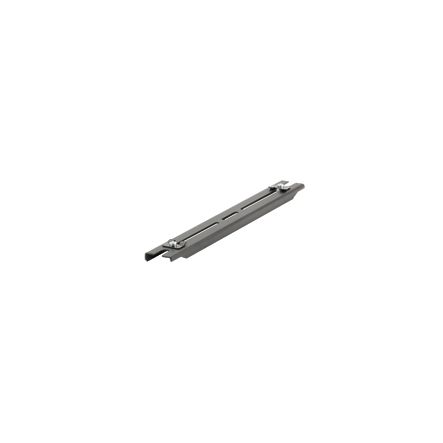

Panduit FRTBWG12BL FiberRunner Threaded Rod Trapeze Bracket For Wyr-Grid 12"; Width, Black
Regular price
$75.71
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FRTBWG12BL FiberRunner Threaded Rod Trapeze Bracket For Wyr...
Regular price
$75.71
Unit price
Brand: Panduit
|
SKU:
PAN-FRTBWG12BL
Regular price
$75.71
Unit price
Description
Description
Panduit FRTBWG12BL | FIBERRUNNER THREADED ROD TRAPEZE BRACKET
The FiberRunner QuikLock Threaded Rod Trapeze Bracket can be used to support a FiberRunner 4x4 or 6x4 Channel. It can also be used above or below the 12 inch Wyr-Grid Pathway using the same 0.5 inch (12.7mm) threaded rod used to support the bracket. The hardware for attachment is sold separately.
Specifications
Specifications
Panduit - FRTBWG12BL - Product Categories
- Wire Routing, Management & Protection
- Fiber Routing Mounting Brackets & Hardware
Panduit - FRTBWG12BL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FRTBWG12BL |
| Item Description | FIBERRUNNER THREADED ROD TRAPEZE BRACKET |
| Application | The Wyr-Grid Overhead Cable Tray System is Designed to Route and Manage Copper Data Cables, Fiber Optic, or Power Cables Within Data Centers, Connected Buildings, and Industrial Automation Applications. |
| Product Type | Trapeze |
| Sub Brand | FiberRunner |
| Color | Black |
| For Use With | FiberRunner 4x4 and 6x4 Channel, WGTB12BL |
| Includes | (1) FiberRunner Trapeze Bracket for WYR -GRID 12 inch Pathway, (2) FiberRunner Trapeze Bracket WYR -Grid Clip Assembly. |
| Material | Pre-Galvanized Steel |
| Number of Pieces | 3 |
| Overall Height (In.) | 0.62 |
| Overall Height (mm) | 15.7 |
| Overall Length (In.) | 16.5 |
| Overall Length (mm) | 419.1 |
| Overall Width (In.) | 1.94 |
| Overall Width (mm) | 49.3 |
| Standards Met | UL Listed to 2024 Optical Fiber Cable Routing Assemblies Compliant with the Applicable Tests in Telcordia Gr-63-Core Network Equipment Building Systems Level 3, LP-CSISPEC-FR |
| System Dimensions | 4x4, 6x4 |
| Compatible Threaded Rod Size (In.) | 0.5 |
| Compatible Threaded Rod Size (mm) | 12 |
| Series Type | Threaded Rod Trapeze Bracket |
| Part Features | Innovative features provide quick, safe, and easy assembly for reduced installation costs and faster deployment |
Panduit - FRTBWG12BL - Package Information
| UPC | 07498333216 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0196 |
| Standard. Ctn. Quantity | 10 |
| Standard. Ctn. Volume (cf) | 0.1957 |
Panduit - FRTBWG12BL - Videos
| Video 1 | Click to View |
|---|
