Brand: Panduit
|
SKU:
10142764

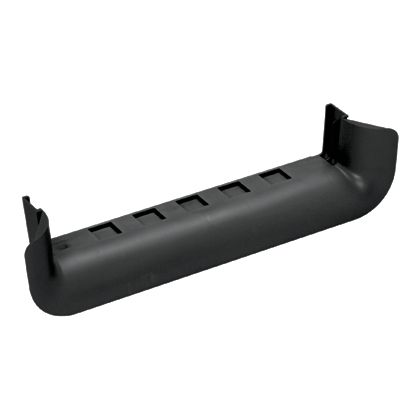

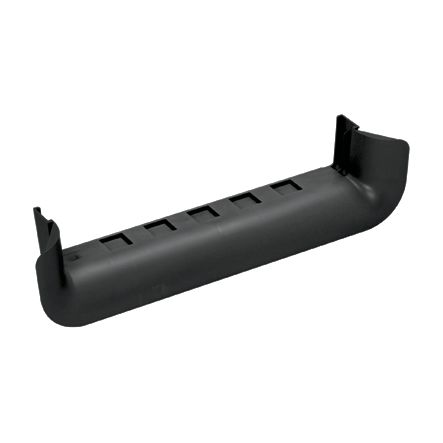

Panduit FRTR24X4LBL | FIBERRUNNER TRUMPET
Regular price
$305.15
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FRTR24X4LBL | FIBERRUNNER TRUMPET
Regular price
$305.15
Unit price
Description
Description
Panduit FRTR24X4LBL | FIBERRUNNER TRUMPET
The FiberRunner Bend Radius Control Trumpet is used to limit the bend radius of the cable to 3 inches (76.2mm) when exiting from the 24x4 channel or a 24x4 horizontal tee.
Panduit FRTR24X4LBL Fiberrunner 3 Side Brc Trumpetspillout 24x4 System Limits to 2" Blk Rohs Lszh
Specifications
Specifications
Panduit - FRTR24X4LBL - Product Categories
- Wire Routing, Management & Protection
- Fiber Routing Spillouts
Panduit - FRTR24X4LBL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FRTR24X4LBL |
| Item Description | FIBERRUNNER TRUMPET |
| Application | Data Centers and Telco Central Offices |
| Product Type | Trumpet |
| Sub Brand | FiberRunner |
| Bend Radius (In.) | 3 |
| Bend Radius (mm) | 76.2 |
| For Use With | 24x4 System |
| Material | PC/ABS |
| Overall Height (In.) | 7 |
| Overall Height (mm) | 177.8 |
| Overall Length (In.) | 5.28 |
| Overall Length (mm) | 134.1 |
| Overall Width (In.) | 30.34 |
| Overall Width (mm) | 770.6 |
| Standards Met | RoHS Compliant, UL Listed to 2024 Optical Fiber Cable Routing Assemblies Compliant with the applicable tests in Telcordia GR-63-CORE Network Equipment Building Systems Level 3 |
| System Dimensions | 24x4 |
| Color | Black |
| Components | SPILLOUTS / DOWNSPOUTS |
| Finish | BLACK |
| Material | PLASTIC |
| Type | CABLE ROUTING / WIRING DUCT |
| UNSPSC Code | 39131713 |
Panduit - FRTR24X4LBL - Package Information
| UPC | 61305676826 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.7132 |
| Standard Ctn. Quantity | 5 |
| Standard Ctn. Volume (cf) | 3.5660 |
Panduit - FRTR24X4LBL - Videos
| Video 1 | Click to View |
|---|
